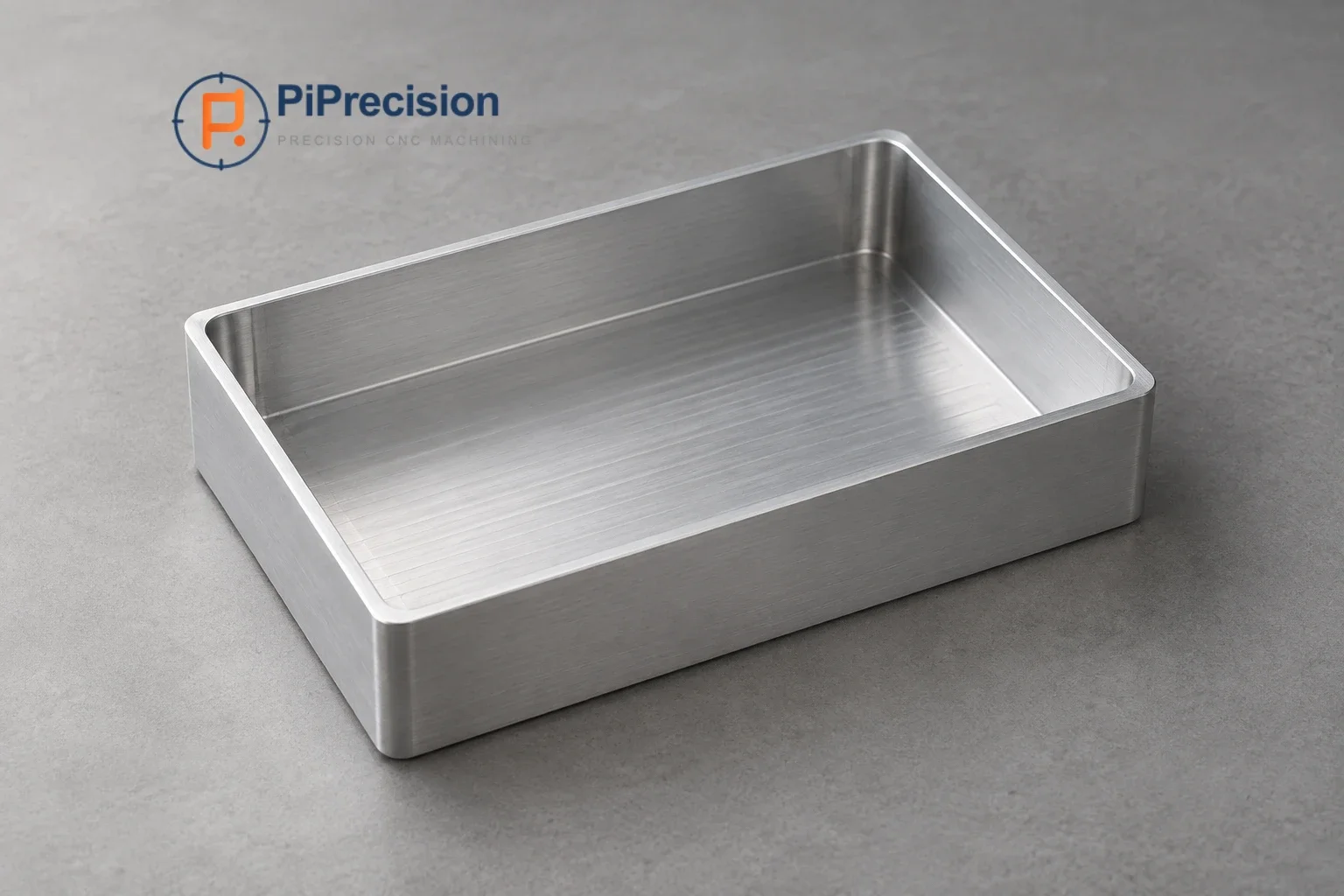

Thin wall CNC machining has no single minimum thickness that works for every part. Material, unsupported wall height, surrounding geometry, workholding, and the required final dimensions all affect feasibility.
Published guidelines can help you start a design. They cannot tell you whether a tall partition, a short enclosure wall, and a thin cylindrical sleeve will behave the same way.
The practical question is: will this feature stay within its requirements through cutting, unclamping, finishing, and inspection? Here is how to approach that review.
What is the minimum wall thickness for CNC machining?
Protolabs Network recommends 0.8 mm for metal walls and 1.5 mm for plastic walls in its general CNC design guide. It also lists thinner features as feasible in some circumstances. Those figures describe design guidance, not universal machining limits or PiPrecision guarantees. Protolabs Network CNC guide
A useful way to apply such guidance is:
Design situation | How to use a thickness guideline |
|---|---|
Short wall with support from adjoining features | Use it as an initial reference, then check local geometry and tolerances |
Tall, unsupported partition | Review stiffness and tool access before relying on the number |
Thin cylindrical sleeve | Review diameter, length, clamping, and required roundness together |
Plastic housing | Include heat, material condition, and inspection environment |
Thin floor beneath a deep pocket | Review floor span and support separately from the sidewalls |
Protolabs also warns that features around 0.51 mm or thinner may flex, warp, or break. The useful lesson is to request a geometry-specific review as the wall becomes more demanding. Protolabs machining toolkit
A wall that can be cut is not automatically a wall that can be produced repeatedly at the required tolerance and cost.
Why thin walls move during and after machining
Different causes of deformation need different solutions. A slower finishing pass will not necessarily solve distortion caused by clamping or internal stress.
Cutting forces and vibration
The cutter pushes on the workpiece as it removes material. A flexible wall can bend away, leaving uneven material behind. Vibration can also produce chatter: repeated marks associated with an unstable cut.
The tool can deflect too, especially when it needs a long reach. Harvey Performance's thin-wall milling guidance emphasizes tool rigidity and retaining support during material removal. Harvey Performance thin-wall milling guide
A smooth-looking surface alone does not prove that the wall is straight or uniformly thick.
Clamping and springback
A fixture must hold the part securely, but clamping can deform a flexible feature. After release, the feature can spring back toward its unloaded shape.
Consider a thin sleeve held firmly around its outside diameter. Its bore may appear acceptable while restrained, then change shape when released. The inspection plan should represent the condition that matters in the actual assembly.
Residual stress and temperature
Residual stress is stress already present inside the material without an external load. Removing material can redistribute it and cause distortion. Research on milled aluminum structures identifies both existing and machining-induced residual stresses as contributors to shape change. Research on thin-walled aluminum distortion
Plastics also require attention to processing history. Ensinger explains how internal stress can cause dimensional movement during or after machining, and why appropriate annealing can help. Annealing is a controlled thermal treatment; it must suit the material and application. Ensinger stress-relief guidance
Temperature adds another variable. Agree on the condition in which critical dimensions will be accepted rather than comparing a warm part with one measured after cooling.
Wall height and support matter as much as thickness
Imagine two hypothetical aluminum features with the same 1 mm wall thickness. One is a short wall around a shallow tray. The other is a tall partition with open space on both sides.
The partition generally presents a greater deflection challenge. The adjoining walls of the tray may provide support that the isolated feature lacks. Neither example establishes a machining limit; it shows why thickness alone is insufficient.
Ask these questions during design review:
- How tall and long is the unsupported portion?
- Is the wall connected to a base only, or supported along other edges?
- Will the surrounding material still support it during the final cut?
- Can the cutter reach the surface without excessive overhang?
- Where will the part be held as the feature becomes thinner?
Protolabs specifically cautions that its minimum feature thickness and maximum feature depth cannot simply be combined into one feasible design. Protolabs wall and feature guidance
Avoid treating any height-to-thickness ratio as a universal pass/fail test.
Choose material and stock condition together
Material selection should start with the part's function, then include machining behavior. Do not change alloy solely because a thin wall is difficult to hold.
For aluminum, higher strength does not automatically mean much greater stiffness. Switching from 6061 to 7075 may therefore leave a deflection problem unresolved. The existing 6061 vs 7075 guide explains the broader selection tradeoffs.
Discuss the grade, temper, stock form, and amount of material to be removed. Stress-relieved stock may help a suitable application, but it does not eliminate the need for a stable machining process.
For plastics, identify the exact polymer and grade. Reinforcement, moisture response, and thermal behavior can change what constitutes a reasonable design. Use the plastic CNC machining guide for the wider material comparison.
Design changes that make thin walls easier to machine
Add thickness where it helps
If the wall does not need to be uniformly thin, consider increasing thickness near its base or around mounting features. Preserve the required clearance while giving the feature more support.
For an electronics enclosure, a locally thicker mounting area may be acceptable even when the outer wall must remain lightweight. Confirm how the change affects the assembly before accepting it.
Use supports that the cutter can reach
Ribs or connections to neighboring walls can improve support, but they also create new corners and tool-access requirements. Give the supplier room for an appropriate cutter and practical internal radii.
Do not apply injection-molding rib proportions automatically to a machined billet part. CNC design must account for the material left behind and the tools needed to remove the surrounding stock.
A temporary machining support may also be possible. Ask how it will be removed and whether its removal changes the final geometry or inspection sequence.
Keep thin floors in the review
A pocket can have acceptable sidewalls and still leave a large, flexible floor. Include the floor thickness, unsupported span, and flatness requirement in the DFM discussion.
For a shallow instrument tray, reducing the pocket depth slightly may leave a more practical floor without affecting the electronics layout. Evaluate this alongside wall changes rather than assuming that all deformation comes from the sides.
For broader rules on corners, access, and setups, see DFM for CNC machined parts.
How a machining plan controls deformation
The supplier may adjust the sequence so that material supports the wall for as long as practical. Roughing removes most of the stock; finishing brings the remaining surfaces to their final requirements.
Depending on the geometry, options can include staged cuts, retaining supporting stock, suitable tool engagement, and a fixture designed around the final shape. Harvey Performance describes supporting thin walls and selecting a cutting strategy according to the feature. Harvey Performance guidance
There is no universal feed, speed, or cut direction for all thin walls. These choices depend on the material, tool, machine, fixture, and evolving geometry.
For the buyer, the useful question is: how will the proposed process keep the part stable as support is removed? A credible answer should connect the process to your specific features.
Specify tolerances and inspection conditions clearly
Separate wall thickness from the other requirements that control function. A wall may need a minimum thickness for strength, a position requirement for clearance, and a flatness requirement for a mating surface.
Requirement | Clarification to put on the drawing or inspection plan |
|---|---|
Wall thickness | Nominal value and permitted variation, including any functional minimum |
Wall location | Reference datums and the surfaces that control assembly |
Flatness or profile | The exact feature and acceptance requirement |
Inspection state | Free state or a defined restrained condition |
Finishing | Whether requirements apply before or after finishing |
Flexible surfaces | A measurement method that does not distort the feature |
Free state means the part is assessed without restraint that forces it into shape. If the assembly intentionally restrains it, define an appropriate inspection setup rather than leaving that decision implicit.
For example, a cover that seals against another housing may need an agreed fixture that represents the assembly. A standalone mounting plate may instead require acceptance after unclamping. State which condition controls.
Do not infer thin wall machining tolerances from a machine's positioning specification. The CNC milling accuracy guide explains why the complete process determines the result.
What drives thin-wall machining cost?
Removing more material to make a lighter part can increase manufacturing effort. The quotation may need to account for additional machining stages, dedicated support, careful handling, and more inspection.
A useful cost review compares two designs that satisfy the same functional requirement. For instance, ask whether a slightly thicker noncritical wall would simplify workholding or reduce inspection effort.
Avoid assuming a fixed saving from changing thickness. Quantity, geometry, material, finish, and acceptance requirements all influence the result.
What to send for a thin-wall DFM review
Provide the 3D model and a controlled drawing, then identify:
- The exact material grade, condition, and required finish.
- Thin walls and floors that are functionally necessary.
- Available space for thicker sections, radii, or support features.
- Critical fits, datums, and inspection conditions.
- Prototype and production quantities.
- Any mating-part details needed to understand clearance or restraint.
Mark what can change. A supplier can give more useful feedback when it knows that a wall's height is fixed but its thickness can increase locally.
Frequently asked questions
Can aluminum walls be CNC machined below 0.8 mm?
Yes, some geometries and processes can go thinner. The required height, support, tolerance, and production quantity still need review. A published minimum is not a guarantee for your design.
Does 5-axis machining solve thin-wall deformation?
Not by itself. Better access or fewer setups may help, but flexible material still responds to cutting and clamping forces. Review the workholding and process sequence as well as the machine type.
Should every thin wall have the same tight tolerance?
No. Apply requirements according to function. Identify the faces and dimensions that control fit, clearance, sealing, or minimum material thickness.
Is sheet metal a better choice for thin enclosures?
Sometimes. A mostly uniform enclosure with accessible bends may suit sheet metal, while integral pockets or precision machined features may favor CNC machining. Compare the complete design and assembly, not wall thickness alone.
Review the wall before finalizing the drawing
A good thin-wall design balances function with a realistic manufacturing and inspection plan. Start with published thickness guidance, then review height, support, stock condition, and how the part will be accepted after machining.
