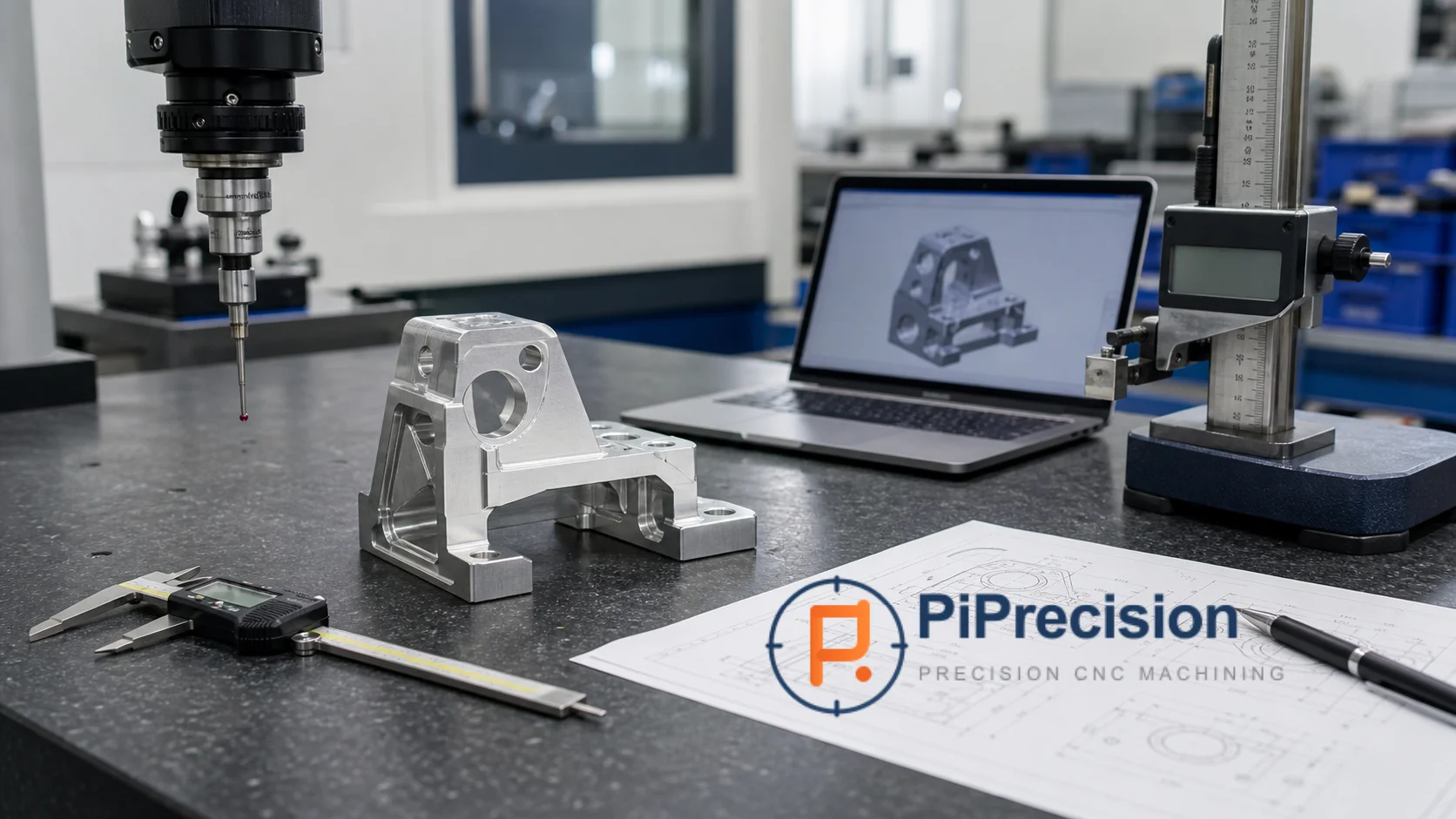

Good CNC part design is not only about making a model that looks right on screen. It is about making a part that can be machined, inspected, finished, assembled, and repeated without unnecessary cost or risk.
That is where DFM comes in.
DFM, or design for manufacturability, helps engineers turn a functional design into a manufacturable CNC part. It is especially useful when a part has tight tolerances, complex pockets, thin walls, precision holes, cosmetic surfaces, or production volume after the prototype stage.
The goal is not to weaken the design. The goal is to keep the function while removing machining problems that do not add value.
What DFM means for CNC machining
For CNC machined parts, DFM usually comes down to four practical questions:
- Can a cutting tool reach the feature?
- Can the part be held securely while that feature is machined?
- Can the required dimension be inspected reliably?
- Does the requirement justify the machining time and cost?
If the answer is unclear, the part may still be machinable, but it may need extra setups, special tools, slower cutting, more inspection, or a supplier clarification before production.
That is why DFM should happen before quoting whenever possible. A small design change early can be much cheaper than reworking parts after machining.
Start with the function of the part
The best DFM work starts with function, not cost cutting.
Before changing any geometry, identify what the part must do. Does it locate another component? Carry load? Seal against a gasket? Hold a bearing? Slide against a mating part? Need a cosmetic front face?
Once the function is clear, separate features into two groups:
- Critical features: Dimensions, surfaces, holes, threads, or relationships that affect fit, motion, sealing, safety, or performance.
- Non-critical features: Areas where normal machining variation will not affect how the part works.
This matters because not every feature deserves the same tolerance or inspection effort. A bearing bore may need a tight tolerance and careful inspection. A clearance pocket on the back of a bracket may not.
Good DFM protects the critical features and relaxes the rest.

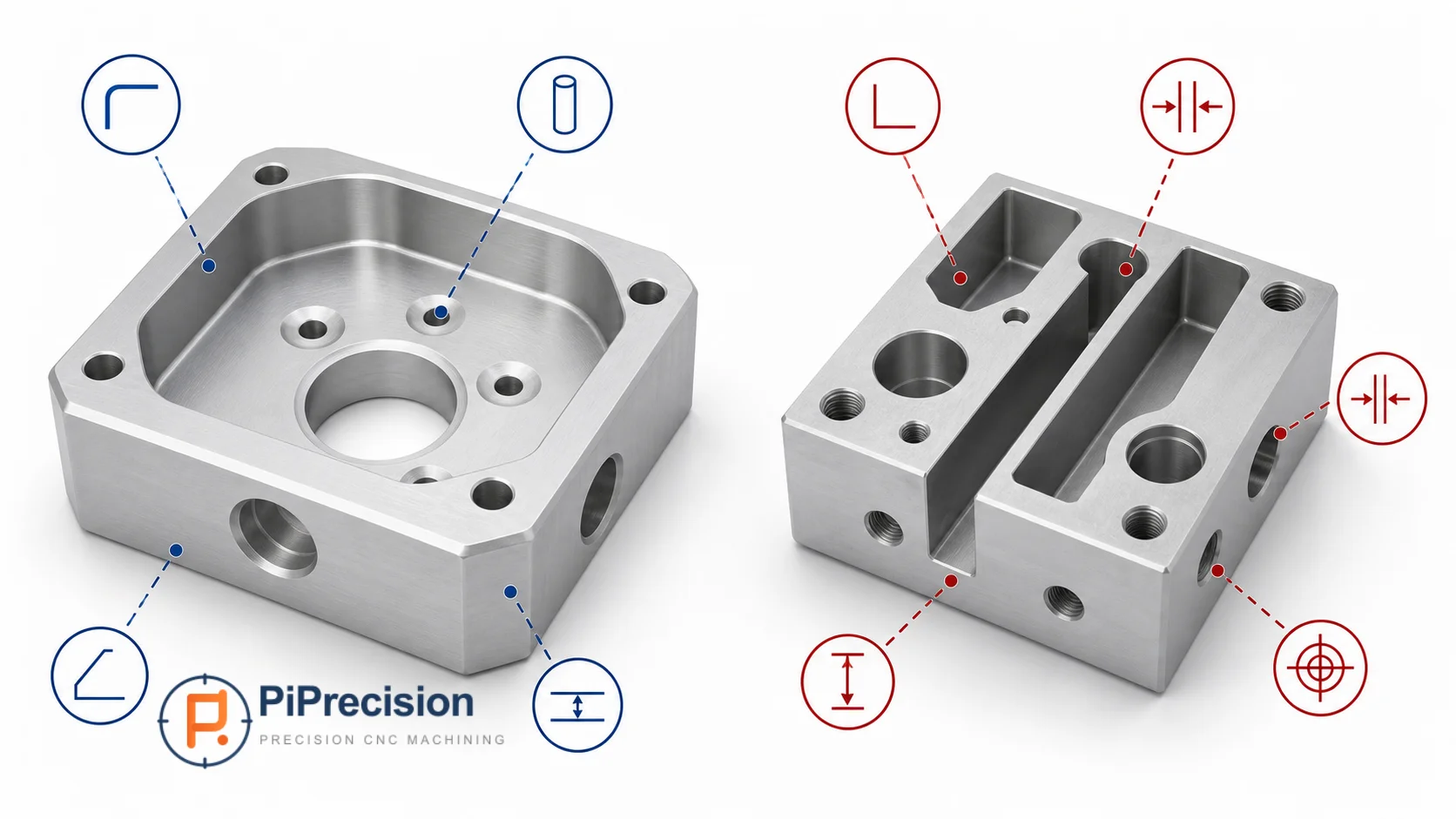

Design features CNC machines can reach
CNC machines are flexible, but they still use physical tools with diameter, length, stiffness, and access limits. Many CNC design problems start when the CAD model asks a tool to do something that is possible in software but difficult in metal.
Add realistic internal corner radii
End mills are round, so they naturally leave a radius in internal corners. A perfectly sharp internal corner usually requires extra operations, special tooling, EDM, broaching, or a design change.
For most milled pockets, add an internal radius and make it larger than the absolute minimum cutter radius when you can. This gives the tool room to move, improves cutting conditions, and can reduce chatter.
If a sharp corner is only for appearance, change it. If it is required for assembly, discuss it with your CNC supplier before quoting.
Avoid unnecessarily deep pockets
Deep narrow pockets are expensive because the tool must reach far into the part. Longer tools are less rigid, which can lead to chatter, slower machining, poor surface finish, and higher risk of tool deflection.
When possible:
- Make pockets shallower.
- Increase corner radii.
- Open one side of the pocket.
- Split the part into simpler components if the design allows it.
- Avoid tall thin islands inside deep pockets.
If a deep pocket is functionally required, mark the critical surfaces clearly so the supplier knows where accuracy matters most.
Keep holes accessible and practical
Holes are usually straightforward, but they become harder when they are very deep, angled, intersecting, close to walls, or located on surfaces that require extra setups.
For better DFM:
- Keep holes perpendicular to accessible faces when possible.
- Avoid very deep small-diameter holes unless they are necessary.
- Leave enough space around holes for tools and inspection.
- Call out threaded holes clearly.
- Avoid placing holes too close to thin walls or edges.
For production parts, also think about how holes will be inspected. A dimension that cannot be measured consistently may create quality disputes later.
Design threads with useful depth
More thread depth is not always better. Very deep threads can add machining time and tool risk without improving the assembly.
Define the thread type, size, pitch, depth, and whether the hole is blind or through. If you need a helicoil, insert, or special thread form, show it clearly on the drawing.
For blind threaded holes, leave enough bottom clearance for the tap or thread mill. If the full thread depth is critical, say so.
Use tolerances where they matter
Tolerance is one of the biggest cost drivers in CNC machining.
A tight tolerance may require slower cutting, more stable fixturing, controlled tool wear, extra inspection, and sometimes multiple finishing passes. That is normal when the tolerance is needed. It becomes expensive when every dimension is tight by default.
Tight tolerances increase machining and inspection work
Do not use a tight general tolerance just because it feels safer. It can make the quote higher and the part harder to produce without improving the final product.
Instead, apply tight tolerances to features that control:
- Bearing fits
- Shaft fits
- Alignment
- Sealing surfaces
- Precision slots or pins
- Mating part location
- Critical thickness or height
For non-critical features, use practical tolerances that match the part function.
Use GD&T or clear drawings for functional relationships
Sometimes the relationship between features matters more than the size of a single feature. For example, the position of two dowel holes may matter more than the outside length of the bracket.
That is where clear datum references and geometric tolerancing can help. You do not need to overcomplicate the drawing, but you should communicate what the part must locate from.
If your drawing uses GD&T, make sure the datums make sense for manufacturing and inspection. A supplier should be able to understand how the part is held, measured, and accepted.
Avoid blanket tight tolerances across the whole part
Blanket tight tolerances are a common reason CNC quotes look higher than expected.
A better approach is:
- Use standard general tolerances for normal features.
- Add specific tolerances only where function requires them.
- Mark critical-to-quality dimensions.
- Discuss inspection requirements before production.
This gives the machinist and inspector a clearer target.
Choose materials with machining behavior in mind
Material choice affects strength, weight, corrosion resistance, appearance, heat resistance, cost, tool wear, and lead time.
It also affects machinability.
Common CNC material tradeoffs
Material group | Typical reason to use it | DFM consideration |
|---|---|---|
Aluminum | Lightweight, easy to machine, good for prototypes and housings | Can dent or scratch; finishing and cosmetic handling may matter |
Stainless steel | Corrosion resistance and strength | Harder to machine than aluminum; tighter features may cost more |
Brass | Good machinability, corrosion resistance, electrical uses | Material cost and surface requirements should be clear |
Engineering plastics | Lightweight, insulating, chemical or wear properties | Can move with heat, stress, and clamping; tolerances need care |
Titanium | High strength-to-weight and corrosion resistance | More difficult and expensive to machine; avoid unnecessary complexity |
The best material is the one that satisfies the function without creating avoidable machining problems.
Prototype material versus production material
If you prototype in one material and produce in another, be careful. A design that machines easily in aluminum may be slower or riskier in stainless steel or titanium.
If production material is already known, use it for important validation builds when possible. If you must use a substitute, tell your supplier what will change later.
Material certificates and traceability
For some parts, material documentation matters. If you need a material certificate, special grade, RoHS or REACH information, or batch traceability, state that when requesting a quote.
Do not wait until after machining to ask for documentation.
Think about wall thickness, stiffness, and distortion
Thin walls are one of the most common CNC DFM issues.
During machining, the part must resist cutting forces and clamping forces. If a wall is too thin, it can vibrate, bend, or spring back after machining. This can affect tolerance, surface finish, and flatness.
Thin walls vibrate and move during machining
If a thin wall is required, consider adding ribs, increasing corner radii, reducing depth, or changing the sequence of material removal. If the wall does not need to be thin, make it thicker.
This is especially important for plastics, tall aluminum walls, and thin stainless parts.
Large flat parts may warp after material removal
Parts with large flat surfaces and heavy material removal can distort because internal material stress is released during machining. This does not mean the design is bad, but it should be planned.
Possible improvements include:
- Balancing material removal on both sides
- Adding stock for a final finishing pass
- Using stress-relieved material where appropriate
- Adjusting geometry to improve stiffness
- Discussing flatness requirements before machining
If flatness is critical, show it on the drawing and ask how it will be inspected.
Plan surface finishes early
Surface finish is part of manufacturability. A part that is easy to machine may still be difficult to finish if cosmetic or coating requirements are unclear.
Machined finish versus cosmetic finish
A standard machined finish may be enough for internal parts, fixtures, and non-visible surfaces. Cosmetic parts may need brushing, bead blasting, polishing, anodizing, plating, or powder coating.
If only one face is cosmetic, mark that face. This helps the supplier protect the right surfaces during handling and finishing.
Anodizing, plating, passivation, and masking
Finishes can affect dimensions, appearance, and function. Coatings may add thickness. Anodizing can affect color and thread fit. Passivation is often used for stainless parts. Masking may be required for precision bores, threaded areas, electrical contact surfaces, or sealing faces.
Put finish requirements on the drawing or quote request. Include color, gloss, texture, coating type, and masking notes when they matter.
Surface roughness and inspection expectations
Only specify surface roughness where it affects function. A very fine roughness requirement can increase machining time, especially on deep pockets, small features, or difficult materials.
If roughness matters for sealing, sliding, fluid flow, or appearance, define it clearly and ask how it will be measured.
Reduce setup complexity
Every time a part must be flipped, re-clamped, re-indicated, or moved to another machine, the process adds time and risk.
Some parts need multiple setups. That is normal. But unnecessary setup complexity can increase cost and variation.
Fewer orientations usually means lower risk
Try to place related features so they can be machined from the same side or with fewer orientations. This helps maintain positional accuracy and reduces handling.
If two features must align closely, it is often better when they can be machined in the same setup.
Datum strategy and fixturing
Datums should reflect how the part functions and how it can be held. A datum on an unstable, unfinished, or hard-to-access surface can make inspection and production harder.
When possible, use broad, stable surfaces as primary references. If the part has no obvious holding surface, discuss fixture strategy with the supplier.
Symmetry, part handling, and repeatability
Small details can create handling problems. A part that looks symmetrical but has one subtle orientation-specific feature may be easy to load incorrectly. A part with no flat clamping area may need custom fixtures.
For production, consider adding small features that improve repeatability, such as locating flats, fixture-friendly surfaces, or clear orientation marks when appropriate.
Prepare a quote package that gets a better answer
Good DFM also depends on good communication. A supplier can give better pricing and feedback when the quote package is complete.
Send:
- 3D CAD files, usually STEP or IGES
- 2D PDF drawings for tolerances and notes
- Material grade and any approved substitutes
- Surface finish requirements
- Quantity and expected future volume
- Critical dimensions and inspection needs
- Thread details
- Required certificates or reports
- Delivery country and packaging needs
If the design is still flexible, say so. That gives the supplier permission to suggest cost-saving changes instead of quoting the model exactly as supplied.
DFM checklist for CNC machined parts
Use this checklist before sending a CNC part for quote:
- Are all sharp internal corners necessary?
- Can internal radii be increased?
- Are deep pockets required, or can they be shallower?
- Are thin walls thick enough for machining and handling?
- Are holes accessible from practical directions?
- Are thread sizes, depths, and types clearly defined?
- Are tight tolerances limited to functional features?
- Are datums and critical relationships clear?
- Is surface roughness specified only where needed?
- Are cosmetic surfaces identified?
- Are finishing and masking requirements stated?
- Is inspection documentation defined before quoting?
- Is the material suitable for both prototype and production?
- Can related precision features be machined in the same setup?
- Is the drawing revision clearly controlled?
This checklist will not replace supplier feedback, but it will make that feedback faster and more useful.
How PiPrecision supports DFM review
PiPrecision CNC is a Shenzhen-based precision CNC machining manufacturer supporting global customers with CNC milling, CNC turning, surface finishing, and custom manufacturing support from prototype to production.

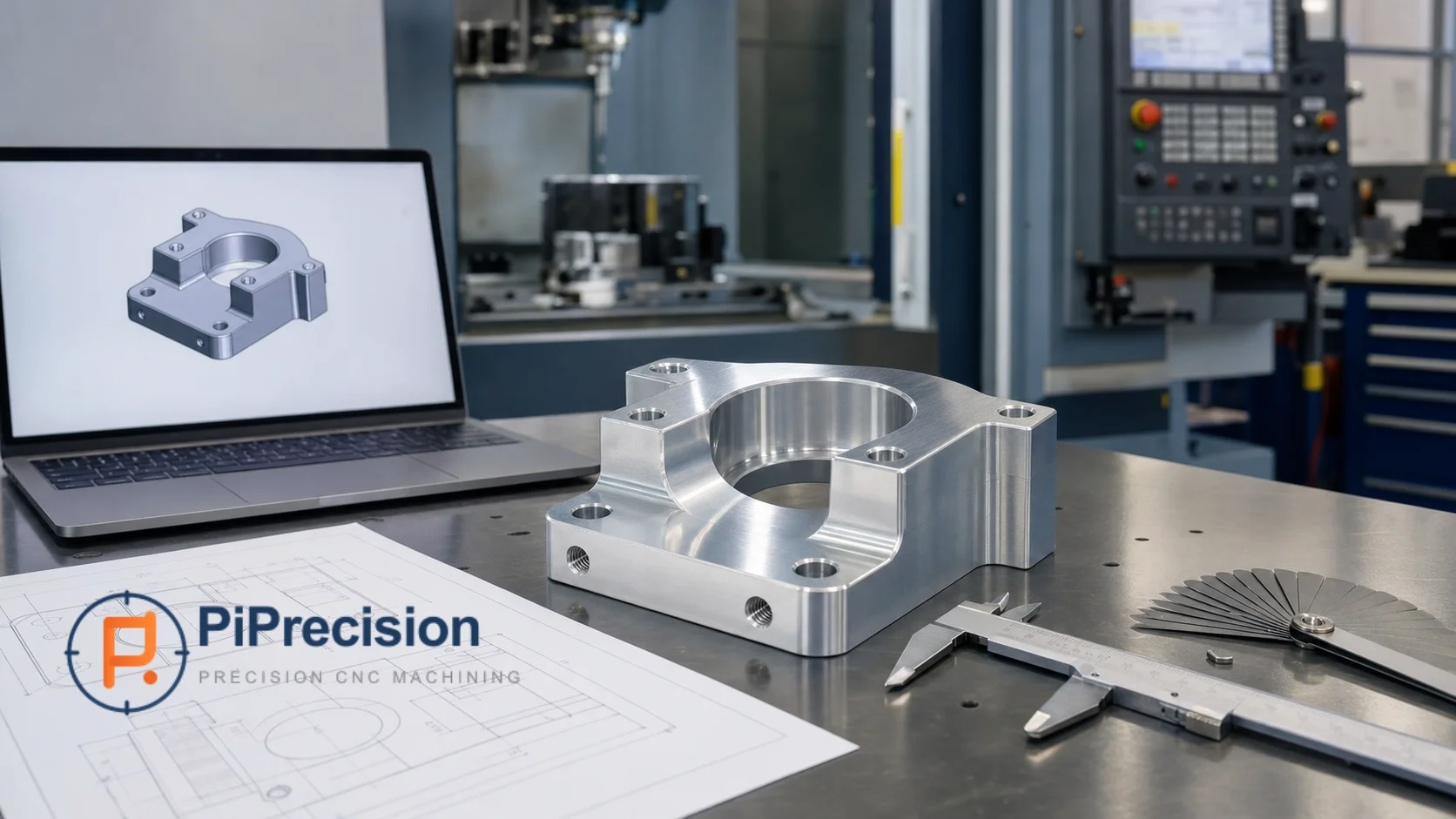

For CNC projects, DFM review often focuses on practical details: which features drive cost, where tolerances may be tighter than needed, how the part should be held, which surfaces require finishing, and what inspection documentation is needed before shipping.
If you are unsure about a tolerance, material, finish, or feature, PiPrecision can review your drawing before quoting. You can upload CAD files and drawings or contact [email protected].
Conclusion
Mastering DFM for CNC machined parts is about making better engineering tradeoffs.
You do not need to make every part simple. Some parts need tight tolerances, difficult materials, complex geometry, and fine finishes. The key is knowing which requirements are truly functional and which ones only add machining time.
Start with the part function. Give tools room to cut. Use tolerances carefully. Plan material, finishing, and inspection early. Then work with a CNC supplier who can give practical feedback before production begins.
That approach usually leads to better parts, clearer quotes, smoother production, and fewer surprises.
