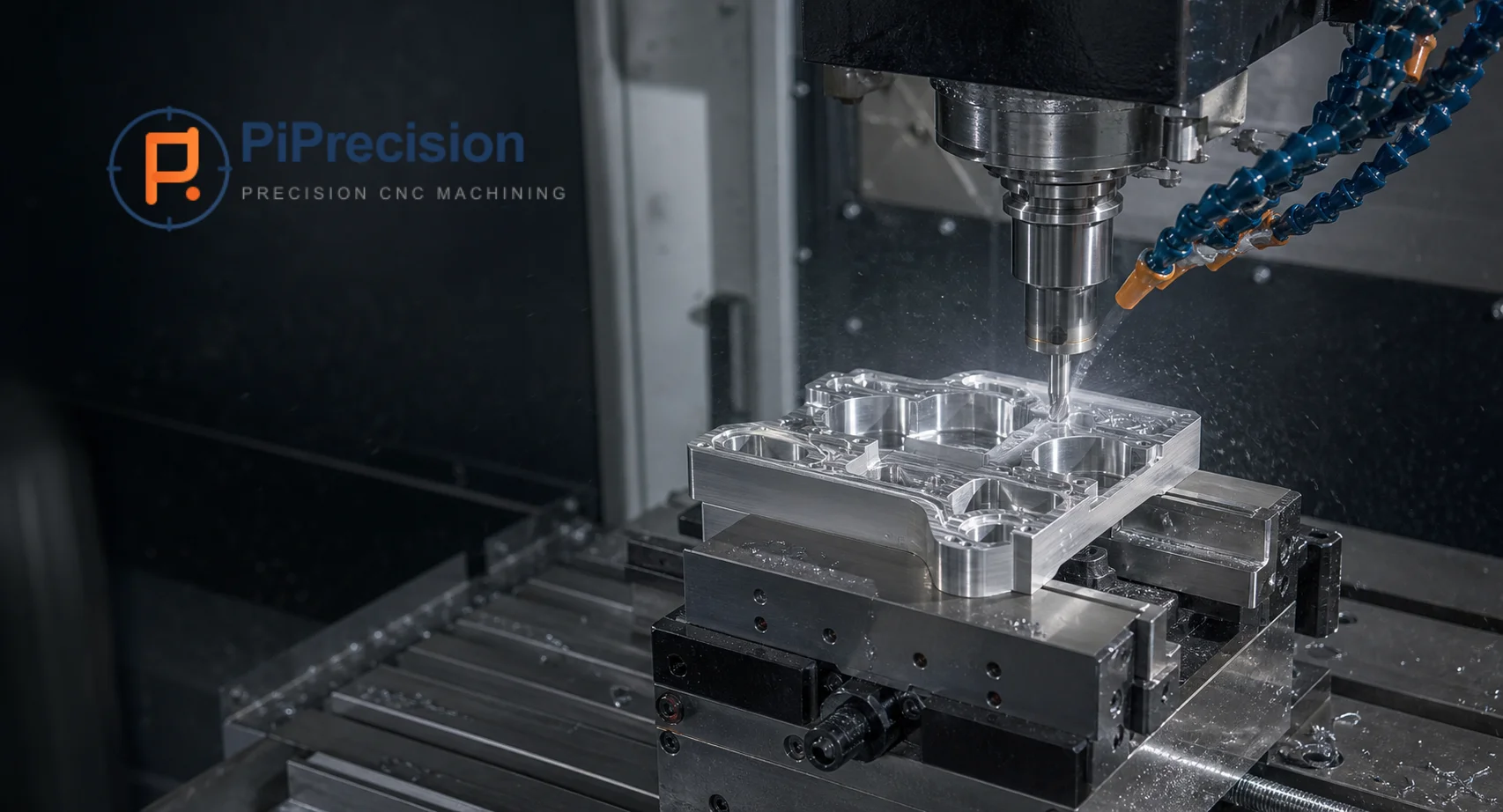

CNC Milling Accuracy: Tolerances, Factors & Design Tips

Ask five CNC suppliers, “What accuracy can your milling machines achieve?” and you may get five different answers.

That does not necessarily mean anyone is being evasive. CNC milling accuracy is a result of the complete process, not just the machine. The part geometry, feature type, material, tool, fixture, temperature, setup plan, finish, and inspection method all matter.

For an engineer or buyer, the useful question is not “How accurate is CNC milling?” It is:

Can this supplier manufacture and verify each function-critical feature on my part, in the specified material and quantity?

This guide explains how to answer that question without over-tolerancing the drawing or paying for precision the design does not need.

The short answer: there is no single CNC milling accuracy number

CNC milling can produce accurate, repeatable parts, but there is no universal tolerance that applies to every milled feature.

Published supplier benchmarks show how much commercial offerings can differ. For example, Xometry publishes a standard tolerance of ±0.005 in (±0.127 mm) for many metal CNC parts unless otherwise specified. Protolabs also publishes ±0.005 in (±0.13 mm) for its standard automated machining and ±0.002 in (±0.051 mm) for a precision option.

These figures are useful market reference points, not universal process limits and not PiPrecision capability promises. A shop may hold a tighter tolerance on a short reamed bore but require a wider tolerance across a large, thin plate. The same numerical tolerance can be straightforward on one feature and high-risk on another.

Always evaluate accuracy at feature level. Include the nominal size, tolerance type, material, geometry, datum relationship, surface condition, and inspection plan.

Accuracy, precision, repeatability, and tolerance are different

These terms are often used as if they mean the same thing. They do not.

A process can be repeatable but inaccurate. For example, it may consistently machine a bore 0.02 mm undersize. That process is tightly grouped but biased away from nominal. A tool offset may correct the bias if the underlying process is stable.

Resolution can also be misleading. A machine or gauge displaying micrometres does not automatically deliver micrometre-level part accuracy. Display resolution is not the same as measurement uncertainty or process capability.

What accuracy can CNC milling achieve?

The honest answer depends on the feature.

Use the following as a discussion guide, not a capability chart:

Very tight tolerances may be feasible on selected features, but feasibility is not the same as an economical, stable production process. The supplier may need a finishing operation, controlled warm-up, special workholding, tool-wear compensation, in-process probing, slower cycles, and more inspection.

That is why a machine’s positioning specification alone is not enough. As Renishaw notes in its machine-tool guidance, an inaccurate machine cannot consistently produce accurate parts, but machine health is only one foundation of process control.

The nine factors that control CNC milling accuracy

1. Machine condition and calibration

Machine geometry, axis positioning, backlash, squareness, spindle condition, and rotary-axis alignment can all influence the tool’s actual path.

Periodic checks may include laser calibration, ballbar testing, probing routines, and preventive maintenance. Calibration helps identify machine error, but it does not remove errors caused by the tool, fixture, part, or measurement process.

2. Temperature and thermal growth

Machines, cutting tools, workpieces, fixtures, and measuring equipment change size as temperature changes.

Heat can come from the spindle, ballscrews, coolant, cutting process, shop environment, or a warm part entering a cooler inspection room. NIST documents 20 °C as the international reference temperature for dimensional measurement, which is why temperature control and stabilization matter in close-tolerance inspection.

For demanding work, a stable routine may include machine warm-up, controlled coolant temperature, consistent cycle timing, and allowing the part to stabilize before final measurement.

3. Tool runout, deflection, and wear

A cutter does not behave like a perfectly rigid cylinder.

• Runout causes cutting edges to sweep unequal paths.
• Deflection bends the tool under cutting force.
• Wear changes the effective cutting geometry during the batch.
• Long overhang reduces rigidity and increases vibration risk.

The result may be dimensional drift, tapered walls, oversize slots, undersize bosses, or poor surface finish. A short, rigid tool with a controlled finish pass is generally easier to manage than a long tool cutting a deep wall at full engagement.

4. Workholding and clamping force

The fixture must locate the part repeatably and hold it against cutting forces. It must also avoid distorting the workpiece.

Over-clamping a thin or soft part can bow it during machining. The feature may measure correctly while clamped, then move after release. Under-clamping creates a different risk: the workpiece can shift or vibrate.

A good fixture supports the machining datum, provides access for the required operations, and applies force through stable areas of the part.

5. Material behavior

Different materials respond differently to cutting heat, force, and stress relief.

Aluminum is generally machinable, but a large thin aluminum plate can still warp after heavy stock removal. Stainless steel and titanium increase cutting forces and heat. Engineering plastics can move with temperature, absorb moisture, or deform under clamping.

Material grade, stock form, heat treatment, and internal stress can matter as much as the material family name.

6. Part geometry

Geometry often determines whether a tolerance is stable.

Thin walls, deep pockets, long slender features, interrupted cuts, small internal radii, and large unsupported faces reduce rigidity or force the use of less rigid tools. A compact part with accessible features is normally easier to machine accurately than a flexible part with the same tolerance values.

This is one reason an isolated claim such as “we can hold ±0.01 mm” is incomplete. The answer can change from one feature to the next on the same component.

7. Toolpath and cutting strategy

Roughing and finishing have different jobs. Roughing removes material efficiently; finishing establishes the final size and surface under more controlled cutting conditions.

A stable process may leave consistent material for finishing, use an appropriate tool engagement, manage entry and exit marks, apply cutter compensation, and avoid abrupt changes that excite vibration. The correct strategy depends on the material, cutter, machine, and geometry.

8. Setup count and datum transfer

Every time a part is unclamped, moved, or reoriented, the process must establish its location again.

If two critical features must be tightly related, machining them in one setup can reduce datum-transfer error. A 5-axis machine may help by reaching more faces without manual refixturing, although 5-axis machining is not automatically more accurate in every situation.

When multiple setups are unavoidable, the drawing should provide a clear datum structure and the process should use repeatable locating features.

9. Inspection method and measurement uncertainty

A tolerance is incomplete unless the supplier can measure it appropriately.

Calipers may be suitable for some non-critical external dimensions. Micrometers, bore gauges, height gauges, pin gauges, optical systems, surface roughness instruments, and coordinate measuring machines serve different purposes.

The measurement method must suit the feature, tolerance, material, surface, and datum scheme. A gauge’s resolution alone does not prove that it is capable of making the required decision.

How to design accurate CNC-milled parts without over-tolerancing

The goal is not to make every tolerance loose. It is to spend precision where function needs it.

Start with function and critical-to-quality features

Identify the features that control:

• Assembly and clearance
• Bearing, pin, or shaft fits
• Sealing
• Alignment and location
• Motion
• Load transfer
• Optical, electrical, or fluid interfaces

Give these features explicit requirements. Allow non-critical dimensions to use an agreed general tolerance.

ISO 2768-1 provides general tolerance classes for linear and angular dimensions without individual tolerance indications. It can simplify a drawing, but the chosen class still needs to match the supplier’s process and the part’s function.

Use GD&T when relationships matter

A ± dimension controls size or coordinate variation. It may not clearly communicate how a surface or hole must relate to the part’s functional datums.

Geometric dimensioning and tolerancing (GD&T) can control position, flatness, perpendicularity, parallelism, profile, runout, and other geometric relationships. ASME Y14.5 defines a common language for stating and interpreting these requirements.

Use GD&T to communicate design intent, not to decorate the drawing. The datum reference frame should reflect how the part locates and functions in the assembly.

Keep related features in one setup

If two bores must align closely, ask whether they can be machined in the same setup. The same principle applies to sealing faces, bearing seats, locating holes, and mating surfaces.

Sometimes a small design change—adding tool access, changing a blocked feature, or revising a datum—lets the machinist complete related work without refixturing.

Make the part stiff enough to machine and measure

Where function allows:

• Thicken tall walls.
• Add ribs or temporary support stock.
• Reduce excessive pocket depth.
• Increase internal corner radii.
• Avoid very long, narrow slots.
• Balance material removal across large flat parts.
• Provide stable clamping and datum surfaces.

These changes can improve accuracy, surface finish, cycle time, and inspection reliability together.

Plan around finishing and coatings

Anodizing, plating, heat treatment, blasting, and polishing can change dimensions or distort the part.

State whether a tolerance applies before or after finishing. Masking, machining allowance, and inspection sequence may need to be agreed during quoting. Do not assume a fit-critical bore will remain unchanged after coating.

Match the tolerance to the manufacturing process

Milling may create the base geometry, while a critical bore could be finished by reaming or boring. Some requirements may be better served by grinding, honing, lapping, wire EDM, or a purchased precision insert.

Changing the process is not a failure of CNC milling. It is often the most reliable way to meet the function.

How CNC milling accuracy is verified

Inspection should be planned with machining, not added as an afterthought.

In-process control

Depending on the part and volume, process control may include:

• Workpiece probing for setup and alignment
• Tool setting and broken-tool detection
• Offset updates for stable, predictable drift
• First-piece checks before completing the batch
• Tool-life controls
• Periodic checks of critical dimensions

Renishaw describes workpiece probing and tool measurement as established practices for setup, in-cycle gauging, tool setting, and process control. These tools can reduce variation, but they must be calibrated and used with an appropriate probing strategy.

Final inspection

The final plan should define:

• Which dimensions and GD&T controls are checked
• The measurement method
• Sampling quantity or frequency
• Environmental or stabilization requirements
• Whether results are recorded
• Required documents, such as a dimensional report or first article inspection

For a prototype, checking every critical feature may be appropriate. For production, the sampling plan should reflect process risk, stability, customer requirements, and applicable quality procedures.

Match the gauge to the requirement

Ask three simple questions:

1. Can the instrument access and correctly represent the feature?
2. Is its calibrated performance appropriate for the tolerance?
3. Does the inspection setup reproduce the drawing’s datum scheme?

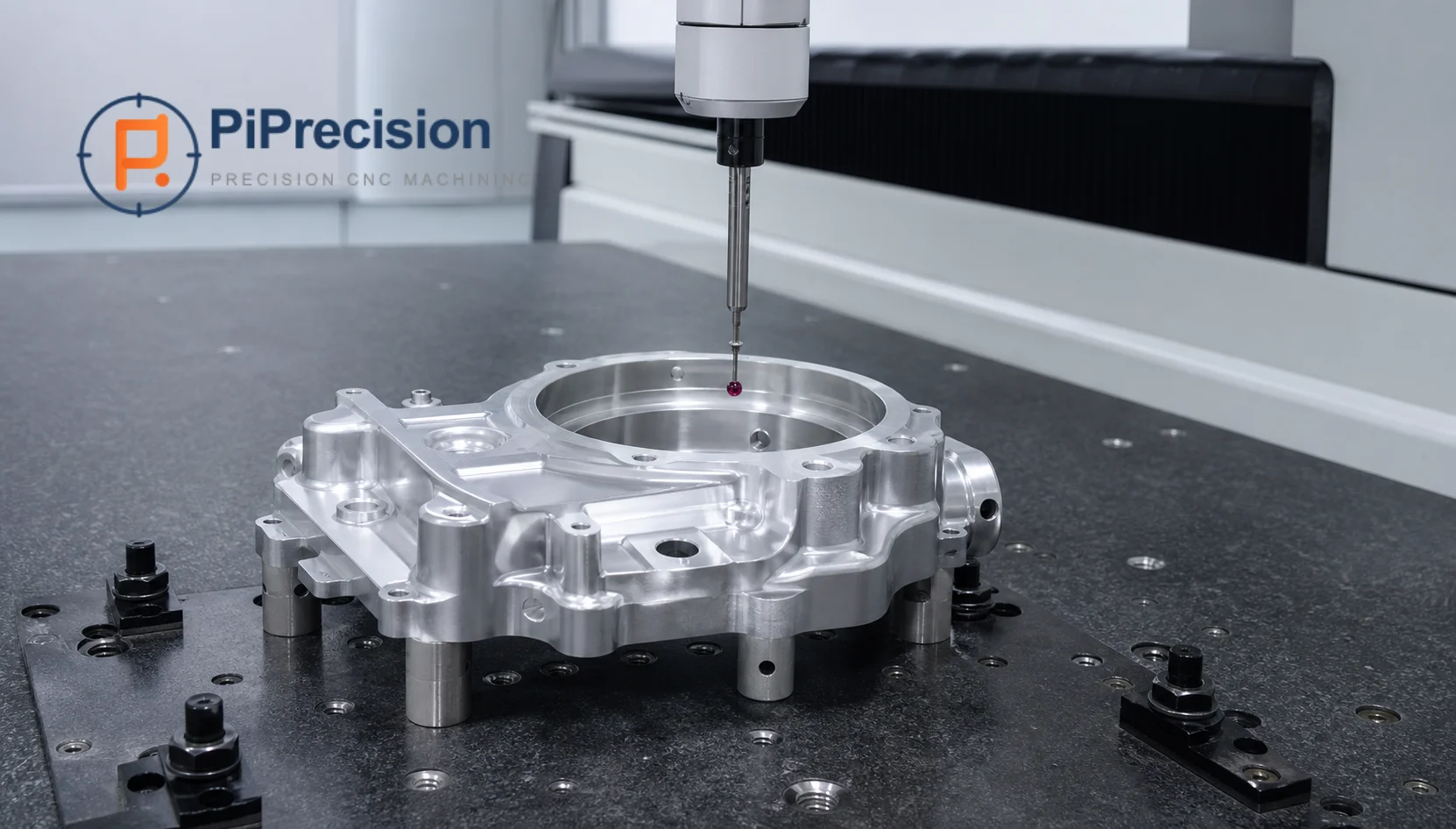

A CMM is powerful, but it is not automatically the best tool for every dimension. A functional gauge may answer an assembly question more directly, while a micrometer may be more efficient for a simple external size.

What to send a CNC milling supplier

For an accurate technical review and quote, provide:

• A clean 3D CAD model, preferably STEP or another agreed neutral format
• A 2D drawing with dimensions, tolerances, datums, and GD&T
• Material grade and required condition
• Quantity for prototype and expected production
• Surface finish and post-processing requirements
• Critical-to-quality features
• Required inspection and documentation
• Mating-part or assembly context when it helps explain function

If the model and drawing disagree, clarify which controls. Ambiguity is an accuracy risk before the first chip is cut.

Questions to ask before approving a tight-tolerance quote

Instead of asking only for the supplier’s “best tolerance,” ask:

1. Have you reviewed this tolerance on this specific feature, material, and part geometry?
2. Can the critical features be machined in one setup?
3. What process will finish the bore, face, or profile?
4. How will thin walls or distortion be controlled?
5. Does the tolerance apply before or after finishing?
6. How will the feature be inspected, and against which datums?
7. What inspection report or first article documentation is available?
8. Is a different tolerance, datum scheme, or secondary process more robust?

The quality of these answers tells you more than a broad accuracy claim.

CNC milling accuracy FAQ

Is 5-axis milling more accurate than 3-axis milling?

Not automatically. A 5-axis machine can improve access and reduce manual setups, which may improve relationships between features. However, rotary-axis calibration, machine condition, programming, fixturing, tooling, and inspection still affect the result.

For a simple prismatic part machined in one orientation, a capable 3-axis process may be the more direct solution.

Can CNC milling hold ±0.01 mm?

It may be achievable on selected features with suitable geometry, material, equipment, tooling, process control, and inspection. It should not be treated as a blanket tolerance for every dimension on every part.

Ask the supplier to review the exact feature and explain the proposed process and measurement method.

Does a smoother surface mean a more accurate part?

No. Surface roughness and dimensional or geometric accuracy are related through the cutting process, but they are different requirements. A surface can look smooth and still be out of size, position, flatness, or profile.

Specify surface roughness only where it supports function or appearance.

Are plastics less accurate to mill than metals?

Plastics often need additional tolerance allowance because they can expand with heat, absorb moisture, deform under clamping, or contain internal stress. The result depends on the polymer, stock condition, geometry, and environment.

Tight plastic features should be reviewed individually, including the temperature at which the part will be used and inspected.

Should every dimension have a tight tolerance?

No. Blanket tight tolerances increase machining and inspection effort without improving function on non-critical features.

Use a suitable general tolerance for ordinary dimensions, then call out tighter size or geometric controls only where the assembly needs them.

Make accuracy a process, not a slogan

Reliable CNC milling accuracy comes from a chain of decisions: a functional drawing, suitable geometry, stable material, capable equipment, short and rigid tooling, repeatable workholding, a controlled setup plan, and appropriate inspection.

When those elements agree, the tolerance becomes a manageable production requirement rather than a hopeful number on a print.
