Brass CNC machining can be a practical choice for custom sleeves, connectors, hardware, and other precision parts. Start with C360 when easy cutting is a priority and the application permits its lead content. Consider C260 when forming matters, or a suitable lead-free grade when material requirements demand one.
The right choice depends on more than how quickly a tool cuts. Stock availability, part geometry, finishing, and inspection all affect the cost of an accepted component. A clear drawing helps the supplier compare those factors before production starts.
Which brass machining grade should you choose?
Brass is a family of copper-zinc alloys, not one material. Different grades can look similar while behaving differently during machining and forming.
Use this table as an initial selection guide, then confirm the exact material specification and available stock with the manufacturer.
Grade | Why consider it? | What needs checking? |
|---|---|---|
C360 / C36000 free-machining brass | Efficient cutting for turned and other machined features | Lead content, application suitability, and any later forming operations |
C260 / C26000 cartridge brass | Ductility and forming performance | Cutting behavior, temper, stock form, and finishing needs |
C69300 silicon brass, one lead-free option | A material designed to combine low lead content with useful machining performance | Exact specification, application approval, stock availability, and a suitable cutting process |
The shorthand grades in this article refer to their full UNS designations. Do not assume a differently named national grade is interchangeable without comparing the applicable specifications.
C360: a starting point for machined parts
C360 is widely used where machining efficiency matters. Its lead addition helps give it free-cutting behavior. “Free-machining” describes cutting performance; it does not mean lead-free. Wieland C36000 material data

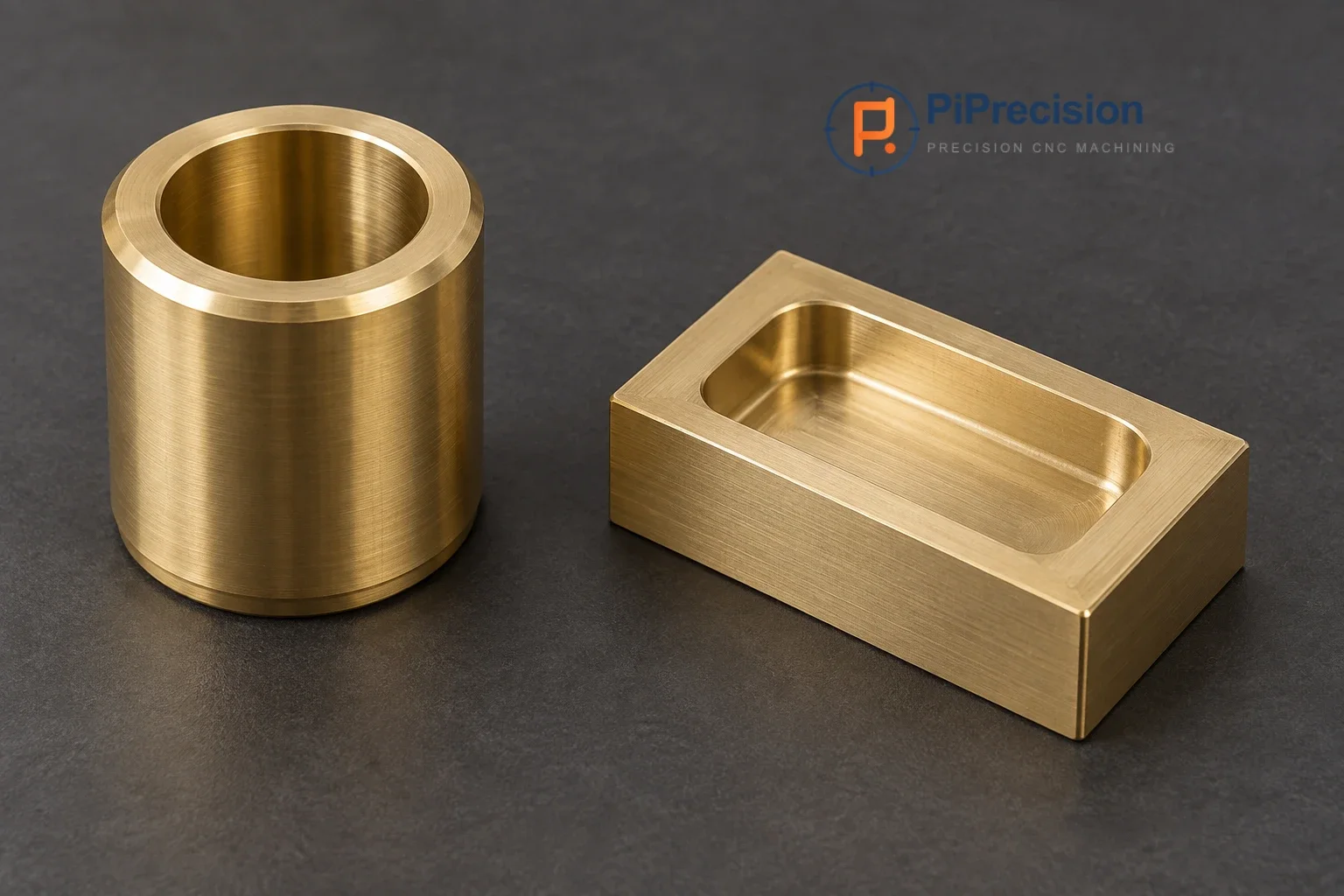

Consider a short sleeve with a bore, an outside diameter, and two faced ends. If its service requirements allow C360, the grade is a sensible starting point for a turning quote.
Do not choose it solely because it machines well. If the same component must later be bent or heavily formed, review that operation before fixing the material.
Check the service environment as well. Wieland flags stress-corrosion cracking in conditions involving ammonia and mechanical stress, and dezincification in warm acidic water. Dezincification is selective loss of zinc from the alloy. A fitting exposed to an aggressive fluid needs a material review, not just an efficient machining process. Wieland corrosion guidance
C260: useful when forming matters too
C260, often called cartridge brass, offers high ductility: it can deform substantially before breaking. That makes it relevant when the manufacturing route includes forming rather than cutting alone. Protolabs brass overview
It can still be CNC machined. However, a process developed for C360 should not simply be transferred to C260 without review.
Wieland Concast lists C26000 with a machinability rating of 30. This is a comparative material rating, not a promise that a job will take a fixed multiple of the time required for another alloy. Wieland Concast C26000 data
For example, a formed cover with a few machined mounting features may justify a different material choice from a sleeve cut entirely from bar. Specify the temper, meaning the material condition that affects strength and ductility, as well as the grade.
Lead-free options need their own process review
C69300 is one silicon-brass option marketed for lead-free applications. It is not simply C360 with the lead removed; the composition and cutting response differ. Mitsubishi Materials provides dedicated ECO BRASS material and machining information. ECO BRASS manufacturer guidance
If your drawing requires a lead-free material, name the accepted specification and documentation. Do not rely on a supplier's generic “lead-free brass” description as proof that the finished component meets every application requirement.
Confirm the available size and stock form early. A technically suitable grade can still change the quotation if the needed bar or plate is difficult to obtain.
The Copper Development Association also cautions that machinability indexes are comparative; tooling and machining operations can change actual results. Use them to screen materials, not calculate a guaranteed cycle time. CDA low-lead copper-alloy guide
Choose milling or turning from the part geometry
Round parts with concentric features are natural candidates for turning. A lathe rotates the workpiece while cutting tools produce diameters, faces, bores, and related features.
Milling suits blocks, pockets, slots, and features spread across different faces. A rotating cutter removes material from a secured workpiece.
A brass sleeve with wrench flats may need both processes. Depending on the equipment and geometry, the flats could be made with live tooling on a lathe or in a separate milling setup.
Each setup needs a way to locate and hold the part. Where two features must align closely, ask how the proposed process maintains that relationship. Our CNC milling versus turning guide explains the broader selection tradeoffs.
Design details that make brass parts easier to machine
Good design for manufacturability, or DFM, removes avoidable production difficulty without changing what the part must do.
Give the cutter room to work
A conventional round milling cutter leaves a radius in an internal pocket corner. Allow useful corner radii and avoid deep, narrow pockets unless the function requires them. Smaller, longer tools can make a simple-looking feature harder to produce. Protolabs machining DFM toolkit
For a brass block that holds a rectangular insert, check whether the insert's corners can be relieved. That may allow a practical pocket radius instead of requiring a sharp internal corner and a different process.
Support thin walls and slender features
Easy cutting does not make a thin feature rigid. Workholding pressure and cutting forces still matter, especially around thin sleeves, tall walls, and long pins.
For a thin sleeve, the supplier may need to control clamping pressure and plan when the bore and outside diameter are finished. Ask for a geometry-specific review rather than relying on a universal minimum wall thickness.
Define edges and protect visible surfaces
Mark where burrs are unacceptable and specify edge breaks where needed. “Deburr all edges” may not fully describe the requirement at a sealing edge or a small intersecting hole.
Identify cosmetic faces too. A visible brass control knob may need different handling and finishing from an internal spacer. Agree on an appearance sample when visual consistency matters, and keep unnecessary cosmetic requirements off hidden surfaces.
What affects brass CNC machining cost?
The useful comparison is total cost per accepted part, not raw material price alone.
Cost driver | Practical question for the quotation |
|---|---|
Grade and stock size | Is suitable stock available close to the finished dimensions? |
Material removal | How much purchased stock becomes chips? |
Setups and access | Can critical features be completed without repeated repositioning? |
Tolerances | Which dimensions need close control for the assembly to work? |
Finishing | Are polishing, plating, masking, or appearance approval required? |
Inspection and quantity | What reporting is needed, and how many parts share the setup cost? |
Consider two versions of a decorative brass housing. Both use the same alloy, but one has a shallow open pocket and the other has deep narrow channels. The second can cost more even if the finished parts weigh the same.
Likewise, a cheaper stock grade is not automatically the cheaper finished part. Request a comparison only between materials that already satisfy the design requirements.
Avoid applying a fixed savings percentage from a general brass-machining guide to your drawing. Tool access, order quantity, supplier equipment, and acceptance criteria make the result job-specific.
Brass machining surface finishes
Choose the finish from the surface's function. Appearance, fit, wear, and electrical contact can call for different treatments.
An as-machined surface retains tool marks. Polishing changes their appearance and removes material. Plating adds a coating whose thickness can affect a bore, thread, or mating diameter.
For a polished control knob, agree on the visible faces and acceptable appearance. For a plated sleeve, state whether the bore must meet its drawing size after finishing.
Do not specify only “gold finish” or “smooth.” Name the required process, identify critical surfaces, and provide measurable requirements or an approved reference sample as appropriate.
Our CNC surface finish guide covers broader finishing choices. Confirm the actual brass alloy and coating system with the finisher before approving production.
Tolerances, inspection, and material verification
Brass machinability does not establish a universal tolerance capability. Feature size, wall stiffness, setups, temperature, and the inspection method all influence the result.
Separate dimensional and material acceptance. A part can measure correctly while being made from the wrong alloy, and a correct alloy can still contain an out-of-tolerance bore.
For important parts, agree on:
- The exact grade, temper, and required material certificate.
- The reference features used to locate measurements, called datums.
- Critical dimensions, thread requirements, and inspection methods.
- Whether acceptance applies before or after finishing.
- Any appearance, cleanliness, or burr requirements.
For example, a locating sleeve may need close control of its bore and outside diameter but a less demanding overall length. Tell the manufacturer which relationships matter to the assembly.
Use the CNC milling accuracy guide for the distinction between accuracy, repeatability, and drawing tolerances.
What to include in a brass machining RFQ
A useful request for quotation, or RFQ, gives the supplier enough information to price the same part you intend to approve.
Send the 3D model and a dimensioned drawing, with:
- Grade, temper, and any permitted material alternatives.
- Prototype quantity and expected repeat-order quantity.
- Critical fits, datums, threads, and tolerances.
- Finish requirements, masking areas, and visible surfaces.
- Required inspection reports and material documentation.
- Application conditions that could affect material selection.
If the grade is undecided, explain the function and ask for alternatives. Require approval before a substitution; similar color or a familiar trade name is not sufficient.
Frequently asked questions
Is brass easy to CNC machine?
Many brass grades machine well, particularly free-machining C360. The exact alloy and feature geometry still matter; an easy-cutting material does not remove tool-access or workholding limits.
Is C360 brass lead-free?
No. C360 contains lead as part of its free-machining alloy composition. If lead content is restricted, specify an acceptable alternative and the evidence needed to approve it.
Can C260 brass be CNC machined?
Yes. It is a machinable material, but its forming advantages do not imply the same cutting performance as C360. Review the tooling, part design, and required stock condition.
Is brass cheaper to machine than aluminum?
Not necessarily. Compare quotations for the same functional requirements, including stock, machining, finishing, and inspection. Do not select either material on cutting speed alone.
Choose the material and process together
Start brass machining material selection with the part's function. Then confirm the grade, available stock, manufacturing route, finish, and acceptance requirements as one package.
PiPrecision is a Shenzhen-based CNC machining manufacturer supporting global customers from prototypes to production. If you are unsure about a brass grade or drawing requirement, send your files for a machining review before finalizing the specification.
