CNC deburring removes unwanted material left at the edges of machined parts. A useful specification also defines how much the intended edge may change and how the finished condition will be checked. A chamfered hole entrance, a sharp sealing edge, and an internal hole intersection can need different treatment.
Start with the edge's function, then agree on a suitable method with the supplier. That helps prevent two common problems: burrs left where they matter and useful edges rounded more than the design allows.
Deburring vs edge breaking: what is the difference?
A burr is an unwanted projection of material left by manufacturing. Burrs can occur at drilled-hole exits, milled edges, and other feature intersections.
Deburring and edge breaking often happen together, but they describe different requirements. Mecha's manufacturing guidance distinguishes removing unwanted material from reducing an edge's sharpness.
Term | What it controls | What to clarify |
|---|---|---|
Deburring | Removal of unwanted material | Which locations are included and what residual condition is acceptable |
Edge break | A change at the edge, often to reduce sharpness | Permitted size and whether the shape must be defined |
Chamfer | An angled face between adjacent surfaces | Size, angle, and tolerance where required |
Edge radius | A rounded transition | Radius and tolerance where required |
Removing a burr does not automatically create a specified chamfer. Equally, machining a chamfer does not establish that every nearby edge is free of unacceptable burrs.
Why “deburr all edges” can leave room for disagreement
The note tells a supplier that burr removal matters. It may not explain how to handle a sealing rim, a small slot, or an edge hidden inside a bore.
Separate general handling edges from functional edges. A hand-contact corner may allow rounding, while a locating shoulder or sealing feature may permit much less material removal. Identify those exceptions on the drawing.
For controlled drawing notation, ISO 13715:2017 addresses edges of undefined shape. Its public scope distinguishes these from geometrically defined edges, such as a specifically dimensioned chamfer. Use the applicable drawing system consistently; the standard is not a universal deburring allowance.
Our technical-drawing checklist covers the wider drawing package. Here, the priority is making the edge requirement inspectable.
Compare CNC deburring methods around the part
Choose the process after reviewing material, burr location, tool access, required edge condition, and quantity. One part may need more than one method.
Method | Where it can be useful | What needs review |
|---|---|---|
Manual scraping, filing, or local finishing | Accessible edges, prototypes, and selected features | Access, repeatability, time, and protection of nearby surfaces |
On-machine cutting or chamfering | Defined edges reachable by a programmed tool | Tool access, geometry, and any remaining burrs |
Abrasive brushing | Suitable edges or bore intersections within the tool's application limits | Burr size, brush selection, parameters, and resulting edge change |
Mass finishing, such as vibratory finishing | Suitable groups of parts processed with finishing media | Edge rounding, surface change, delicate features, and trapped media |
Specialist processes | Features that justify a dedicated process review | Material compatibility, tooling, cleaning, inspection, and commercial scope |
Manual finishing and on-machine cutting

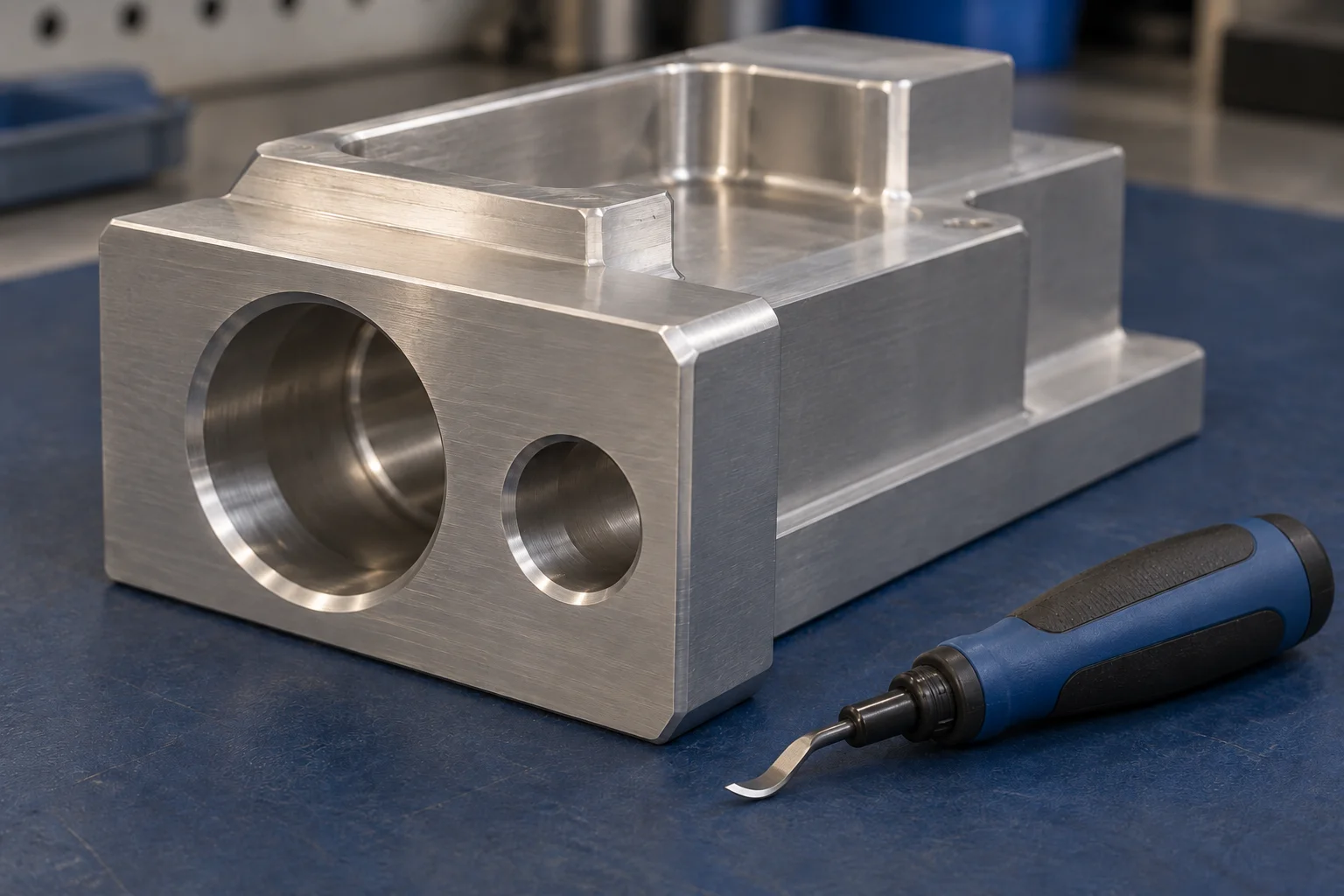

Manual work can focus on an individual edge, but the supplier still needs a consistent acceptance requirement. A small prototype batch may justify this approach where each feature is accessible.
The blade must also suit the material and access. Noga's swivel-blade guide illustrates selection by workpiece material and application.
A programmed chamfer or bore-deburring tool can make defined edges easier to repeat. Access remains important: an external chamfering tool cannot be assumed to reach an intersection hidden inside the part. HEULE's cross-bore tooling illustrates how specific geometries can require dedicated or custom solutions.
Brushes and mass finishing
Brushing needs process control. XEBEC's surface-brush guidance links selection to material and burr size, and explains that an unsuitable rotation direction can fold certain burrs against a surface instead of removing them.
Mass finishing treats parts through contact with processing media—the shaped pieces that rub against the workpiece. Check what that contact does to critical edges and surfaces. Rösler's media-selection guidance highlights media access, lodging, and potential damage to delicate features. A process that suits an exterior edge may not suit a narrow internal passage.
Specialist processes for difficult features
Thermal deburring removes burrs through controlled oxidation. Electrochemical deburring removes metal through an electrochemical reaction. Abrasive-flow machining moves an abrasive medium through a controlled flow path to work reachable surfaces.
These specialist routes need a separate review of the actual material, geometry, and acceptance requirements.
Ask the quoting supplier which route is proposed, which operations would be performed externally, and what verification is included. A general capability description does not confirm a particular process for your order.
Internal burr removal needs its own plan
An acceptable entrance does not establish an acceptable internal intersection. A hole may look clean from outside while its intersection with another bore remains difficult to reach or observe.
Show the relevant intersection in a section view or clearly identify it in the model. Share bore sizes, depth, angle, offsets, and any restriction on changing the surrounding surface.
Tools for internal work have limits on the geometries they can process. For example, XEBEC's cross-hole brush instructions distinguish main-bore and cross-hole geometry and provide tool-specific conditions. “Use a brush” alone does not define a suitable process.
During quoting, ask two separate questions: How will the edge be reached, and how will the result be verified? If access or inspection is uncertain, resolve that before production approval.
What to put on the drawing and RFQ
Include edge requirements in the request for quotation (RFQ) so suppliers price the same scope. Define:
- Locations: General edges, hole exits, internal intersections, threads, and exceptions.
- Allowed edge change: A controlled chamfer, radius, edge-break range, or other applicable requirement.
- Protected features: Sealing lands, fits, surfaces used to locate or measure the part, cosmetic faces, and edges that must remain functionally sharp.
- Acceptance conditions: The inspection method, observation conditions, coverage, and records needed.
- Delivered condition: Cleaning, coating, packaging, and the stage at which requirements apply.
State whether the requirement controls remaining burr material, the shape left after removal, or both. Define a numerical limit where the design needs one; do not rely on words such as “perfect” or “smooth.”
Identify what a burr dimension measures, such as height above an adjacent surface. Burr height and burr root thickness describe different characteristics; root thickness can also influence tool selection.
An approved sample can help explain appearance. Use it alongside the controlled drawing rather than as a substitute for dimensions the part must meet.
A manifold-block example: three edges, three requirements
Consider a hypothetical aluminum manifold with an outer housing edge, a sealing land, and an internal cross-drilled passage.
Location | What matters | What the drawing and inspection plan should address |
|---|---|---|
Outer handling edge | Comfortable handling and assembly | The allowed edge break and appearance requirement |
Edge beside the sealing land | Preserving the seal's intended support | The permitted material removal and protection of adjacent surfaces |
Internal bore intersection | Controlling remaining burr material and loose debris | Process access, acceptable edge condition, verification, and cleaning |
A broad finishing treatment might be suitable for some exterior surfaces while needing protection or another approach at the sealing land. A local operation may reach the exterior edges but leave the internal intersection unresolved.
This is why one general note can be insufficient. Assign requirements to the locations that perform different jobs, then let the supplier propose a route against those requirements.
How to agree on deburring inspection
Match the inspection to the requirement and the location. Exterior appearance, a small chamfer dimension, and an internal burr limit are different inspection tasks.
Requirement | Possible inspection approach | Limitation to resolve |
|---|---|---|
Accessible-edge appearance | Visual inspection under agreed lighting and magnification | The acceptance condition must be clear and repeatable |
Defined chamfer or radius | Suitable optical or profile measurement | The feature must be accessible and the method capable of checking the specified geometry |
Internal intersection | An appropriate bore-viewing method, or another agreed verification route | Field of view, access, illumination, and detectable defect size |
Residual loose particles | A separately defined cleanliness check | Particle results do not, by themselves, establish the condition of every attached edge |
KEYENCE's burr-observation examples show why focus and lighting affect how a burr is seen. For internal viewing, bore-lens specifications also illustrate the limits imposed by diameter, view direction, and working distance. These are equipment-selection considerations, not universal inspection prescriptions.
Agree on which features are checked on each part, which are sampled, and which records are supplied. When a numerical burr limit matters, confirm that the chosen method can assess it; a photograph alone may not be enough.
Plan cleaning and finishing in the right order
Deburring changes edges; cleaning removes unwanted residues and particles. Plan both. Flushing a passage should not be treated as proof that an attached burr was removed.
Agree on the sequence around anodizing, plating, or other surface treatments. Removing material after coating can alter the finished condition, while processing media or residues may need removal before the next operation.
Define the final condition on delivery, including any critical dimensions checked after finishing. The CNC surface-finish guide covers broader coating and roughness choices.
What affects CNC deburring cost?
Cost depends on the work required to achieve and demonstrate the agreed condition. Important drivers include:
- The material and burr condition entering the operation.
- The number of edges, their accessibility, and any internal intersections.
- Permitted material removal and surfaces that need protection.
- Tooling, programming, handling, and batch quantity.
- Cleaning, inspection coverage, documentation, and external processing.
Compare quotes against the same edge requirements. A lower price may cover ordinary exposed edges while leaving a difficult internal feature or inspection step outside the scope.
For repeat orders, include deburring requirements in revision control. A geometry or material change can require another process review even when the part looks similar.
Frequently asked questions
Does CNC deburring have to happen on a CNC machine?
No—the term can refer to deburring CNC-machined parts or to a programmed deburring operation. Clarify the proposed route if the distinction matters to the order.
Is a chamfer enough to guarantee burr removal?
No—a chamfer describes geometry, not the verified condition of every edge. Check the required chamfer and any remaining burrs at its boundaries or nearby features.
Can polishing or bead blasting replace deburring?
Only when the proposed process is shown to meet the specified edge requirement. A different surface appearance does not establish that an internal intersection or protected functional edge is acceptable.
Is there a standard edge-break size for every machined part?
No—the acceptable size depends on the design and applicable requirements. State the permitted change for functional edges and agree on general-edge treatment with the supplier.
Define the edge before approving the quote
A clear deburring request identifies the important edges, the material that may be removed, and the evidence needed for acceptance. With those decisions made, the supplier can review a process that fits the geometry and quantity.
