Tapping is often a practical starting point for repeated standard internal threads. Thread milling deserves a closer look when size adjustment, difficult materials, large threads, or the value of the part makes process control especially important. Neither method wins every job.
The useful question is which method can produce the required thread reliably at an acceptable total cost. Hole depth, access, material, tooling, inspection, and batch size all affect that decision.
Thread mill vs tap: the quick comparison

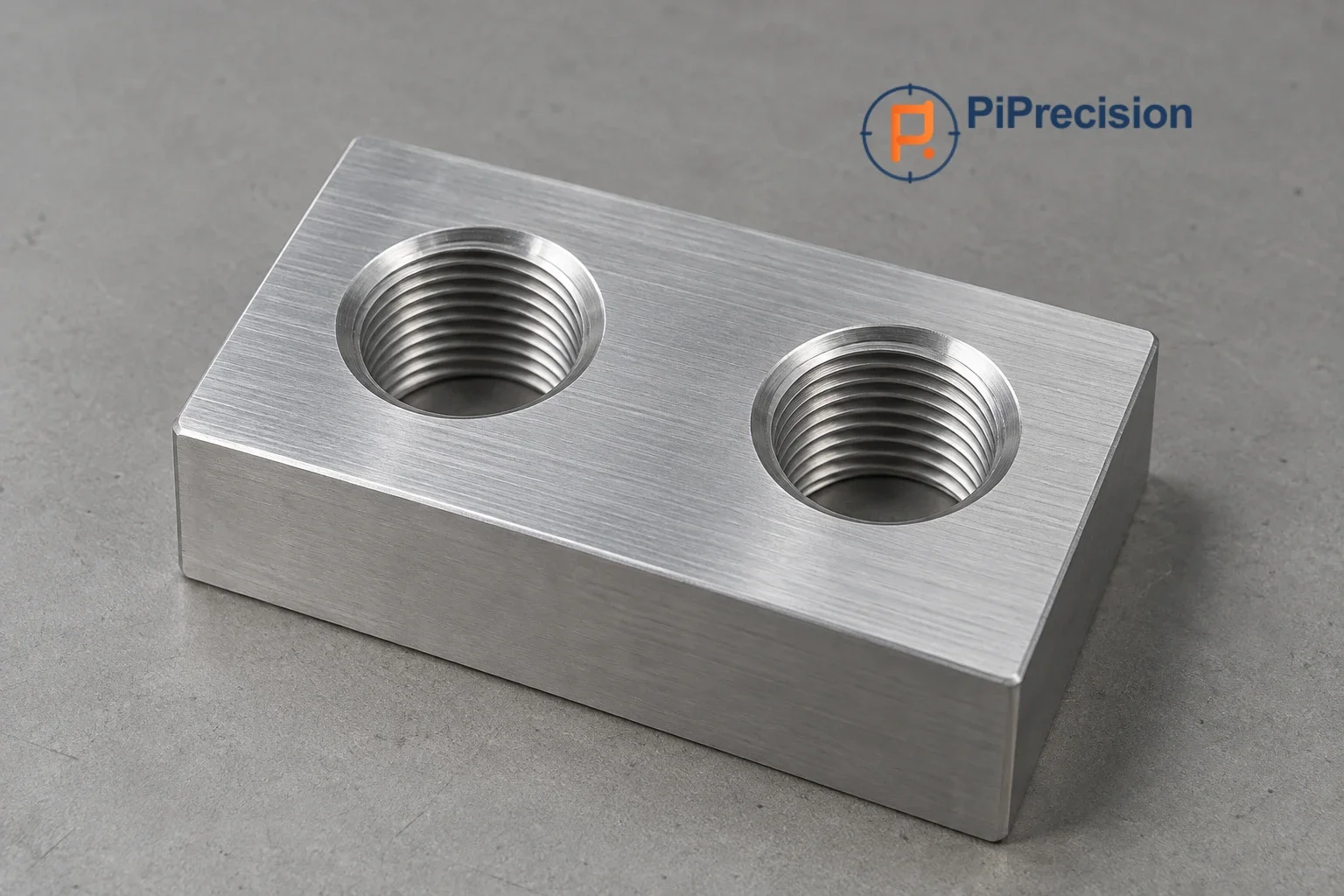

For this comparison, the main application is internal threads in CNC-machined metal parts.
Consideration | Tapping | Thread milling |
|---|---|---|
Tool motion | A rotating tap advances along the hole axis at the thread lead | A rotating cutter follows a helical path around the hole |
Repeated standard holes | Often an efficient production option | May add cycle time; tool style and application matter |
Size adjustment | Depends strongly on tap selection and process conditions | Toolpath offsets allow controlled size adjustment |
Chip behavior | Cutting taps make chips; forming taps displace material | Produces chips that still need reliable evacuation |
Blind holes | Requires appropriate tap geometry and bottom clearance | Can offer useful bottom access, subject to cutter geometry and clearance |
Tool failure | A broken tap can be trapped in the thread | A smaller cutter may be easier to remove, but damage and scrap remain possible |
Equipment | Needs a suitable tapping system and synchronized motion on CNC equipment | Conventional thread milling needs coordinated helical interpolation |
The comparison establishes selection factors, not guaranteed performance. Use tooling guidance for the actual application. Sandvik Coromant threading application guide
How tapping and thread milling work
Cutting taps and forming taps
A cutting tap removes material to produce an internal thread. Its flute geometry, cutting lead, and coolant arrangement must suit the material and hole. A tap intended to push chips through a hole is not automatically suitable for a closed-bottom feature.
A forming tap, also called a roll tap, creates the thread by displacing material. It does not generate cutting chips during thread formation. The workpiece must be suitable for forming, and the prepared hole and lubrication need close control.
Do not use a cutting-tap drill size by default for a forming tap. The wrong starting diameter can create an incomplete profile or excessive forming load. Guhring explains how hole diameter, material behavior, and lubrication affect the result. Guhring fluteless-tap guidance
Thread milling
In thread milling, the cutter rotates while the machine moves it around the bore and along its axis. This combined circular and axial motion creates the thread helix.
Tool design changes the process. A single-form cutter travels along the required thread length. A multi-form cutter has several axial thread profiles and may produce the required length in one helical revolution, with additional passes where needed.
That is why thread milling should not be described as necessarily requiring many passes. The tool, reach, material, and loading determine the strategy. Harvey Performance thread-mill selection guide
When tapping is a practical choice
Tapping is worth evaluating first when a part has familiar thread sizes, accessible holes, and a stable production process. A repeat order with many identical holes can reward a short cycle and straightforward tooling.
Consider an aluminum mounting plate with several standard through threads. If the selected tap produces consistent accepted holes, changing the process may add programming and cutting time without solving a real problem.
The conclusion can change when chip evacuation becomes unreliable, tools wear unpredictably, or the part geometry changes. A process that worked on a through hole may need a different tap and coolant strategy for a blind hole.
Treat cutting and forming as separate options during process review. Where the material and drawing permit forming, removing the threading-chip problem can be valuable. The supplier still needs to validate hole preparation and final acceptance.
When to use thread milling instead of tapping
Thread milling becomes particularly relevant when the shop needs to adjust thread size through tool offsets or manage a demanding material. It also deserves consideration when tapping torque is a constraint. EMUGE identifies these as practical reasons to consider the method. EMUGE thread-milling guidance
Part value also changes the decision. Imagine a housing that has already completed several long machining operations before its last threaded feature is made. Spending longer on that thread may be reasonable if it reduces the expected cost of losing the housing.
Cutter deflection, poor chip evacuation, incorrect offsets, or a programming error can still damage the thread. Compare those risks with the proposed tapping process before choosing.
For titanium parts or stainless-steel components, ask the supplier how the actual alloy and condition affect its choice. The material label alone is not enough to select the process.
Thread milling vs tapping in blind holes
A blind hole stops inside the part. Its depth needs more care than a through hole because the tool and chips cannot simply exit the far side.
Separate three requirements:
- Usable full-thread depth: the length of complete thread needed for the connection.
- Prepared-hole depth: the available cylindrical bore below the entrance.
- Total drilled depth: which may include the drill-point cone.
The tap's cutting lead or forming lead extends beyond the last complete thread it produces. A thread mill also needs clearance for its tip, entry, exit, and toolpath. Neither method creates unlimited access to the bottom.
For example, “M6 × 1, 10 mm minimum full thread” describes a different requirement from “10 mm drill depth.” If the part wall limits the available hole depth, show that limit separately and have the supplier review the remaining clearance.
Thread milling can be useful when full threads must extend close to the bottom, but the result depends on the selected cutter. Specify only the engagement the joint needs and confirm the available depth before production. Protolabs' published guidelines also distinguish thread depth from pilot-hole dimensions; its numerical limits are specific to its service. Protolabs threaded-hole guidelines
Which method gives better thread accuracy?
Both methods can produce threads that meet a specified tolerance class. Thread milling's ability to adjust size is useful, but it does not automatically establish better accuracy on every feature.
Distinguish thread size from hole location. A thread can accept its mating fastener yet be in the wrong position relative to the assembly datums. Conversely, a well-positioned bore can contain an unacceptable thread profile.
For a critical connection, define the thread designation and tolerance class, usable depth, location requirements, and inspection criteria. Agree on the appropriate gauges or measurements with the manufacturer.
A sample screw is useful for an assembly check, but its fit alone does not establish every thread requirement. Likewise, an overall dimensional report should not be assumed to include thread gauging unless that inspection was specified.
Finishing belongs in this discussion too. If plating or coating will affect the thread, identify the condition in which it must pass inspection. The supplier can then plan allowances, masking, or the order of operations as appropriate.
Compare cost per accepted part
Thread milling vs tapping cost should include programming, machining, tooling, inspection, and expected rework or scrap. The cheapest cutter does not necessarily produce the cheapest accepted component.
MSC's comparison, based on interviews with EMUGE and OSG specialists, highlights the tradeoff between tapping's production efficiency and thread milling's control advantages. MSC threading comparison
Use these questions when comparing quotations:
Question | Why it changes the decision |
|---|---|
How many identical holes and parts are required? | Small differences in cycle time accumulate across repeat production |
How much value is already in the part? | Late-stage scrap costs more than replacing an inexpensive blank |
Are several thread sizes involved? | Tool availability, tool changes, and programming become relevant |
Is the current process stable? | Breakage, inspection failures, and rework can outweigh nominal cycle savings |
Which requirements are difficult? | Deep threads, awkward access, and demanding acceptance criteria need focused planning |
Ask for the assumptions behind the price. If two suppliers quote different processes, check whether they allowed the same material, finish, thread depth, quantity, and inspection.
There is no universal batch size at which one method becomes cheaper. A prototype and a repeat production order may justify different choices, even with the same drawing.
What engineers should put on the drawing
A clear specification gives the manufacturer room to choose a reliable process. Include:
- Thread designation: size, pitch or threads per inch, thread family, and tolerance class.
- Hand and quantity: identify left-hand threads explicitly and show how many holes are required.
- Full-thread depth: state the usable length, especially for blind holes.
- Depth restrictions: identify limits needed to preserve wall thickness or avoid another feature.
- Feature location: define the datums and positional requirements that control assembly.
- Material and condition: include the actual alloy and heat treatment where relevant.
- Finish and acceptance state: indicate whether requirements apply before or after finishing.
- Process restrictions: state any prohibition on forming, repair inserts, or other changes when the design requires it.
Avoid using a CAD thread appearance as the only specification. Supply a controlled drawing with the model and resolve conflicts before quoting.
If the method is not a design or contractual requirement, ask the manufacturer to propose it. Our CNC DFM guide provides broader guidance on tool access, functional tolerances, and quote preparation.
Frequently asked questions
Is thread milling always slower than tapping?
No, although tapping often has a cycle-time advantage for standard repeat holes. Thread-mill design, number of passes, material, tool changes, and production interruptions affect the comparison. Check the actual process time.
Can one thread mill produce different thread sizes?
Some thread mills can cover several sizes within their design limits. Check the thread form, pitch compatibility, minimum bore, and reach. A single-form tool and a multi-form tool do not have identical flexibility.
Does thread milling eliminate broken-tool risk?
No. Thread mills can break and damage parts. A smaller cutter may offer a better recovery opportunity than a trapped tap, but the part still needs inspection before it can be accepted.
Are thread-milled threads stronger?
The method name alone does not establish thread strength. Material, thread geometry, engagement, defects, and service loading all matter. Do not substitute a manufacturing preference for joint-design verification.
Should a buyer specify tapping or thread milling?
Specify the required finished thread and any genuine process restrictions. When the method is flexible, let the manufacturer propose a route and explain how it meets cost and quality needs.
Select the method around the part
Start with the thread's function, hole geometry, material, and production quantity. Then compare the time and risk involved in delivering accepted parts.
For a simple repeat component, tapping may be the most practical route. For a valuable part with demanding threaded features, thread milling may justify more programming or cutting time.
