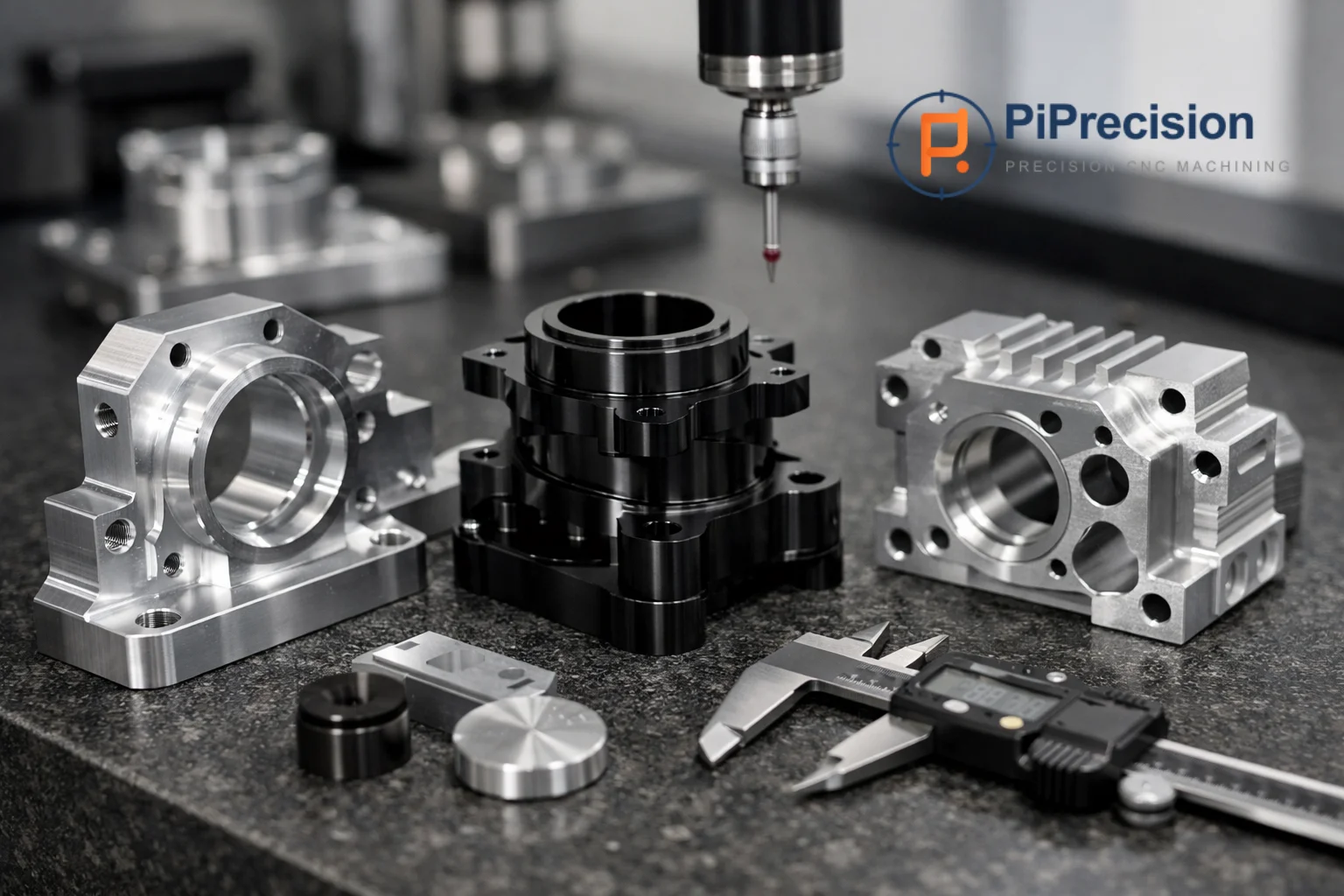

Aluminum 6061-T6 CNC Machining Guide: Properties, Finishes, DFM Tips & Supplier Advice

If you work with custom machined parts, there is a good chance you have already come across Aluminum 6061-T6.

It is one of those materials that shows up everywhere: aerospace brackets, medical device housings, EV components, robotics fixtures, electronics enclosures, and general industrial parts. And there is a good reason for that.

6061-T6 aluminum offers a very useful balance of strength, machinability, corrosion resistance, weight, cost, and finishing options. It is not always the strongest aluminum alloy, and it is not always the cheapest material on the list. But for many CNC machined parts, it is the most practical choice.

This guide walks through what makes 6061-T6 so useful, when to choose it, how to design better parts for CNC machining, and how to work with a reliable machining supplier.

What Is 6061-T6 Aluminum?

6061 aluminum is a heat-treatable aluminum alloy from the 6000 series. Its main alloying elements are magnesium and silicon.

Together, these elements help form magnesium silicide, which allows the material to become stronger through heat treatment.

The T6 temper means the material has gone through a controlled process of solution heat treatment, quenching, and artificial aging. In simple terms, the metal is heated, rapidly cooled, and then aged to reach a stronger and more stable condition.

That is why 6061-T6 is much stronger and more useful for engineering parts than soft, untreated aluminum.

Key Properties of 6061-T6 Aluminum

6061-T6 is popular because it does many things well.

It has good yield strength, solid tensile strength, strong corrosion resistance, and excellent machinability. It also responds well to finishing processes like anodizing, bead blasting, and chemical conversion coating.

Here are the typical properties engineers care about:

For most buyers, the big takeaway is this: 6061-T6 is strong enough for many functional parts, but still easy enough to machine efficiently.

That combination keeps performance reliable and costs under control.

Why 6061-T6 Is Good for CNC Machining

Some materials look good on a datasheet but become frustrating in the machine shop. 6061-T6 is different.

It cuts cleanly, forms chips well, and allows good surface finishes when the right tools and cutting parameters are used. This makes it a strong choice for both prototypes and production runs.

Machinists like 6061-T6 because it supports fast cycle times. Engineers like it because it is predictable. Buyers like it because it usually offers a good balance between part quality and cost.

That said, it still needs to be machined correctly. Poor chip evacuation, dull tools, or the wrong coating can lead to built-up edge, poor surface finish, and inconsistent dimensions.

6061-T6 vs. 6061-T651: What Is the Difference?

This is an important detail, especially for precision parts.

Standard 6061-T6 can contain internal stress from the quenching process. When a lot of material is removed during machining, that stress can release and cause the part to move or warp.

6061-T651 is stress-relieved by stretching after quenching. This makes it more stable during machining.

If your part is a thick bracket with simple features, 6061-T6 may be fine. But if you are machining a large plate, thin housing, baseplate, fixture, or part with heavy pocketing, 6061-T651 is often the better choice.

In plain language: if flatness and dimensional stability matter, ask your supplier whether T651 plate is the smarter option.

Common Applications for 6061-T6 CNC Machined Parts

6061-T6 is used across many industries because it is reliable, available, and cost-effective.

In aerospace, it is often used for non-critical structural parts, brackets, fittings, and internal components. These parts usually require strong documentation, such as material certificates and inspection reports.

In medical devices, 6061-T6 is used for diagnostic housings, lab equipment, surgical tool handles, and fixtures. Here, surface finish and cleanliness are especially important.

In automotive and EV manufacturing, it is commonly used for lightweight brackets, battery-related components, cooling plates, and housings. Buyers in this space usually care about cost, repeatability, and scalable production.

In robotics and industrial automation, 6061-T6 is often used for end-of-arm tooling, frames, baseplates, and custom fixtures. These parts need good stiffness without unnecessary weight.

In electronics, it is used for enclosures, chassis, heat sinks, and mounting plates. Its thermal conductivity and finishing options make it especially useful here.

6061-T6 vs. Other Aluminum Alloys

6061-T6 is a great default material, but it is not always the right answer.

The best alloy depends on the part’s load, environment, tolerance, finish, and budget.

Choose 7075-T6 when strength is more important than cost and corrosion resistance.

Choose 2024-T3 when fatigue resistance is the key concern.

Choose 5052 for formed sheet metal or marine-style corrosion resistance.

Choose 6082-T6 when working with European structural standards or when the design already specifies it.

For most general CNC machined aluminum parts, 6061-T6 remains the practical starting point.

CNC Machining Tips for 6061-T6 Aluminum

6061-T6 machines well, but the setup still matters.

For milling, shops often use 2-flute or 3-flute carbide end mills. These tools provide enough space for chips to evacuate cleanly, which is very important when cutting aluminum at higher speeds.

A high helix angle can help shear the material cleanly and improve surface finish.

For coatings, ZrN-coated tools or polished uncoated carbide tools are common choices. Many machinists avoid AlTiN coatings for aluminum because aluminum can stick to the coating and create cutting problems.

Coolant or mist lubrication also helps reduce heat and prevent chips from welding to the tool.

A good supplier will not just “run the file.” They will think through tool access, workholding, tolerance stack-up, finishing allowance, and inspection before production starts.

Tolerances for 6061-T6 CNC Machined Parts

6061-T6 can hold tight tolerances, but tighter is not always better.

A common mistake is applying very tight tolerances to every feature on the drawing. This can increase cost quickly without improving the part’s real-world performance.

For many CNC machined aluminum parts, standard tolerances are enough for general fit and function. Tight tolerances should be reserved for critical features such as bearing bores, sealing faces, alignment holes, and mating surfaces.

The best approach is simple: tighten only what needs to be tight.

That one habit can save a lot of machining time, inspection time, and cost.

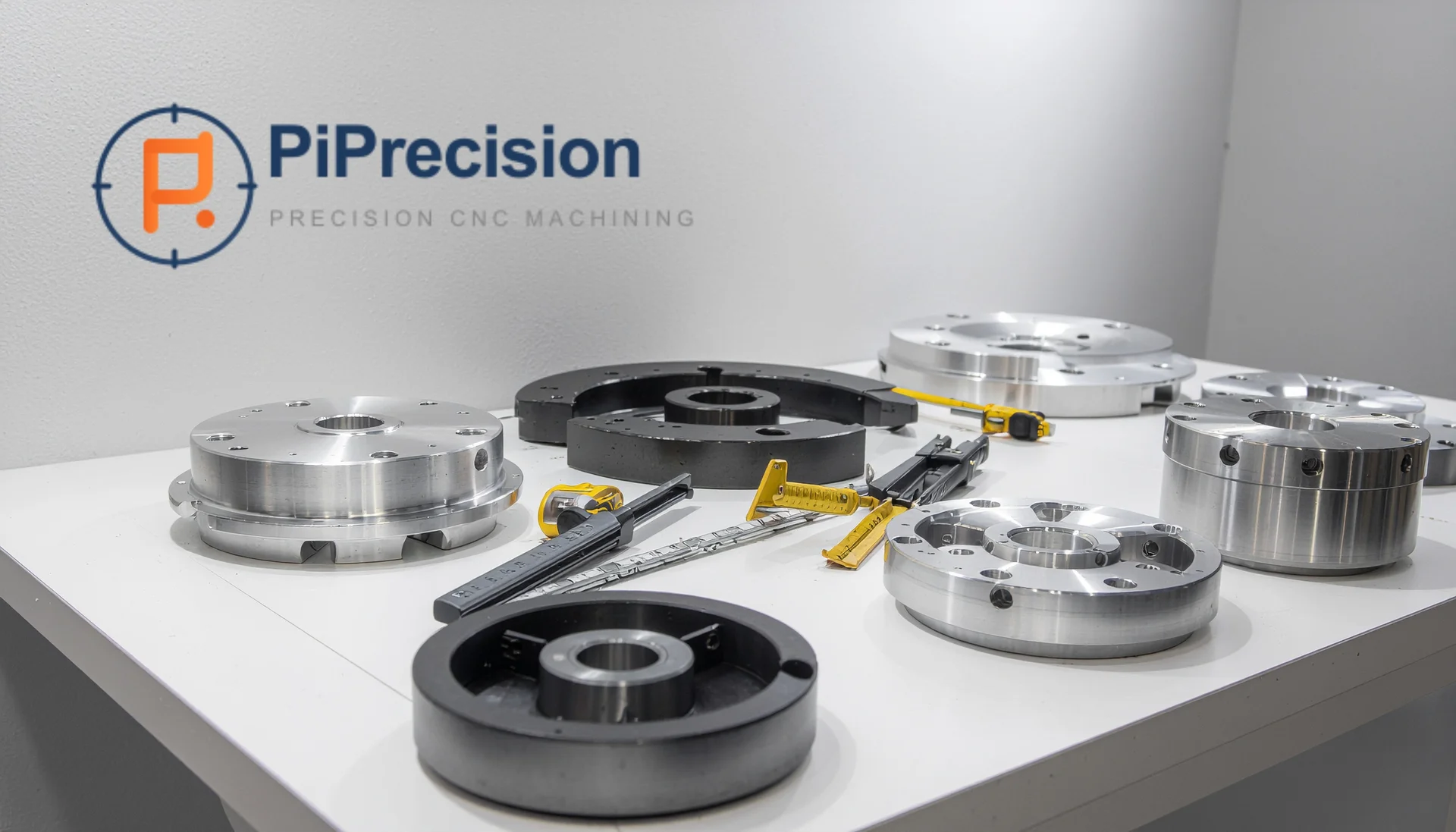

Surface Finish Options for 6061-T6 Aluminum

6061-T6 responds very well to finishing. That is one reason it is so widely used for visible and functional parts.

An as-machined finish is often enough for internal parts, brackets, and prototypes. It may show light tool marks, but it is usually clean and functional.

Bead blasting creates a smooth matte appearance and helps hide tool marks.

Type II anodizing adds corrosion resistance and allows color options. It is commonly used for consumer products, housings, and appearance parts.

Type III hardcoat anodizing creates a thicker, harder surface. It is a better choice for parts exposed to wear, abrasion, or harsh use.

Chemical conversion coating, often called Alodine or chromate conversion, improves corrosion resistance while keeping electrical conductivity. This is useful for electronic housings and grounding applications.

One tip from experience: do not over-specify surface roughness unless the part truly needs it.

A very fine finish can look attractive on a drawing, but it often adds machining time and cost.

Design for Manufacturability Tips

Good CNC parts usually start with good design choices.

You do not need to design like a machinist, but a few simple decisions can make your parts easier, faster, and cheaper to produce.

First, avoid sharp internal corners. CNC tools are round, so internal corners naturally need a radius. If you require a perfectly sharp inside corner, the part may need extra processes like EDM, which adds cost.

Second, avoid very thin walls when possible. Aluminum is strong, but thin walls can still flex during machining. This can create chatter, poor surface finish, or tolerance issues.

Third, keep deep pockets reasonable. Very deep cavities require longer tools, and longer tools are less rigid. That can slow machining and increase the risk of vibration.

Fourth, design threaded holes with enough engagement. For 6061-T6, thread engagement is often around 1.5 to 2 times the thread diameter, depending on the application.

For parts that will be assembled and disassembled often, consider threaded inserts. They protect aluminum threads from wearing out over time.

How to Reduce CNC Machining Cost

Reducing cost does not always mean using a cheaper supplier.

Often, the biggest savings come from smarter design and clearer communication.

Use standard material sizes when possible. Avoid unnecessary tight tolerances. Choose practical corner radii. Reduce the number of setups. Keep cosmetic requirements clear and realistic.

If a surface will never be seen, say so. If a feature is not function-critical, avoid applying a tight tolerance to it.

Also, provide both 3D CAD files and 2D drawings. The CAD file helps with programming, while the drawing explains tolerances, threads, finishes, material, and inspection requirements.

Clear files lead to clearer quotes.

Quality Control for 6061-T6 Machined Parts

For precision CNC parts, quality is not just about whether the first sample looks good.

A reliable supplier needs a process that can repeat that quality across the full production run.

Ask for material certificates to confirm the alloy and temper. For critical parts, request dimensional inspection reports, surface finish checks, and finishing certificates.

For aerospace or high-reliability work, ask whether the supplier can provide First Article Inspection documentation.

The goal is not paperwork for the sake of paperwork.

The goal is traceability, repeatability, and confidence.

Sourcing 6061-T6 CNC Machined Parts from China

China has a large and capable CNC machining supply base. Many companies source custom aluminum parts from Chinese manufacturers because they can offer strong pricing, fast production, and a wide range of secondary processes.

But buyers also have real concerns. And honestly, many of those concerns are reasonable.

Common worries include sample quality not matching production quality, poor communication, hidden outsourcing, material substitution, and intellectual property risk.

A good supplier should be willing to address these concerns directly.

For sensitive designs, use a proper NNN agreement or other legally reviewed IP protection document.

For larger orders, establish a golden sample. This approved sample becomes the physical benchmark for production quality.

Also, pay attention to communication. A strong supplier will not simply say “yes” to every request. They should point out risks, explain trade-offs, and offer practical DFM suggestions.

That kind of honesty is valuable.

Tariffs, Shipping, and Landed Cost

When comparing suppliers, do not look only at the unit price.

The real number is the landed cost. This includes part price, tooling or setup fees, finishing, packaging, freight, customs duties, tariffs, and inspection costs.

For US and EU buyers, tariff rules can change, especially for imported aluminum products and CNC machined components.

Before placing a large order, confirm the correct HS/HTS code, tariff rate, and customs requirements with a qualified logistics provider or customs broker.

A good supplier can help with packaging, export documents, and shipping options, but final import responsibility usually sits with the buyer.

When Should You Choose 6061-T6?

Choose 6061-T6 aluminum when you need a part that is lightweight, strong, corrosion-resistant, easy to machine, and suitable for finishing.

It is a strong choice for brackets, housings, fixtures, plates, frames, mounts, covers, and many custom mechanical parts.

Choose 6061-T651 when dimensional stability is especially important.

Choose another alloy only when the application clearly needs something different, such as the higher strength of 7075, the fatigue resistance of 2024, or the forming and corrosion benefits of 5052.

In many cases, 6061-T6 is the practical, reliable answer.

FAQ

Is 6061-T6 aluminum easy to machine?
Yes. 6061-T6 is one of the most machinable aluminum alloys. It cuts cleanly, supports fast cycle times, and can achieve good surface finishes with the right tools and parameters.

What is the difference between 6061-T6 and 6061-T651?
6061-T651 is stress-relieved by stretching, which makes it more stable during machining. It is often better for large, flat, thin, or heavily machined parts.

Is 6061-T6 stronger than 7075-T6?
No. 7075-T6 is much stronger, but it is usually more expensive and has lower corrosion resistance. Use 7075 only when the extra strength is truly needed.

Can 6061-T6 be anodized?
Yes. 6061-T6 is excellent for Type II anodizing and Type III hardcoat anodizing. It is one of the most commonly anodized aluminum alloys.

What is the best surface finish for 6061 aluminum parts?
It depends on the application. As-machined is often fine for functional parts. Bead blasting plus anodizing is common for cosmetic parts. Hardcoat anodizing is best for wear resistance.

Can 6061-T6 be welded after machining?
Yes, 6061-T6 can be welded. However, welding can reduce strength in the heat-affected zone unless the part is properly re-heat-treated.

What tolerance can 6061-T6 CNC parts achieve?
6061-T6 can achieve tight tolerances, but the practical tolerance depends on part geometry, size, wall thickness, machine capability, and inspection method. Tight tolerances should be used only where needed.

How can I reduce the cost of 6061-T6 CNC machined parts?
Use standard stock sizes, avoid unnecessary tight tolerances, design practical internal radii, reduce deep pockets, simplify setups, and clearly separate cosmetic surfaces from non-visible areas.

Final Thoughts

Aluminum 6061-T6 has earned its place as one of the most trusted materials for CNC machined parts.

It is strong without being difficult to machine. It finishes well without becoming overly expensive. It works across many industries without forcing engineers into unnecessary complexity.

The key is choosing the right temper, designing with machining in mind, and working with a supplier who understands both the technical details and the real-world sourcing concerns.

If you get those pieces right, 6061-T6 can be a dependable, cost-effective material for everything from early prototypes to full production parts. Ready to get a free quote?
