Fast Prototyping: A Practical Guide to Faster CNC Parts

Learn how to speed up CNC prototyping with the right process, clear CAD files, practical tolerances, focused inspection, and early DFM review.

When a development schedule is tight, it is tempting to define fast prototyping as one thing: getting a part delivered as soon as possible.

That is only part of the job. A prototype that arrives quickly but cannot answer the engineering question may cost you another design cycle. The better goal is to shorten the time between an idea, a useful physical test, and a confident design decision.

This guide explains how to choose a prototyping process, prepare a CNC prototype for faster manufacturing, and keep speed from creating expensive rework.

engineer reviewing a CNC-machined aluminum prototype beside a CAD model for fast prototyping

What fast prototyping really means

Fast prototyping is a development approach that turns a digital design into a physical part quickly enough to support repeated testing and improvement. It may use 3D printing, CNC machining, sheet metal fabrication, or rapid injection molding, depending on what the prototype must prove.

The important word is not just “fast.” It is useful.

Optimize the speed of learning, not only the speed of delivery

Imagine that you need to validate the position of four mounting holes. A simple polymer print may give you an answer sooner than a cosmetically finished aluminum part.

Now imagine that you need to test a bearing fit, threaded joint, sealing face, or loaded metal bracket. A CNC-machined prototype in the intended alloy may provide much more useful evidence, even if making it takes longer than printing a visual model.

The fastest process is therefore the one that reaches the next reliable decision with the least total delay.

Define what the prototype must prove

Before requesting a quote, finish this sentence:

This prototype must prove that ________.

The answer usually falls into one or more of these groups:

  • Concept: Does the general idea make sense?
  • Form: Are the shape, size, and appearance right?
  • Fit: Do the parts align and assemble correctly?
  • Function: Does the component work under realistic use?
  • Manufacturability: Can the design be produced and inspected consistently?
  • Customer or stakeholder review: Is the design clear enough to approve the next stage?

This one decision helps you choose the process, material, tolerance, finish, quantity, and inspection level without overbuilding the prototype.

Choose the right fast prototyping process

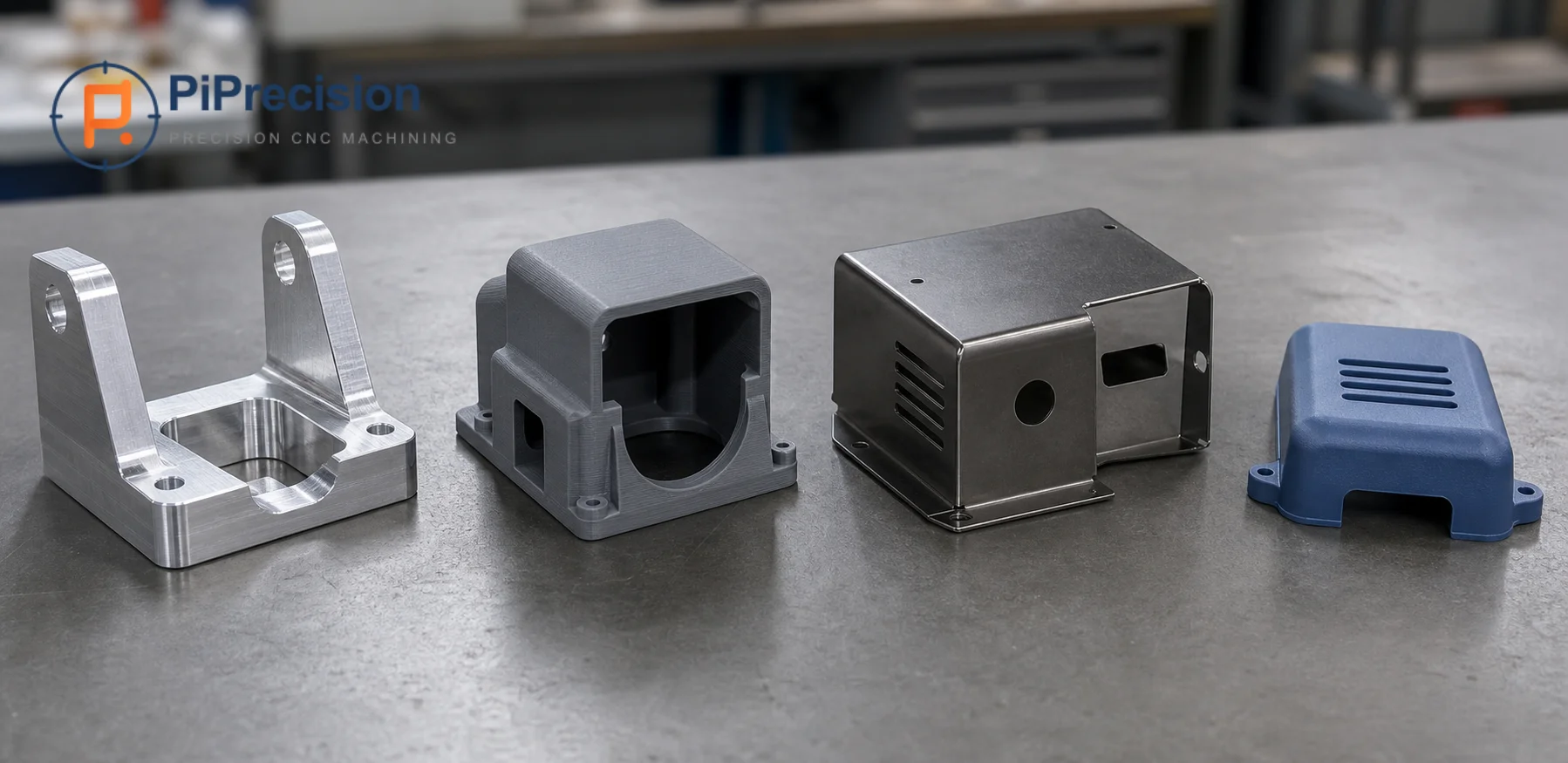

CNC-machined, 3D-printed, sheet-metal, and molded prototype parts compared on an engineering workbench

No prototyping process wins every comparison. Each provides a different balance of speed, material behavior, geometry, finish, cost, and production relevance.

Process

Often a good fit for

Important tradeoff

3D printing

Concept models, complex geometry, quick fit checks, internal channels, and early iterations

Printed material behavior, directional properties, accuracy, and finish may differ from the production part

CNC machining

Functional metal or plastic parts, precision interfaces, threads, flat surfaces, and final-material testing

Tool access, fixturing, setups, and material removal affect time and cost

Sheet metal fabrication

Brackets, covers, chassis, clips, and formed enclosures

Bend radii, tooling access, flat-pattern design, and finish requirements matter

Rapid injection molding

Later-stage plastic prototypes and low-volume parts that need molded behavior

Mold design and tooling add more upfront work than printing or machining

Early in development, it can be sensible to print a low-cost geometry model, correct obvious fit problems, and then machine a functional version. Using more than one process is often faster than forcing every prototype through the final production method.

When CNC machining is the right choice

CNC machining is especially useful when the prototype must behave like a real metal or engineering-plastic component.

A machined prototype starts with solid stock. That makes it a strong option for testing:

  • Bearing, shaft, pin, and bushing fits
  • Threaded connections and inserts
  • Flatness, perpendicularity, and datum relationships
  • Sealing faces and gasket interfaces
  • Heat-transfer components and housings
  • Structural brackets and loaded mechanisms
  • Surface finishes or coatings applied to the intended substrate

CNC milling and turning also produce features that can be inspected against a drawing. That matters when the purpose of the prototype is not merely to see the design, but to validate critical dimensions or prepare for a controlled production release.

CNC is not automatically the best choice for an early visual model. It becomes valuable when material, accuracy, finish, or function affects the answer you need.

Eight ways to accelerate a CNC prototype

Quick-turn machining begins before the machine starts. Many delays occur while a supplier clarifies files, searches for material, reviews difficult geometry, or waits for approval.

1. Send a complete, consistent RFQ package

A useful CNC prototype package normally includes:

  • A clean 3D CAD file, commonly STEP
  • A 2D PDF drawing when tolerances, threads, datums, finishes, or inspection requirements matter
  • Material grade and any acceptable alternatives
  • Quantity
  • Surface finish or coating
  • Critical-to-function features
  • Inspection or documentation requirements
  • A unique revision on every file
  • The date the parts are actually needed

Check that the model and drawing describe the same revision. A fast quotation is not helpful if production must stop to resolve contradictory dimensions later.

2. Identify critical features and relax the rest

Do not apply the tightest tolerance to the entire part simply because it is a prototype. Tight tolerances can require additional finishing passes, controlled setups, special measurement, and more review.

Instead, identify the few features that control fit, motion, sealing, alignment, or performance. Apply the required tolerance there and use a reasonable general tolerance elsewhere.

This does not mean lowering quality. It means directing machining and inspection effort toward the features that determine whether the test succeeds.

3. Select a practical, available material

Use the production material when its strength, thermal behavior, wear, corrosion resistance, or finishing response is part of the test.

If the prototype is only checking geometry, ask whether a more machinable or readily available grade would answer the same question. For example, a commonly stocked aluminum may be appropriate for an initial fit check even when a later validation part will use stainless steel.

Always document the substitution. A result from one material should not be presented as proof of another material's performance.

4. Design for cutter access and rigid tools

Round cutters cannot create sharp internal corners directly. Deep, narrow pockets also require long tools, which are less rigid and may need slower machining.

For a faster CNC prototype:

  • Add generous internal corner radii
  • Avoid deep, narrow cavities where possible
  • Open a pocket from one side if the function allows it
  • Keep small holes from becoming unnecessarily deep
  • Provide tool clearance around walls and bosses
  • Split an extremely difficult part only when assembly will not compromise the test

Ask for a DFM review before release if you are unsure. One radius or access change can remove a special tool or setup without changing the part's function.

5. Reduce setups and special operations

Every new orientation requires handling, alignment, and often a different fixture. Features on many faces, hard-to-reach undercuts, deep internal threads, and nonstandard hole sizes can extend the route.

Look for ways to place related features in accessible directions. Use standard drills, threads, radii, and stock sizes where the design allows.

Five-axis machining can reduce repositioning for suitable geometry, but it does not make every complex feature free or instant. The supplier still has to plan tool access, workholding, and inspection.

6. Defer nonessential cosmetic finishing

Anodizing, plating, passivation, bead blasting, polishing, painting, and custom color matching all add process steps. They may also require masking, transport, external processing, or dimensional allowance.

If the first prototype is for fit or function, consider testing it in the as-machined condition. Add the final finish to a later prototype when appearance, corrosion resistance, wear, electrical contact, or coating thickness becomes part of the test.

Do not remove a finish that affects function. A coating can change dimensions, friction, conductivity, sealing, or assembly behavior.

7. Match inspection to the test objective

“Inspect everything” sounds safe, but it may not be the quickest or most useful plan.

List the dimensions that decide whether the prototype passes its test. Agree on the measurement method and documentation before machining, especially for datums, geometric tolerances, threads, bores, or surface finish.

Visual inspection may be enough for an early concept part. A dimensional report or first-article-style inspection may be appropriate for a functional validation build. The right level depends on risk, not on the word “prototype.”

8. Control revisions and answer questions quickly

Prototype schedules often lose time after quoting because a revised model arrives without a new identifier, or an engineering question waits several days for an answer.

Use one owner for supplier communication. Record each revision, close obsolete files, and decide who can approve a DFM change. When the machinist raises a clear issue, a prompt answer keeps the job moving and prevents assumptions on the shop floor.

A fast prototyping workflow from CAD to test

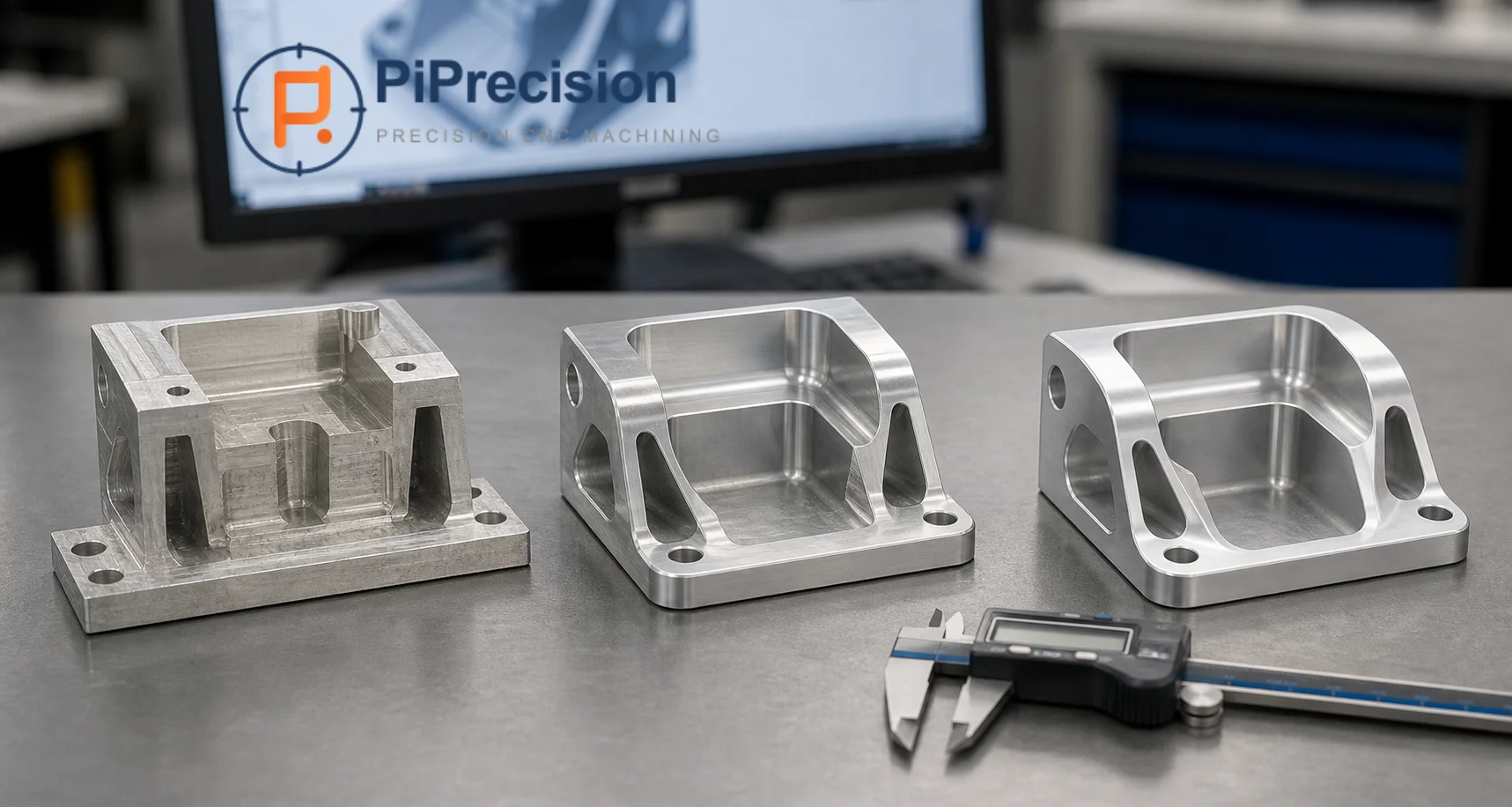

Three CNC prototype revisions showing an iterative fast prototyping workflow

A disciplined loop can be simple:

  1. Write the test objective. Define what must be learned and what counts as a pass.
  2. Choose the process. Match the prototype method to geometry, material, function, quantity, and schedule.
  3. Prepare the files. Send consistent CAD, drawings, specifications, quantity, revision, and target date.
  4. Review DFM. Resolve cutter access, setups, tolerance, material, finish, and inspection questions before release.
  5. Manufacture and inspect. Check the features that matter to the test.
  6. Test and record. Capture measurements, photos, failures, assembly notes, and design decisions.
  7. Revise deliberately. Change the design because of evidence, then issue a controlled new revision.

The result is a short learning cycle rather than a sequence of urgent, disconnected orders.

Common causes of avoidable prototype delay

Several familiar shortcuts actually make the process slower:

  • Sending only a screenshot instead of usable CAD
  • Leaving material, quantity, or finish undecided
  • Using vague notes such as “high precision” or “smooth finish”
  • Applying tight tolerances to noncritical dimensions
  • Requiring sharp internal corners without explaining their function
  • Requesting a full cosmetic finish for an early fit check
  • Sending model and drawing files with different revisions
  • Changing the design after material or machining has been released
  • Waiting until parts arrive to define the inspection method
  • Choosing a process because it is fashionable rather than because it answers the test question

A responsive supplier can help, but the engineering team still owns the test objective and design intent.

How to carry a fast prototype into production

A successful prototype is not automatically production-ready. One carefully handled part may not reveal issues with fixturing, tool wear, batch variation, finishing consistency, or inspection time.

Before increasing quantity:

  • Confirm that the production material and finish match the validated design
  • Review critical dimensions, datums, and acceptance criteria
  • Ask whether prototype workholding will change for the batch
  • Check whether any hand fitting or special adjustment was used
  • Record approved DFM changes in the released CAD and drawing
  • Agree on inspection records, material documents, and traceability needs
  • Consider a small pilot batch before the full order

This is where CNC prototyping offers a useful bridge. The same general manufacturing process can continue into low-volume production, but the process plan should still be reviewed for repeatability and cost.

How to evaluate a fast prototyping supplier

The shortest advertised lead time is only one part of supplier selection. Ask how the supplier manages the work that surrounds machining.

Useful questions include:

  • Does the supplier review CNC manufacturability before production?
  • Can it explain which requirement is driving time or cost?
  • Does it regularly machine your material and part type?
  • Are milling, turning, finishing, and inspection coordinated clearly?
  • How are revisions and technical questions controlled?
  • Can the supplier support both the prototype and a later pilot batch?
  • What inspection documentation is available when needed?
  • Are assumptions, exclusions, and finish requirements clear in the quote?

Good fast prototyping depends on communication as much as machine speed.

Fast prototyping FAQ

Is fast prototyping the same as rapid prototyping?

The terms are commonly used in the same way. Rapid prototyping is the more established industry phrase, while “fast prototyping” emphasizes shortening the design-and-test cycle. Neither term refers only to 3D printing.

Is CNC machining faster than 3D printing?

It depends on the part and the test. 3D printing is often efficient for early geometry and complex shapes. CNC machining may reach a reliable answer sooner when the prototype needs final-material behavior, precision interfaces, threads, flat surfaces, or an applied production finish.

Do I need a 2D drawing for a CNC prototype?

A 3D model may be enough for a simple geometry check under the supplier's standard practices. Add a 2D drawing when specific tolerances, datums, threads, surface finishes, notes, or inspection requirements matter.

Should a prototype use production tolerances?

Use production tolerances on features whose variation affects the test. Relax unrelated features when doing so does not change the result. A blanket tight tolerance can add work without increasing what you learn.

Should I finish a prototype before testing it?

Only when the finish affects the question being tested. Finish can influence appearance, corrosion resistance, wear, friction, conductivity, coating thickness, and fit. Otherwise, an as-machined first iteration may produce useful feedback sooner.

How many prototype parts should I order?

Order enough to perform the planned tests and account for any destructive testing or assembly variants. One part may be enough for an early fit check; reliability, process, or repeatability questions usually require more evidence. Define the test before choosing the quantity.

Conclusion

Fast prototyping is not a race to make the first available part. It is a structured way to get useful physical evidence with the least avoidable delay.

Define the test, select the right process, focus tolerances and inspection on critical features, and resolve manufacturability questions before machining. Those habits often save more time than asking the shop floor to rush an unclear design.

PiPrecision supports global customers with CNC milling, CNC turning, surface finishing, and prototype-to-production manufacturing in Shenzhen. If you are unsure which material, tolerance, finish, or inspection plan fits your prototype, upload your CAD files and drawing or contact [email protected] for a practical review before quoting.
