Robots may look smart because of their software, sensors, and controls, but their real performance still depends on the physical parts holding everything together.
A robot arm cannot repeat its position accurately if the joint housing is off. A gripper cannot hold parts reliably if the fingers flex too much. A mobile robot cannot run smoothly if its chassis is weak, heavy, or poorly aligned.
That is why CNC machining for robotics is so important.
CNC machining helps engineers create strong, accurate, functional parts from real production materials like aluminum, stainless steel, titanium, and engineering plastics. For robotics teams, this is especially useful when a prototype needs to behave like the final product.
What Is CNC Machining for Robotics?
CNC machining is a manufacturing process that cuts material from a solid block, plate, bar, or billet to create a finished part.
For robotics, CNC machining is commonly used to make robot joints, arm links, grippers, bearing housings, shafts, brackets, chassis parts, sensor mounts, and end-of-arm tooling.
Common CNC processes include milling, turning, drilling, tapping, and 5-axis machining. After machining, parts may also go through finishing processes such as anodizing, bead blasting, plating, or passivation.
The main reason robotics companies use CNC machining is simple: robot parts often need to be strong, lightweight, accurate, and repeatable.
Why CNC Machining Is So Useful for Robot Parts
Robotics parts are different from many standard machine parts.
They often move quickly, carry loads, repeat the same motion thousands or millions of times, and fit into compact assemblies with motors, bearings, sensors, and cables.
CNC machining is useful because it offers:
- High dimensional accuracy
- Strong material properties
- Good surface finish
- Wide material choices
- Fast prototype turnaround
- Repeatable small-batch production
Unlike many 3D printed parts, CNC machined parts are cut from solid material. That gives them more predictable strength in every direction.
For load-bearing robot parts, that matters a lot.
CNC Machining vs. 3D Printing for Robotics
3D printing is very useful in robotics development. It is great for early concepts, quick fit checks, covers, mockups, and low-load parts.
But when a part needs to carry real loads, hold tight tolerances, or survive repeated motion, CNC machining is often the better choice.
Factor | CNC Machining | 3D Printing |
|---|---|---|
Strength | Strong and uniform | Often weaker between layers |
Tolerance | Very accurate | Usually less accurate |
Surface finish | Smooth finishes possible | Often needs post-processing |
Materials | Metals and engineering plastics | Plastics and some metals |
Best use | Functional robot parts | Concept models and low-load parts |
A simple way to think about it: use 3D printing when you need speed and shape exploration. Use CNC machining when the part needs to work like a real production component.
Common CNC Machined Parts in Robotics
CNC machining is used across many types of robotics and automation systems.

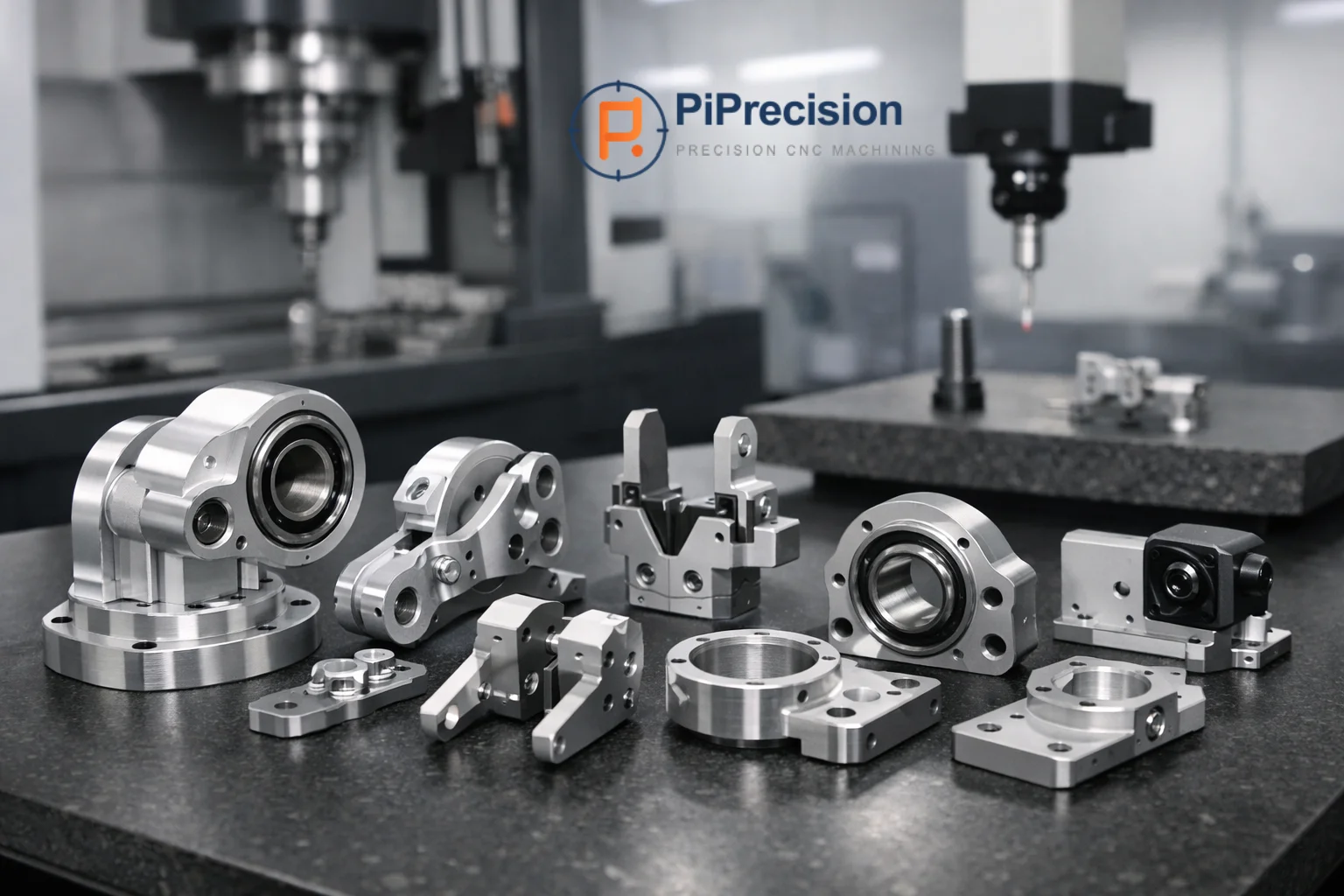

Common parts include robot arm links, joint housings, bearing seats, shaft couplings, gripper fingers, gearbox housings, mobile robot chassis, sensor brackets, and automation fixtures.
For a robotic arm, CNC machining is often used for lightweight aluminum links and precision joint parts.
For an autonomous mobile robot, it may be used for chassis plates, wheel mounts, suspension parts, and sensor frames.
For a humanoid robot, CNC machining can support lightweight skeleton parts, ankle joints, hip structures, and compact load-bearing frames.
For industrial automation, CNC machined parts are common in end-of-arm tooling, custom fixtures, pick-and-place systems, and machine vision mounts.
Why Tolerances Matter So Much in Robotics
In robotics, a small error in one part can become a much bigger problem in the full assembly.
This is because robots are built as a kinematic chain. One joint connects to another, then another, and so on. If an early joint is slightly misaligned, the error can grow as it moves toward the end effector.
For example, a tiny error in a shoulder joint may create a visible positioning error at the robot’s wrist or gripper.
That is why features like bearing bores, shaft fits, mating faces, flatness, parallelism, concentricity, and runout must be controlled carefully.
At the same time, not every surface needs an ultra-tight tolerance.
A good drawing should clearly mark the critical dimensions and keep non-critical areas practical. This helps control cost while protecting the features that actually affect robot performance.
Best Materials for CNC Machined Robot Parts
Material choice affects weight, stiffness, cost, wear resistance, and service life.
There is no single “best” material for every robot part. The right choice depends on what the part needs to do.
Aluminum 6061-T6
Aluminum 6061-T6 is one of the most common materials for robot frames, brackets, covers, chassis parts, and mounting plates.
It is lightweight, easy to machine, corrosion resistant, and cost-effective.
For many robotics projects, 6061-T6 is the best starting point.
Aluminum 7075-T6
Aluminum 7075-T6 is much stronger than 6061-T6. It is often used for high-stress parts such as robot joints, humanoid skeleton components, high-load links, and compact structural parts.
The tradeoff is that 7075-T6 can be more difficult to machine and more prone to stress-related distortion, especially during heavy pocketing.
Use 7075-T6 when the extra strength is truly needed.
Stainless Steel 17-4 PH
17-4 PH stainless steel is a strong choice for precision shafts, couplings, torque sensors, and highly loaded mechanical parts.
It offers high strength and good stiffness. It is also useful when a part needs better wear resistance or corrosion resistance than aluminum.
It is harder to machine than aluminum, so it usually costs more.
Titanium Ti-6Al-4V
Titanium Ti-6Al-4V is strong, lightweight, corrosion resistant, and biocompatible.
It is often used in surgical robotics, medical end-effectors, and weight-critical robot parts.
The downside is machining difficulty. Titanium generates heat at the cutting edge, wears tools quickly, and requires careful process control.
PEEK and Engineering Plastics
PEEK and other engineering plastics are used for low-friction guides, cleanroom parts, bushings, rollers, insulators, and lightweight non-metal components.
PEEK has excellent chemical resistance and can work well in demanding environments.
However, it expands with heat and can deform if machined incorrectly. Sharp tools and good cooling are important.
Material | Best For | Main Benefit |
|---|---|---|
6061-T6 aluminum | Frames, brackets, chassis | Lightweight and cost-effective |
7075-T6 aluminum | High-load joints and links | High strength-to-weight ratio |
17-4 PH stainless steel | Shafts and couplings | Strength and stiffness |
Titanium Ti-6Al-4V | Medical and lightweight parts | Strong and biocompatible |
PEEK | Bushings, guides, cleanroom parts | Low friction and chemical resistance |
Lightweight Design for Robotics
Weight matters in robotics.
A lighter part can reduce motor load, improve battery life, increase speed, and allow higher payload capacity.
But lightweighting has to be done carefully. Removing too much material can create weak, flexible, or difficult-to-machine parts.
Good lightweight CNC design often uses pockets, ribs, and thin but supported walls. The goal is not simply to remove as much material as possible. The goal is to keep stiffness where the part needs it.
Avoid very deep pockets with sharp corners. Use practical internal radii so tools can move smoothly. Keep thin walls thick enough to avoid chatter and deflection.
For humanoid robots and robotic arms, this balance is especially important because each extra gram can affect joint inertia and motion control.
Why 5-Axis CNC Machining Helps Robotics
Many robotics parts are compact and complex.
They may have angled holes, curved surfaces, undercuts, tight bearing features, and multiple mounting directions. Making these parts on a basic 3-axis machine may require several setups.
Each setup adds time and creates a chance for alignment error.
5-axis CNC machining helps by allowing the tool to approach the part from more directions. This can reduce setups, improve accuracy, and make complex geometries easier to machine.
It is especially useful for joint housings, lightweight robot skeleton parts, custom grippers, surgical robot components, and sensor brackets.
For parts where several features must align perfectly, fewer setups can make a real difference.
Surface Finishing for Robot Parts
Surface finishing is not only about appearance.
In robotics, finishing can affect wear resistance, corrosion protection, friction, electrical conductivity, and final dimensions.
Common finishes include Type II anodizing, Type III hardcoat anodizing, bead blasting, electroless nickel plating, chrome plating, and passivation.
For aluminum robot parts, anodizing is very common. Type II anodizing is often used for color and corrosion resistance. Type III hardcoat anodizing is better for wear resistance.
One important warning: coatings add thickness.
If a bearing bore is machined to final size before anodizing, the bore may become too small after coating. The same issue can happen with shafts, sliding surfaces, and precision fits.
A good supplier should account for coating allowance before machining.
DFM Tips for Robotics CNC Machining
Design for Manufacturability, or DFM, means designing parts so they are easier, faster, and more reliable to produce.
For robotics CNC parts, a few simple design choices can save a lot of time and cost.
Avoid sharp internal corners. CNC tools are round, so internal corners need a radius.
Use standard hole sizes and thread sizes when possible. Custom features can increase tooling time and inspection time.
Avoid extremely thin walls unless they are truly needed. Thin walls can flex during machining.
Keep deep pockets reasonable. Deep cavities require longer tools, and longer tools are less rigid.
Clearly mark critical features on the drawing. If a bearing bore is critical, say so. If a cosmetic surface is not critical, say that too.
Plan finishing early. If a part will be anodized or plated, include that in the drawing and tolerance plan.
Provide both 3D CAD files and 2D drawings. The CAD file helps with programming, while the drawing explains tolerances, materials, threads, finishes, and inspection needs.
Rapid Prototype CNC Machining for Robotics
Robotics teams often move fast.
A design may change every week during early development. A bracket may need to be stronger. A joint may need more clearance. A gripper finger may need a new profile after testing.
This is where rapid prototype CNC machining is valuable.
CNC prototypes can be made from the same material planned for production, so testing results are more realistic.
This is useful for fit testing, motion validation, load testing, wear testing, pilot builds, and investor demos.
For functional robot parts, CNC prototypes often provide more useful feedback than plastic concept models.
From Prototype to Production
A strong CNC supplier should support more than one prototype order.
Ideally, they help you move from first prototype to design revision, then to small-batch production, and eventually to repeatable manufacturing.
This matters because the best time to fix manufacturing issues is early.
If a supplier gives DFM feedback during the prototype stage, you can avoid costly redesigns later. You can also lock in material choices, finishing requirements, inspection standards, and production fixtures before scaling.
For robotics startups and NPI teams, this can shorten the path from test bench to real deployment.
Quality Control for Robotics CNC Parts
Robotics parts need careful inspection because small errors can affect motion, fit, noise, and reliability.
Important quality documents may include material certificates, CMM inspection reports, Certificates of Conformance, First Article Inspection reports, surface finish reports, and coating thickness reports.
A CMM report is especially useful for tight-tolerance robot parts. It verifies dimensions, positions, and geometric features using a coordinate measuring machine.
For first production runs, a First Article Inspection helps confirm that the first completed part meets the drawing before the full batch moves forward.
Document | What It Confirms |
|---|---|
Material certificate | Correct material grade |
CMM report | Dimensional accuracy |
FAI report | First part meets requirements |
Coating report | Finish thickness and quality |
Certificate of Conformance | Supplier compliance |
Quality control is not just paperwork. It is how you make sure the tenth part matches the first, and the hundredth part still fits the assembly.
Common Sourcing Risks and How to Avoid Them
Sourcing custom robot parts can be stressful, especially when tight tolerances and fast deadlines are involved.
Common risks include drawing misinterpretation, GD&T errors, material substitution, poor communication, hidden outsourcing, missing inspection equipment, and shipping delays.
The best way to reduce risk is to be clear early.
Ask the supplier for DFM feedback before production. Confirm material grades and finishing requirements. Request inspection reports for critical parts. Start with a prototype or pilot batch before placing a larger order.
If the design is sensitive, use proper IP protection documents such as NDAs or NNN agreements.
A reliable supplier should be comfortable discussing risks, not just saying yes to everything.
Sourcing CNC Machined Robot Parts from China or Shenzhen
Many robotics companies source CNC machined parts from China because of the strong manufacturing supply chain, competitive pricing, and fast access to finishing services.
Shenzhen is especially attractive for robotics and automation projects because it has a deep ecosystem of mechanical manufacturing, electronics, hardware development, and export logistics.
The goal is not just a low price. The goal is a supplier who can deliver accurate parts consistently.
What Affects the Cost of Robotics CNC Machining?
CNC machining cost depends on several factors.
The biggest cost drivers are material, part complexity, tolerance requirements, number of setups, surface finish, inspection needs, quantity, and lead time.
Aluminum parts are usually more affordable than titanium or stainless steel parts.
Simple 3-axis parts are usually cheaper than complex 5-axis parts.
Loose tolerances are cheaper than tight tolerances.
A part with deep pockets, thin walls, and several precision bores will cost more than a simple mounting plate.
If you want to reduce cost, focus on practical tolerances, standard materials, reasonable radii, and clear drawings.
How to Prepare an RFQ for Robotics CNC Machining
A good RFQ helps your supplier quote faster and more accurately.
Include your 3D CAD file, 2D drawing, material grade, quantity, surface finish, critical tolerances, thread requirements, inspection requirements, and target delivery date.
It also helps to explain the part’s application.
For example, tell the supplier if the part is used in a bearing assembly, cleanroom robot, outdoor mobile robot, surgical device, or high-load joint.
That context helps the supplier catch issues before machining begins.
Questions to Ask a Robotics CNC Machining Supplier
Before choosing a supplier, ask practical questions.
Can you machine aluminum, stainless steel, titanium, and PEEK?
Do you support 5-axis CNC machining?
Can you provide DFM feedback before production?
What tolerances can you hold for bearing bores, shaft fits, and mating faces?
Can you provide CMM inspection reports?
Can you account for anodizing or plating thickness?
Do you support both prototype and small-batch production?
How do you protect customer design files?
What is your typical lead time for prototype robotics parts?
A good supplier should answer these clearly.
FAQ
What is CNC machining for robotics?
CNC machining for robotics is the process of making custom robot parts from metals or engineering plastics using computer-controlled machines. It is used for joints, frames, grippers, shafts, brackets, housings, and tooling.
Is CNC machining better than 3D printing for robot parts?
For functional, load-bearing, and tight-tolerance parts, CNC machining is usually better. 3D printing is useful for early concepts, lightweight mockups, and low-load parts.
What materials are best for CNC machined robot parts?
Common choices include 6061-T6 aluminum, 7075-T6 aluminum, 17-4 PH stainless steel, Ti-6Al-4V titanium, and PEEK. The best material depends on load, weight, wear, environment, and cost.
Why are tolerances important in robotics?
Small dimensional errors can grow across a robot’s kinematic chain. This can reduce accuracy, repeatability, and smooth motion.
Why use 5-axis CNC machining for robotics?
5-axis machining can produce complex robot parts with fewer setups, better alignment, and improved accuracy on angled or curved features.
How does anodizing affect precision robot parts?
Anodizing adds surface thickness. For bearing bores, shafts, and sliding fits, this coating thickness must be included in the machining plan.
How can I reduce the cost of CNC machined robotics parts?
Use practical tolerances, standard materials, simple radii, clear drawings, and avoid unnecessary cosmetic or ultra-tight requirements.
Final Thoughts
Robotics is a demanding field, but good parts make the job much easier.
When your components are accurate, strong, lightweight, and properly inspected, your robot has a much better chance of moving smoothly and lasting through real testing.
CNC machining is one of the most reliable ways to make functional robot parts, especially when you need real materials, tight tolerances, and fast design iterations.
The key is to choose the right material, design with manufacturing in mind, plan finishing early, and work with a supplier who understands robotics hardware. Get a free quote now!
