Medical device CNC machining is not just "high precision machining with smaller parts." It sits at the intersection of engineering, quality control, documentation, material selection, surface finish, and risk management.
A medical device component may look simple, but the requirements behind it can be serious. A small machined part might need a specific material grade, controlled surface finish, burr-free edges, dimensional reports, lot traceability, cleaning instructions, and revision history. For some projects, the machining supplier also needs to support the manufacturer's quality and regulatory file.
This guide explains how CNC machining fits into medical device development and production, what buyers should prepare, and how to reduce risk when sourcing precision medical components.
What makes medical device CNC machining different
CNC machining is widely used for medical device components because it can produce accurate parts from metals and engineering plastics without dedicated tooling. That makes it useful for prototypes, design verification builds, pilot production, and lower-volume production.
The difference is that medical projects usually need more control than ordinary industrial parts.
Precision is only one part of the job
Precision matters, but it is not the whole story. A supplier may hit a tight tolerance and still fail the project if material documentation is missing, edges are unsafe, surface finish is inconsistent, or the wrong revision was machined.
Medical CNC work often requires control over:
- Material grade and supplier traceability
- Critical dimensions and inspection method
- Surface roughness and finish
- Burrs, sharp edges, and particle generation
- Cleaning and packaging expectations
- Revision control
- Lot separation
- Certificates and inspection records
The part has to be machined correctly and documented correctly.
Risk, traceability, and documentation matter
Medical device companies usually work within a risk-based quality system. If a machined component affects safety, performance, sterility, usability, or assembly, the project team may need evidence that the part was made and inspected according to defined requirements.
That does not mean every CNC shop must act as the legal manufacturer of the device. It means the supplier needs to understand the documentation and process controls the customer requires.
The component supplier is not automatically the finished device manufacturer
This distinction is important.
A CNC machining supplier may manufacture a component used in a medical device, a surgical instrument, a diagnostic system, or production equipment. That does not automatically make the supplier responsible for device classification, regulatory submission, clinical claims, or finished-device approval.
Those responsibilities typically remain with the medical device manufacturer or specification owner. The machining supplier supports the project by making parts to controlled drawings, following agreed quality requirements, maintaining records, and providing requested documentation.

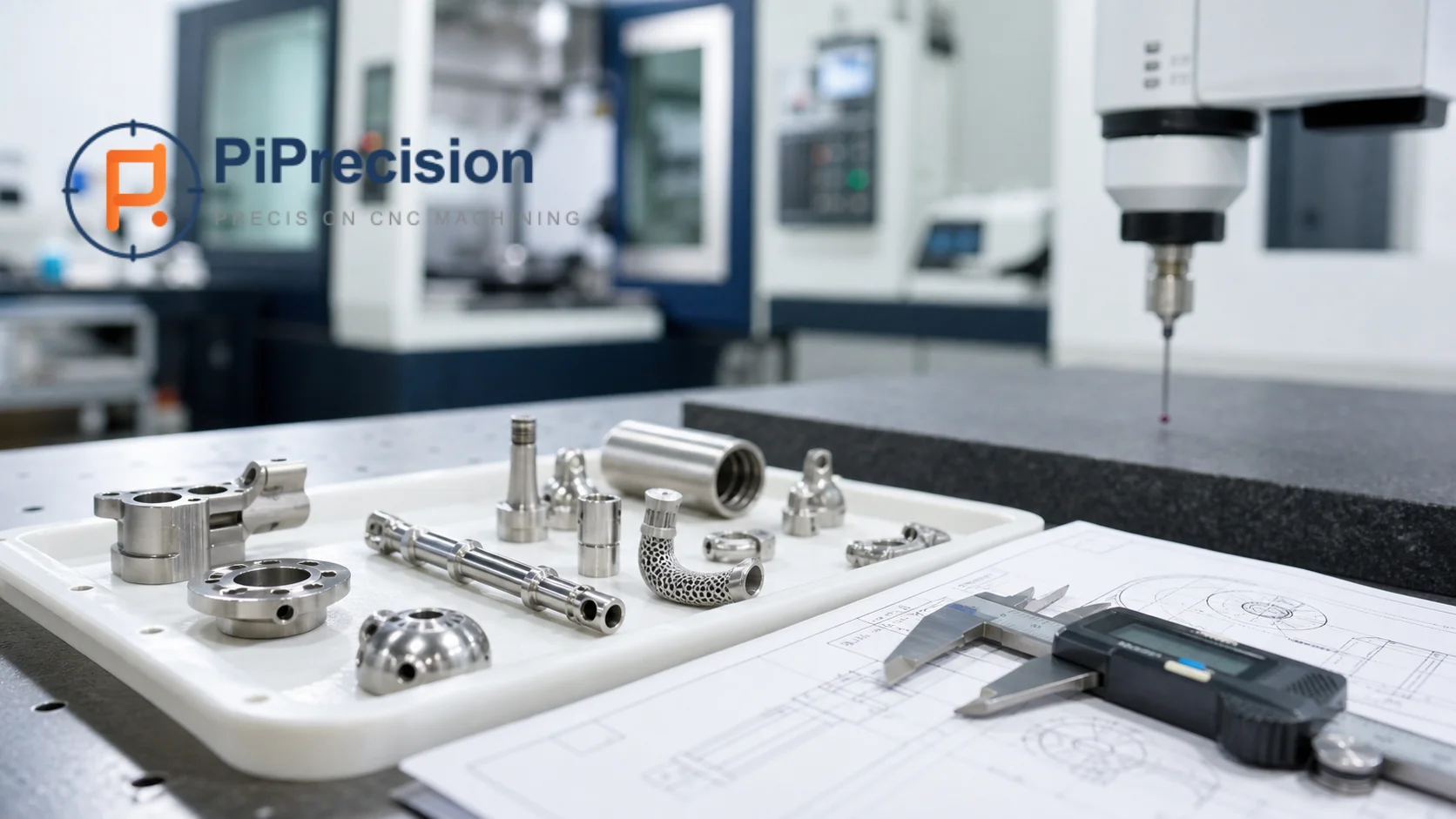

Common medical device parts made by CNC machining
CNC machining is used across many medical and life science applications. The exact requirements depend on whether the part is a finished device, a component, an accessory, a prototype, a fixture, or manufacturing equipment.
Common examples include:
- Surgical instrument handles, shafts, clamps, and housings
- Orthopedic and dental prototype components
- Endoscope and imaging equipment parts
- Diagnostic equipment housings and fluidic components
- Laboratory automation parts
- Robotic surgery and motion-control components
- Wearable device enclosures and sensor housings
- Device assembly fixtures and test fixtures
- Sterilization trays and custom tooling
Some parts contact patients. Some contact fluids. Some are used only inside equipment. Some never leave the production floor. Each use case changes the material, finish, cleaning, inspection, and documentation requirements.
Regulatory and quality context buyers should understand
CNC machining is a manufacturing process. Medical device compliance is a broader system. Buyers should understand the major quality and regulatory terms so they can ask suppliers the right questions.
FDA QMSR and ISO 13485
For the United States, FDA's Quality Management System Regulation, or QMSR, became effective on February 2, 2026. It amends 21 CFR Part 820 and incorporates ISO 13485:2016 by reference for medical device quality management systems.
ISO 13485 is the internationally recognized quality management system standard for organizations involved in medical device design and manufacturing. It is commonly used by medical device manufacturers and by suppliers that support regulated device programs.
For a CNC machining buyer, the practical question is not only "Do you have a certificate?" It is also:
- Can the supplier control revisions?
- Can they separate lots?
- Can they retain inspection records?
- Can they provide material certificates?
- Can they support nonconformance and corrective action processes?
- Can they follow customer-specific quality requirements?
Certification can help, but the actual process discipline matters.
ISO 14971 risk management
ISO 14971:2019 is the international standard for applying risk management to medical devices. It focuses on identifying hazards, estimating and evaluating risk, controlling risk, and monitoring risk controls through the device life cycle.
For CNC machined parts, risk management may influence the drawing and quality plan. For example, a surface that contacts tissue, a bore that controls fluid flow, or a shaft that carries load may require stricter controls than a non-critical cover plate.
This is why buyers should tell the supplier which features are critical. The supplier cannot prioritize risk-sensitive features if everything on the drawing looks equally important.
Device classification and intended use
FDA device classification is risk based and depends on intended use and indications for use. In the U.S., devices are generally grouped into Class I, Class II, or Class III, with higher classes requiring greater regulatory controls.
This matters because the same machined shape could have different requirements depending on intended use. A stainless steel bracket used in lab equipment is not the same as a patient-contacting instrument or implant-related component.
Do not ask a machining supplier to guess the regulatory class of your device. Provide the component's intended use, critical requirements, and required documentation.
EU MDR and market-specific expectations
If the product is intended for the European market, the EU Medical Device Regulation framework may affect documentation, supplier controls, traceability, and technical file expectations. Other markets have their own regulatory requirements.
The key point for sourcing is simple: define the target market and quality requirements early. A supplier can support a requirement only if it is known before quoting and production.

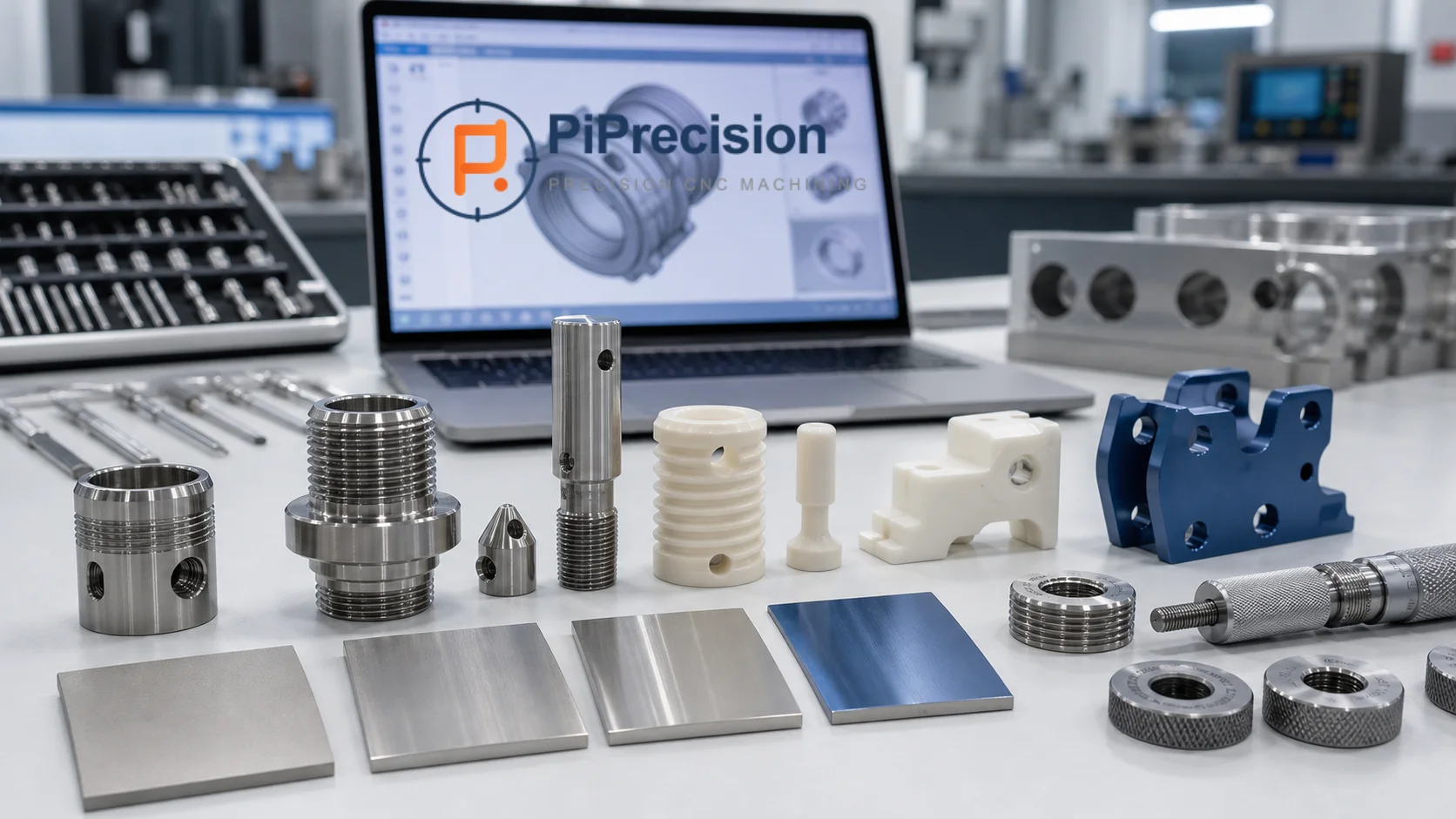

Materials used in medical CNC machining
Material selection affects strength, corrosion resistance, weight, sterilization compatibility, surface finish, biocompatibility evaluation, machinability, cost, and lead time.
For medical parts, material selection should be controlled by the device design, risk analysis, and regulatory strategy. The machining supplier can advise on machinability and availability, but the customer should approve the material specification.
Stainless steel
Stainless steel is common in medical machining because it offers strength, corrosion resistance, cleanability, and durability. It is often used for surgical instruments, shafts, housings, fasteners, tooling, and equipment components.
Common families include 300-series stainless steels and precipitation-hardening grades, depending on strength and corrosion requirements.
DFM considerations:
- Stainless steel is generally harder to machine than aluminum.
- Work hardening can affect tool life and surface finish.
- Passivation may be required for corrosion resistance.
- Burr control and edge finishing should be defined clearly.
Titanium
Titanium is valued for strength-to-weight ratio, corrosion resistance, and medical applications where material performance is critical. It is often associated with implantable or high-performance medical components, but the exact material grade and use case must be specified carefully.
DFM considerations:
- Titanium is more difficult to machine than many steels and aluminum.
- Heat control, tool wear, and surface integrity matter.
- Unnecessary tight tolerances and deep features can raise cost quickly.
- Material certification and traceability are often important.
Aluminum
Aluminum is useful for device housings, test equipment, prototypes, brackets, fixtures, trays, and non-patient-contact parts. It is lightweight and machines efficiently.
DFM considerations:
- It is easier to machine than stainless steel or titanium.
- Anodizing may affect dimensions and color consistency.
- It can scratch or dent during handling.
- It may not be suitable for every cleaning, sterilization, or contact requirement.
Engineering plastics such as PEEK, PPSU, and PTFE
Medical and life science projects often use engineering plastics for insulation, weight reduction, chemical resistance, wear behavior, or sterilization compatibility.
Examples include PEEK, PPSU, PTFE, UHMWPE, and other high-performance polymers. Suitability depends on the application and material grade.
DFM considerations:
- Plastics can move during machining due to heat, stress, and clamping.
- Sharp tools and controlled cutting conditions matter.
- Very tight tolerances may be harder to hold than expected.
- Material lot and certificate requirements should be defined before ordering.
Material certificates and approved substitutes
For medical projects, never assume material substitutes are acceptable.
If the drawing says one grade, the supplier should quote that grade unless the customer approves an alternate. If a certificate is required, state whether you need a material certificate, mill certificate, certificate of conformity, RoHS or REACH statement, or other documentation.
Design for manufacturability for medical parts
Medical device parts often combine small geometry, tight tolerances, difficult materials, and clean surface requirements. DFM helps reduce machining risk without compromising function.
Use tight tolerances only where function requires them
Tight tolerances can be necessary for shafts, bores, sealing surfaces, bearing fits, fluid paths, and assembly alignment. They also increase machining and inspection effort.
Avoid applying extremely tight general tolerances to every feature. Instead:
- Mark critical-to-quality dimensions.
- Define datum surfaces clearly.
- Use GD&T where relationships matter.
- Keep non-critical features at practical tolerances.
- Match inspection requirements to the actual risk.
This helps the supplier focus process control where it matters most.
Design features tools can reach
CNC machines use real cutting tools with diameter, length, and stiffness limits. Deep narrow pockets, sharp internal corners, tiny slots, thin ribs, and high aspect-ratio holes can increase cost or risk.
For better manufacturability:
- Add internal corner radii where possible.
- Avoid unnecessary deep pockets.
- Keep wall thickness practical.
- Allow tool clearance around holes and slots.
- Avoid undercuts unless they are necessary.
- Discuss very small features before finalizing the drawing.
If a difficult feature is required for function, keep it. If it is only a styling choice, simplify it.
Control burrs, edges, and small features
Burrs matter in medical parts. They can affect assembly, cleaning, tactile feel, particle generation, sealing, or patient safety.
Drawings should define edge break expectations. For example, the project may require "break sharp edges," a specific chamfer, a controlled radius, or no burrs visible under a defined inspection condition.
Be careful with vague notes. "Burr-free" can mean different things to different teams. If edge condition is critical, define how it will be inspected.
Plan for cleaning and inspection
Some designs are hard to clean or inspect because they include blind holes, enclosed pockets, narrow channels, intersecting features, or rough internal surfaces.
If the part needs cleaning validation, sterilization, fluid flow, or particle control, involve the supplier early. Geometry that looks fine in CAD may trap chips, coolant, polishing media, or contaminants.
Surface finishes and post-processing
Surface finish affects function, appearance, cleanability, wear, friction, corrosion resistance, and coating performance.
Medical CNC projects should define finish requirements before production, not after receiving parts.
Machined finish versus functional finish
A standard machined finish may be acceptable for fixture parts or internal components. A functional medical component may need a specified roughness, polished surface, passivation, electropolishing, anodizing, coating, or controlled edge finish.
Only specify fine finishes where needed. Over-specifying surface roughness on every surface can increase cost and inspection work.
Passivation, electropolishing, anodizing, and plating
Common post-processes include:
- Passivation: Often used with stainless steel to improve corrosion resistance by removing free iron from the surface.
- Electropolishing: Can improve smoothness and cleanability for certain metal parts.
- Anodizing: Often used for aluminum parts for corrosion resistance, wear resistance, or color coding.
- Plating or coating: Used when a functional surface property is needed.
Each process can affect dimensions, appearance, masking, and documentation. Define the standard, color, thickness, masking areas, and acceptance criteria where relevant.
Cleaning, packaging, and contamination control
Machining creates chips, oil, coolant residue, particles, and handling marks. For medical projects, cleaning and packaging expectations should be agreed before production.
Important questions include:
- Does the part need ultrasonic cleaning?
- Are oil residues acceptable?
- Should parts be bagged individually?
- Are gloves required for handling after final cleaning?
- Is cleanroom packaging required, or only clean protective packaging?
- Are there particle or residue limits?
Do not assume "medical" automatically means sterile or cleanroom-packed. Define the requirement.
Inspection and documentation
Inspection requirements should match the part risk and drawing requirements. Too little inspection creates quality risk. Too much inspection adds cost and time.
First article inspection
A first article inspection, or FAI, is often useful before larger production runs. It confirms that the first produced part or small batch meets the drawing and that the process is capable of making the critical features.
For medical projects, FAI can help catch drawing ambiguity, fixture issues, tool access problems, and measurement method differences before volume production.

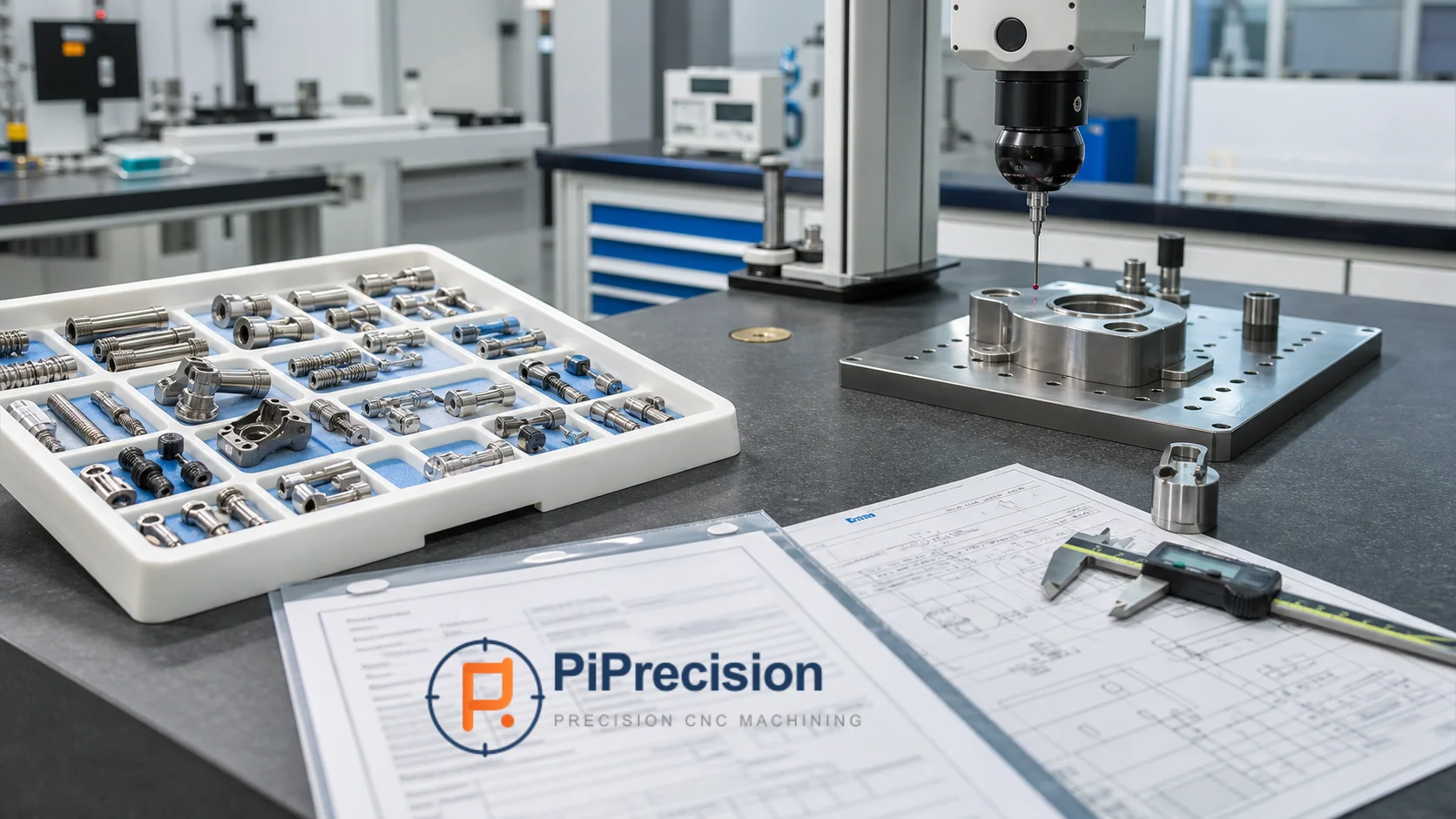

Dimensional reports and CMM inspection
Common inspection tools include calipers, micrometers, height gauges, pin gauges, thread gauges, optical inspection, surface roughness testers, and CMM measurement.
CMM inspection is useful for complex geometry and positional requirements, but it is not automatically required for every dimension. The drawing and quality plan should define which dimensions need reported measurements.
Material and finish documentation
Depending on the project, documentation may include:
- Material certificate
- Certificate of conformity
- Dimensional inspection report
- First article inspection report
- Surface finish report
- Passivation or coating certificate
- Heat treatment certificate
- Cleaning or packaging certificate
- Lot traceability record
Ask for these documents during quoting. It is much harder to recover missing records after production is complete.
Revision control and lot traceability
Revision control is critical. Medical device teams often move through many prototype iterations, and an old drawing can look very similar to a new one.
Use clear file names, drawing revision letters, part numbers, and purchase order notes. Ask the supplier to confirm the active revision before machining.
For production, lot traceability helps connect parts to material batches, inspection records, finish processes, and shipment history.
Prototype to production workflow
Medical device development often moves through several machining stages. Each stage has different goals.
Early prototype
The goal is fast learning. The team may be testing fit, ergonomics, basic function, or assembly. Material and finish may be approximate, but any difference from production intent should be documented.
Design verification builds
The goal is evidence. Parts should be closer to production intent, with controlled material, dimensions, finish, and inspection. This stage often reveals whether the design is truly manufacturable.
Pilot production
The goal is process learning. The supplier may test fixture strategy, inspection flow, finishing consistency, cleaning, packaging, and repeatability.
Repeat production
The goal is consistency. The supplier needs stable setup instructions, approved drawings, inspection plans, records, and a controlled change process.
Do not treat these stages the same. A prototype shortcut can be useful early, but it may not be acceptable for production.
How to qualify a CNC machining supplier for medical projects
Choosing a supplier for medical CNC machining is not only about machine list or price. It is about whether the supplier can meet the technical and documentation requirements of the project.
Capability fit
Check whether the supplier can handle:
- CNC milling and CNC turning
- Small precision features
- Required material grades
- Surface finishes and post-processing
- Critical tolerances
- Lot separation
- Inspection reporting
- Prototype and production volumes
The best supplier is not always the largest shop. It is the shop whose process fits your part.
Quality-system maturity
Ask about quality systems, inspection planning, calibration, nonconformance handling, corrective action, and document control.
For regulated medical device projects, ISO 13485 certification may be required by the customer. For other projects, ISO 9001 or a customer-specific quality agreement may be enough. The right requirement depends on the component role and risk.
Documentation discipline
A supplier should be comfortable confirming:
- Drawing revision
- Material grade
- Lot number
- Inspection method
- Certificate requirements
- Finish requirements
- Packaging requirements
- Change approval process
If documentation is a struggle during quoting, it will usually be harder during production.
Communication and engineering feedback
A strong CNC supplier asks useful questions before cutting metal. They may point out a hard-to-machine feature, unclear tolerance, risky finish requirement, or missing datum.
That feedback is not a delay. It is part of risk reduction.
Quote checklist for medical CNC parts
Use this checklist before requesting a quote:
- 3D CAD file, preferably STEP.
- 2D drawing with revision number.
- Material grade and certificate requirements.
- Quantity for prototype, pilot, and expected production.
- Critical-to-quality dimensions.
- Datum and GD&T requirements where needed.
- Surface roughness requirements.
- Edge break and burr requirements.
- Thread details and gauge requirements.
- Finish, coating, passivation, or anodizing requirements.
- Cleaning and packaging requirements.
- Inspection report requirements.
- Lot traceability requirements.
- Target market or quality-system expectations.
- Any customer quality agreement or supplier form.
A complete quote package helps the supplier give a more accurate price and better manufacturability feedback.
How PiPrecision supports medical CNC machining projects
PiPrecision CNC is a Shenzhen-based precision CNC machining manufacturer supporting global customers with CNC milling, CNC turning, surface finishing, and custom manufacturing support from prototype to production.
For medical and life science projects, PiPrecision can help review drawings for manufacturability, identify cost-driving features, discuss material and finish options, and support inspection documentation based on project requirements.
If you are developing a medical device component, instrument part, test fixture, or production support component, you can upload drawings or contact [email protected].
Please include the drawing revision, material grade, finish requirements, and any inspection or documentation needs. That makes the manufacturing review more useful from the first response.
Conclusion
Medical device CNC machining requires more than accurate cutting. It requires clear drawings, suitable materials, controlled finishes, careful inspection, traceable records, and a supplier who understands why documentation matters.
The most successful projects define requirements early. They separate critical dimensions from normal features, choose materials based on function and risk, plan finishing and cleaning before production, and confirm documentation before placing the order.
If you treat CNC machining as part of the medical device quality system, not just a part-making service, you will reduce surprises and get better parts.
