Precision Prototype Sheet Metal Fabrication Design Guide

A sheet metal prototype can look simple in CAD: a flat panel, a few holes, and several bends.

The physical part is less forgiving. Material stretches around each bend, holes can distort, flanges can interfere with press-brake tooling, welding adds heat, and finishing changes surfaces. A prototype that ignores these effects may fit once but teach you very little about production.

Precision prototype sheet metal fabrication is about producing a small number of parts that accurately test fit, function, assembly, appearance, and manufacturing risk before committing to larger volumes.

This guide explains how the process works, which design decisions matter most, and how to get a prototype that represents the part you actually intend to manufacture.

What is precision prototype sheet metal fabrication?

Prototype sheet metal fabrication converts flat metal stock into functional parts through operations such as:

• Laser cutting, punching, or waterjet cutting
• Deburring and edge preparation
• Press-brake bending and forming
• Riveting or self-clinching hardware installation
• Welding and assembly
• Grinding, brushing, anodizing, plating, or powder coating
• Dimensional and cosmetic inspection

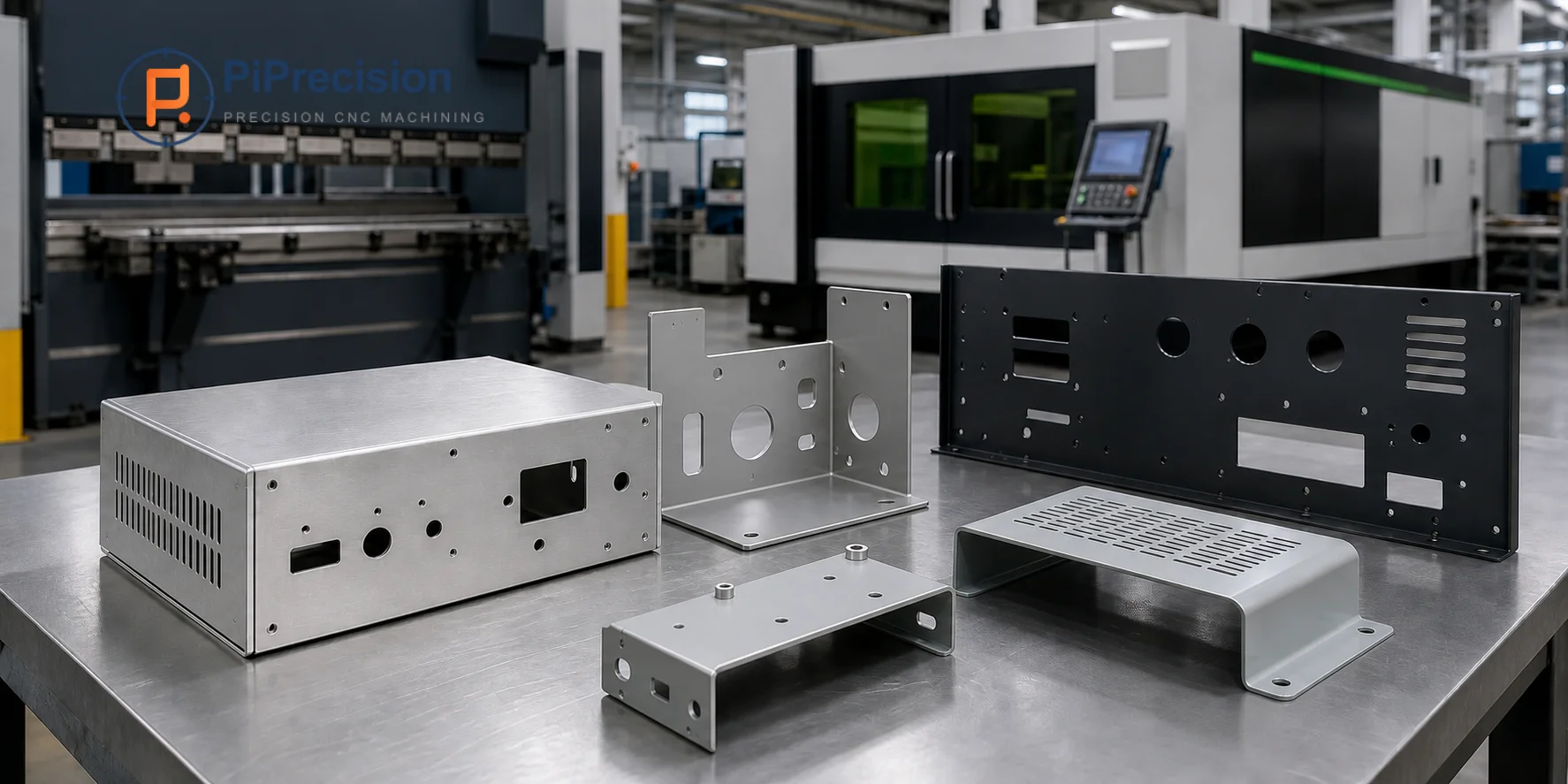

Common prototype parts include brackets, electronic enclosures, covers, panels, chassis, guards, cabinets, frames, and equipment housings.

The word “precision” does not mean every dimension receives a machining-level tolerance. It means the process controls the features that matter to the part’s function and verifies them with an appropriate inspection method.

The prototype should test the production process

A visually representative mockup can confirm general size and appearance. A production-representative prototype goes further.

It should use the intended material family, thickness, bend strategy, joining method, hardware, and finish whenever those choices affect performance. This lets the team evaluate:

• Whether mating parts assemble correctly
• Whether hole patterns align after forming
• Whether doors, covers, or slides have enough clearance
• Whether bends crack, twist, or distort nearby features
• Whether the enclosure is stiff enough
• Whether welds or fasteners obstruct components
• Whether the finish meets cosmetic and environmental needs
• Whether the design can scale without expensive custom work

That information is the real value of the prototype.

When sheet metal is the right prototyping process

Sheet metal is a strong choice when the production design will also be fabricated from sheet and the prototype must validate bends, mounting features, panel stiffness, hardware, or an assembled enclosure.

It is particularly useful for low-profile structures with mostly constant wall thickness.

Sheet metal versus CNC machining

CNC machining is appropriate for thick sections, complex pockets, precise bores, and features that cannot be created by cutting and bending sheet.

However, machining a bracket from solid stock does not reveal bend springback, bend marks, sheet-thickness variation, or distortion across formed surfaces. If the final part will be sheet metal, move to a sheet metal prototype before locking the design.

The two processes can also work together. A fabricated enclosure may use machined spacers, heat sinks, shafts, or precision inserts.

Sheet metal versus 3D printing

3D printing is useful early in development because it can make complex shapes with little setup. It can confirm packaging, access, and general assembly.

It cannot reliably reproduce the stiffness, edge condition, fastener behavior, electromagnetic shielding, thermal response, or cosmetic finish of a formed metal enclosure. Use it for early learning, then test the final manufacturing logic in real sheet.

Sheet metal versus production stamping

Stamping can be excellent for high-volume parts, but dedicated dies add cost and reduce the freedom to make frequent changes.

Laser-cut and press-brake-formed prototypes can validate the design before production tooling. Some geometry or tolerances may still need to change for stamping, so include the intended production process in the DFM discussion.

The prototype sheet metal fabrication process

A good prototype workflow connects design, process planning, fabrication, and inspection.

1. Design and DFM review

The supplier reviews the 3D model, drawing, material, thickness, bend geometry, quantity, hardware, welding, finish, and inspection requirements.

This is the best time to identify short flanges, inaccessible bends, distorted holes, tight cross-bend tolerances, inconsistent radii, or finish conflicts.

2. Flat-pattern development

The 3D part is unfolded into a flat blank. The flat pattern must account for the material consumed through each bend using bend allowance, bend deduction, tooling data, and the shop’s proven process values.

Do not assume that a generic CAD flat pattern is production-ready. The correct result depends on the actual material, thickness, bend radius, tooling, and forming method.

3. Cutting and punching

Laser cutting is common for prototype blanks because it handles complex profiles without dedicated hard tooling. Punching can be efficient for repeated holes, slots, louvers, and other standard features. Waterjet cutting can help when heat input or cutting-process compatibility creates a concern.

The choice affects edge quality, minimum feature size, burr direction, heat-affected area, speed, and cost.

4. Deburring and edge preparation

Cut parts may need tabs removed, edges broken, and burrs controlled before forming or assembly.

Identify any edge that must remain functionally sharp, receive a weld, meet a cosmetic requirement, or remain free of rounding. Otherwise, safe deburred edges are normally preferable.

5. Press-brake forming

A press brake forms the blank between a punch and die. The operator or CNC program controls bend position, angle, sequence, and tooling.

Air bending is common and flexible, but the resulting inside radius depends on the material, die opening, punch, thickness, and process—not simply the radius drawn in CAD. Springback must also be compensated.

6. Hardware, joining, and welding

Self-clinching nuts, studs, standoffs, rivets, hinges, and threaded inserts can be installed after cutting and at the correct point in the bend sequence.

Assemblies may be tack welded, stitch welded, seam welded, riveted, or screwed together. The joining choice affects stiffness, serviceability, appearance, distortion, and cost.

7. Surface finishing

Typical options include brushing, bead blasting, anodizing, chemical conversion coating, passivation, plating, painting, and powder coating.

Finishing requirements influence hanging points, masking, grounding areas, cosmetic grain direction, hole clearance, and the order of operations. Define them before the prototype is cut.

8. Inspection and assembly validation

Inspection may use calipers, micrometers, height gauges, angle gauges, pin gauges, fixtures, optical equipment, or a coordinate measuring machine.

The team should also perform the functional test: assemble the prototype with its real mating components, cables, fasteners, gaskets, boards, fans, or mechanisms.

Choosing a material for a precision sheet metal prototype

Use the intended production material when it affects strength, corrosion resistance, weight, forming, welding, conductivity, or finish.

Nominal gauge labels are not enough for a precision requirement. Specify the material standard, alloy or grade, temper or condition, and actual thickness when relevant.

Ten design rules for more accurate sheet metal prototypes

1. Use a consistent, available sheet thickness

A conventional fabricated part begins with uniform-thickness sheet. Model the part accordingly and use a stock thickness the supplier can source consistently.

Changing thickness late can affect bend radius, flat pattern, stiffness, hardware compatibility, weight, and assembly clearances.

2. Match bend radii to the material and tooling

The minimum safe bend radius depends on material, grade, temper, thickness, grain direction, and forming method. A radius that works in mild steel may crack a less ductile aluminum temper.

Use a consistent bend radius where practical. It reduces tooling changes and makes the process easier to stabilize, but the final value should be confirmed with the fabricator’s available tooling.

3. Account for bend allowance and springback

The neutral axis shifts during bending, so the flat length is not simply the sum of the outside flange dimensions.

CAD systems often use a K-factor or bend table to calculate the flat pattern. The fabricator may replace generic values with process-specific data. Springback compensation is also material- and tooling-dependent.

4. Keep holes and slots away from bend zones

Material stretches near a bend line. A hole placed too close may become oval, pull toward the bend, or tear into an edge.

A common early-design heuristic is to keep features roughly four material thicknesses from the bend, but this is not universal. Protolabs, for example, publishes material- and thickness-dependent distances and notes that features within the bend region can distort.

If a critical feature must remain near a bend, consider moving it, adding relief, or machining it after forming.

5. Add bend and corner reliefs

Reliefs remove material where adjacent bends or flanges would otherwise stretch, bulge, or tear the sheet.

The relief needs enough width and depth for the material, thickness, and bend radius. Avoid narrow slivers or sharp-ended cuts that create weak points.

6. Provide workable flange lengths

The press brake needs enough material to contact and support the workpiece during forming. A very short flange may not reach the die shoulders or may require special tooling.

Minimum flange length depends on the die opening, bend radius, thickness, material, and machine setup. Check it with the supplier instead of relying on one fixed ratio.

7. Check bend sequence and tool access

A part can be valid as a folded CAD model and still be impossible to form in the intended sequence.

After one flange is bent, it may collide with the punch, die, ram, or machine frame during the next bend. Deep boxes, return flanges, hems, and closely spaced bends deserve an early tooling review.

8. Control welding and joining distortion

Welding introduces concentrated heat, shrinkage, and residual stress. Thin panels can bow or twist even when the cut and bent parts were accurate.

TWI recommends minimizing unnecessary weld metal and considering weld placement and balanced welding to limit distortion. For a prototype, compare welding with tabs, rivets, screws, or formed features when the function allows.

9. Design hardware into the prototype

Self-clinching hardware needs the correct hole size, material hardness, sheet thickness, edge distance, and installation access.

Do not substitute a loose nut in the prototype if production will use an installed nut or standoff and that hardware affects clearance or assembly. Follow the fastener manufacturer’s specifications rather than a generic rule.

10. Define cosmetic surfaces and grain direction

Forming can leave die marks, scratches, and bend witness lines. Brushed materials also have a visible grain direction that may need to align across panels.

Mark cosmetic faces on the drawing and define acceptable appearance, protective film, finish direction, and whether small tooling marks are allowed.

What tolerances are realistic?

There is no single tolerance for every sheet metal prototype.

Features cut on one flat surface are usually easier to control than dimensions measured across one or more bends. Bend angle, material-thickness variation, springback, tooling, and setup sequence all add variation.

Published service standards illustrate this difference. Xometry lists ±0.010 in (±0.254 mm) for certain feature-to-feature dimensions on the same cut surface, while formed dimensions and measurements across bends have wider standard values. Protolabs also publishes separate tolerances for same-surface, bend-related, and multi-bend measurements.

These are supplier-specific examples, not universal limits and not PiPrecision capability guarantees. Your drawing should be reviewed feature by feature.

Flat features and formed features behave differently

A hole-to-hole dimension cut in one blank is controlled mainly by the cutting process and material behavior. A hole-to-hole dimension across two formed flanges also includes bend location, bend angle, radius, springback, and thickness variation.

That difference should shape the tolerance strategy.

Tighten only what controls function

Use tight requirements for features that locate components, seal, align mechanisms, or control assembly. Use an agreed general tolerance for non-critical dimensions.

When geometric relationships matter, a clear datum scheme and appropriate GD&T can communicate design intent more effectively than a chain of coordinate dimensions. ASME Y14.5 provides the recognized language for dimensioning and tolerancing.

Also state how critical features will be inspected. A tolerance that cannot be measured repeatably is not a complete requirement.

How to make the prototype representative of production

A prototype becomes more predictive when it preserves the variables that matter later.

Where practical:

1. Use the intended material grade, condition, and thickness.
2. Use production-like bend radii and tooling logic.
3. Install the actual hardware or an approved equivalent.
4. Use the intended weld, rivet, or screw strategy.
5. Apply the real finish when it affects fit, grounding, corrosion, or appearance.
6. Inspect from the functional datum structure.
7. Assemble the real mating components.
8. Record every approved change to the model and drawing.

If the prototype uses a temporary shortcut, document it. The team should know which results are representative and which still need production validation.

What to include in a sheet metal prototype quote package

Send enough information for the supplier to review both manufacturability and inspection:

• A native sheet-metal CAD file or a clean STEP model
• A dimensioned 2D drawing with datums and critical tolerances
• Material grade, condition, and thickness
• Flat pattern only if requested or already validated with the supplier
• Prototype quantity and likely production volume
• Bend directions and critical inside radii
• Hardware manufacturer and part numbers
• Weld symbols, locations, and cosmetic expectations
• Surface finish, color, texture, grain direction, and masking
• Critical-to-quality features and inspection documentation
• Mating components or assembly context where useful
• Drawing revision and units

Do not rely on the 3D model alone for critical tolerances, threads, hardware, welds, or finish requirements.

How to choose a precision sheet metal prototyping supplier

The best supplier is not simply the one with the fastest laser cutter.

Ask whether the team can review:

• Flat-pattern and bend feasibility
• Material and tooling compatibility
• Hole and hardware placement near bends
• Bend sequence and press-brake access
• Welding and distortion risk
• Finish and masking requirements
• Critical dimensions and inspection methods
• The transition from prototype to low-volume production

A useful quote should identify risk, not hide it. If a tolerance, flange, or finish is likely to cause trouble, early feedback is more valuable than a confident promise.

Common prototype sheet metal mistakes

Watch for these problems before release:

• Using a generic K-factor without confirming the forming process
• Specifying an unavailable or unnecessarily unusual thickness
• Applying machining-level tolerances to every dimension
• Locating critical holes inside the bend deformation zone
• Forgetting bend or corner reliefs
• Designing flanges that cannot be supported by standard tooling
• Ignoring bend sequence and tool collision
• Adding hardware after the geometry is already fixed
• Welding long seams without considering distortion
• Applying a finish without masking or thickness allowance
• Failing to identify cosmetic faces
• Testing the prototype without its real mating components

Most of these are inexpensive to correct in CAD and expensive to discover after fabrication.

Precision prototype sheet metal fabrication FAQ

What is K-factor?

K-factor describes the position of the neutral axis through the material thickness during bending. CAD software uses it to help calculate bend allowance and the flat pattern.

It is a process input, not a universal material constant. The fabricator may use bend tables or measured values based on the actual material and tooling.

Can a sheet metal prototype hold ±0.1 mm?

It may be feasible on selected same-surface cut features, depending on part size, material, thickness, process, and inspection. It is much more demanding across bends or welded assemblies.

Ask the supplier to review the exact feature rather than applying ±0.1 mm across the entire drawing.

Should a prototype use the final production material?

Yes, when material behavior affects the test. This includes bend cracking, springback, stiffness, weight, corrosion resistance, welding, conductivity, and finish.

A substitute may be acceptable for early packaging or appearance tests, but document what the substitute cannot validate.

Is laser cutting always the best blanking process?

No. Laser cutting is flexible and common for prototypes, but punching, waterjet cutting, machining, or photo-chemical processes may suit certain features, materials, volumes, or edge requirements better.

For high-volume production, stamping or dedicated tooling may eventually provide a better unit cost and repeatability.

Should dimensions apply before or after finishing?

State this clearly on the drawing. Coatings can affect hole clearance, threads, grounding areas, mating surfaces, and cosmetic appearance.

Critical dimensions should normally be defined in the condition in which the part will function and be accepted.

Build the prototype to answer production questions

The most useful sheet metal prototype is not simply a fast metal version of the CAD model. It is a controlled experiment in material, bending, hardware, joining, finishing, assembly, and inspection.

Choose the right material and thickness. Design around the real tooling. Keep critical features away from bend deformation. Apply tolerances where function needs them. Then test the part as an assembly, not in isolation.
