Industrial Prototype Machining for Product Development

A prototype should do more than prove that a CAD model can become a physical object.

For a new industrial product, the real goal is to reduce uncertainty. Will the bearing seat correctly? Can the enclosure survive the load? Are the connectors accessible? Will the assembly align without forcing parts together?

Industrial prototype machining turns selected design revisions into accurate metal or engineering-plastic parts that teams can assemble, measure, test, and improve before committing to production tooling or larger orders.

The most effective approach is simple:

Define the engineering question first, then build only the prototype fidelity needed to answer it.

The short answer: machine the prototype that answers the next question

Not every prototype needs final material, tight tolerances, a cosmetic finish, and a complete inspection report.

An early enclosure model may only need to confirm size and ergonomics. A later engineering unit may need production-relevant aluminum, controlled datums, installed bearings, sealed interfaces, and documented critical dimensions.

Before requesting a quote, write one sentence that completes this statement:

This prototype will allow us to decide whether __________.

That answer should control the process, material, tolerances, finish, quantity, and inspection plan.

What is industrial prototype machining?

Industrial prototype machining uses processes such as CNC milling, CNC turning, drilling, reaming, boring, grinding, and related finishing operations to produce physical test parts from CAD data and engineering requirements.

Unlike a visual mock-up, a machined prototype is commonly intended to support one or more engineering decisions:

• Verify assembly fit and datum relationships
• Test load, motion, heat transfer, sealing, or wear
• Evaluate production-relevant materials
• Confirm access for fasteners, tools, cables, and service
• Check surface finish or cosmetic direction
• Identify design-for-manufacturing issues
• Prepare a design for a pilot build

A prototype is a test article, not automatically a miniature production run

A one-off part can be manufactured with extra setup time, manual fitting, or inspection effort that would not be economical in production.

That does not make the prototype invalid. It means the team must distinguish between:

• Product validation: Does the design perform as intended?
• Process validation: Can the planned manufacturing process produce acceptable parts repeatedly?

One successful prototype can support the first question. It does not automatically prove the second.

Where machining fits in the product development cycle

Prototype names vary between companies, but the required fidelity generally increases as the design matures. Autodesk describes a progression from proof-of-concept and looks-like or works-like models to engineering prototypes with combined functional and visual characteristics. NASA systems engineering guidance also distinguishes between different development articles rather than treating every physical model as equivalent.

The following stage model is a practical guide, not a mandatory standard:

Proof of concept

At the proof-of-concept stage, speed and isolation of risk matter more than completeness.

If the question concerns a hinge, thermal path, latch, or shaft arrangement, test that subsystem. Do not machine a complete polished enclosure simply because the full CAD assembly already exists.

Form, fit, and function

Form-and-fit prototypes answer spatial questions: clearances, access, alignment, packaging, and human interaction.

Functional prototypes go further. They may need realistic stiffness, threads, bearing fits, sealing faces, or thermal conductivity. This is where CNC machining becomes especially useful because the prototype can be made from common engineering metals and plastics rather than a visual substitute.

Engineering validation

Engineering validation requires defined acceptance criteria.

Instead of saying “test the housing,” define the load, temperature, duty cycle, mating components, measurement points, and failure conditions. The prototype drawing should identify the features that make those tests meaningful.

Design validation and preproduction

Later prototypes may include production-intent finishes, hardware, assembly steps, labels, packaging interfaces, or user-facing surfaces.

This is also the stage to identify where a machined prototype differs from the future production process. A machined plastic part will not reproduce every feature of an injection-molded part. A machined billet will not duplicate the grain flow, draft, wall structure, porosity risk, or residual stress of a casting.

Pilot and bridge production

CNC machining can support pilot quantities or bridge production while dedicated tooling is being prepared, but the objective changes.

The focus is no longer just “Can we make one?” The team begins asking whether the drawing, fixture concept, inspection plan, finishing sequence, packaging, and revision system can support repeatable deliveries.

Why teams choose CNC machining for functional prototypes

Production-relevant materials

CNC machining can create prototypes from many commercially available aluminum alloys, steels, stainless steels, copper alloys, titanium alloys, and engineering plastics.

This helps when the test depends on stiffness, thermal behavior, electrical conductivity, chemical resistance, thread strength, or wear. However, the exact stock form and material condition still matter. Billet, plate, bar, cast stock, and heat-treated stock may not behave identically.

Controlled interfaces and tolerances

Machining is useful when the prototype contains bearing seats, sealing faces, dowel holes, threaded interfaces, datum features, or other controlled geometry.

Do not apply the tightest tolerance available to the whole part. Define the functional relationship and inspect it with an appropriate method. ASME Y14.5 provides a common language for communicating geometric requirements, while ISO 2768 can simplify noncritical dimensions when the drawing and supplier agree on its use.

Useful surfaces and finishes

A machined surface can be evaluated for contact, sealing, sliding, appearance, or coating preparation.

Anodizing, plating, passivation, blasting, polishing, and heat treatment can change dimensions or part form. State whether a critical requirement applies before or after finishing and identify any surfaces that need masking.

Low quantities without dedicated hard tooling

CNC machining starts from digital geometry and stock material, so many prototypes can be produced without molds, dies, or casting tooling.

There is still setup work: CAM programming, tool selection, workholding, datum establishment, deburring, and inspection. A quantity of one can therefore carry significant non-recurring cost even when no dedicated hard tool is required.

When CNC machining is not the best first process

CNC is one option in a prototype strategy, not the default answer for every part.

A common mixed strategy is to print early packaging models, machine load-bearing or interface-critical parts, fabricate realistic sheet metal components, and reserve tooling for a more stable revision.

A practical industrial prototype machining workflow

1. Define the decision the prototype must support

List the specific risks the build should address. Examples include:

• Motor alignment and coupling life
• Bearing fit after anodizing
• Heat-sink contact and thermal performance
• Fastener access during assembly
• Seal compression and leak performance
• Structural deflection under a defined load
• Clearance between moving components

This list becomes the basis for critical features and test acceptance criteria.

2. Freeze and identify the design revision

Prototype work moves quickly, which makes revision mistakes surprisingly easy.

Use a unique part number, revision, and date for every released package. The 3D model, drawing, BOM, test plan, purchase order, and supplier communication should all point to the same revision.

NIST's digital-thread work emphasizes reliable communication of product definition from design through manufacturing and inspection. Even a small development team benefits from that discipline.

3. Send a complete manufacturing package

For a typical machined prototype, provide:

• A clean 3D CAD file, preferably a neutral format such as STEP when appropriate
• A 2D drawing—or an agreed model-based definition with PMI—for tolerances, datums, threads, finishes, and notes
• Material grade and condition
• Required quantity
• Finish and color requirements
• Critical-to-quality features
• Mating-part or assembly context when it affects interpretation
• Inspection and documentation requirements
• Approved substitution rules, if any
• Part number and revision

The 3D model communicates geometry. The drawing or agreed model-based product definition communicates what variation is acceptable and what must be verified.

4. Complete DFM before cutting material

A useful DFM review is a technical conversation, not just an automated pass/fail report.

Discuss features that may require long tools, multiple setups, custom workholding, special cutters, EDM, grinding, or hand finishing. Also review thin walls, deep pockets, inaccessible corners, small threads, cross holes, undercuts, and tolerance relationships across setups.

When the supplier suggests a change, ask what it improves: machining stability, measurement access, cycle time, material availability, finish quality, or production scalability.

5. Agree on prototype concessions

A prototype concession is an intentional difference from the final design or production method.

Examples include:

• Splitting one difficult part into two test pieces
• Using a readily available material condition for a fit check
• Machining a future casting from billet
• Substituting a temporary finish
• Widening a noncritical tolerance
• Leaving extra stock for a later test

Record each concession. Otherwise, a temporary shortcut can quietly become an assumed production requirement.

6. Machine, finish, and inspect in the correct sequence

Process sequence matters. A dimension accepted as machined may change after coating, heat treatment, blasting, or polishing.

Agree on when each critical feature will be measured, what surfaces will be masked, and whether any features require post-finish machining.

7. Test, record, and feed results back into the design

Do not let prototype learning remain in email threads or marked-up photos without revision context.

Record:

• Prototype serial or identifier
• Part and drawing revision
• Material and finish
• Approved deviations
• Inspection results
• Test setup and conditions
• Failure location and mode
• Design decision resulting from the test

This creates a usable path from requirement to part, test result, and design change.

Designing CNC prototypes for faster learning

Keep the setup plan simple

Features that can be machined from fewer orientations usually reduce datum-transfer risk and setup effort.

If two features must align closely, consider whether they can be produced in one setup or referenced to a clear, stable datum system.

Separate critical features from informational features

Apply specific tolerances only where they affect the test or assembly.

For noncritical geometry, use an agreed general tolerance or explicitly mark the feature as reference information. This helps the supplier focus process control and inspection effort where it creates evidence.

Design for tool access and part rigidity

Deep narrow pockets, very small internal radii, long slender bosses, and thin unsupported walls may require long tools or low-force cutting strategies.

Where function permits:

• Use internal radii that allow practical end mills
• Reduce unnecessary pocket depth
• Support thin walls with ribs or temporary stock
• Avoid threads deeper than the functional engagement requires
• Provide tool access to cross holes and side features
• Leave robust datum surfaces for setup and inspection

Consider assembly and service access

A prototype should reveal whether the product can be assembled, adjusted, and repaired.

Check screwdriver and wrench access, connector insertion paths, cable bend space, fastener installation order, alignment features, and whether one component blocks another during service.

Match the material and finish to the test

Use final material only when its properties matter to the decision.

An aluminum substitute may be suitable for packaging but unsuitable for a wear test intended for hardened steel. An unfinished part may validate fit but not a tight interface whose size changes after anodizing.

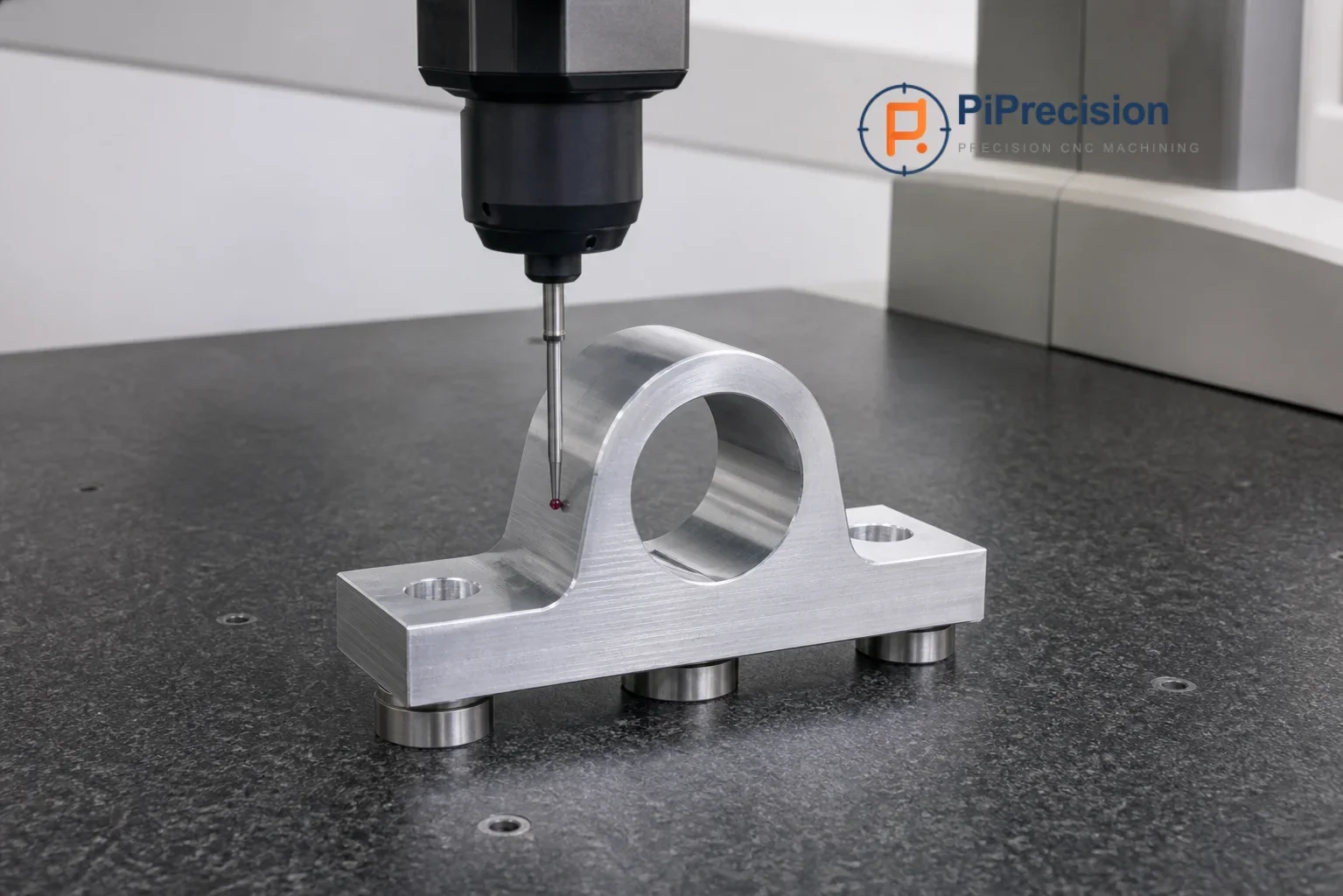

How to inspect a prototype without slowing the project unnecessarily

Prototype inspection should be risk-based.

For an early functional build, a practical plan might include:

1. Material confirmation when material identity affects the test
2. Visual review for damage, burrs, blocked passages, and finish defects
3. Dimensional inspection of critical-to-quality features
4. Functional gauges or mating-part checks for assembly interfaces
5. A report that identifies the part revision and measurement method

More inspection is not automatically better. A complete dimensional report can be valuable for regulated work, supplier qualification, or a pilot build, but it may add little to a proof-of-concept part whose only purpose is to test a lever ratio.

For close-tolerance measurements, temperature and measurement uncertainty matter. NIST documents 20 °C as the standard reference temperature for dimensional specifications and measurement, but the appropriate inspection environment and stabilization plan still depend on the part, material, tolerance, and method.

What drives prototype machining cost and schedule?

The largest cost drivers are often not the amount of metal in the finished part.

They include:

• Number of setups and orientations
• CAM programming and fixture preparation
• Part size relative to available stock and machine travel
• Material grade, condition, and availability
• Deep pockets, thin walls, small radii, and long tool reach
• Tight tolerances or geometric relationships
• Deburring and hand-finishing requirements
• Surface treatment, masking, and post-finish operations
• Inspection depth and documentation
• Quantity and revision stability

To reduce cost without weakening the test, ask:

• Which features actually affect this test?
• Can a cosmetic finish wait until the next build?
• Can one expensive feature be isolated in a smaller test coupon?
• Can related parts share material, tools, or setups?
• Will ordering a small spare quantity protect the test schedule?

How to move from a machined prototype to pilot production

A prototype-to-production transition should preserve what was learned while removing prototype-only shortcuts.

Before a pilot order, review:

• Final CAD and drawing revision
• Critical features and datum structure
• Approved material source and condition
• Production-intent finish sequence
• Workholding and setup strategy
• Tool-life or wear-sensitive features
• Inspection method, sampling plan, and records
• Packaging and handling of cosmetic or delicate surfaces
• Assembly feedback from the prototype build
• Every concession used on earlier parts

If the production process will be molding, casting, forging, extrusion, or another near-net-shape method, plan a separate validation step for that process. A successful billet-machined prototype demonstrates the design under the conditions tested; it does not reproduce every characteristic of another manufacturing route.

What to ask an industrial prototype machining supplier

Useful questions include:

• Which features create the highest machining or inspection risk?
• Are any tolerances unclear, conflicting, or difficult to verify?
• Which dimensions should be checked after finishing?
• Can critical related features be machined in one setup?
• Are the requested material grade and condition readily available?
• What prototype concessions would reduce cost without changing the test result?
• What files, revision identifiers, and inspection records will accompany the parts?
• What should change before moving from one-off machining to a pilot batch?

A strong prototype supplier should help the team make decisions, not simply return a part that resembles the model.

Industrial prototype machining FAQ

Is CNC machining always better than 3D printing for prototypes?

No. Printing is often more efficient for early shape studies, complex internal passages, and rapid packaging checks. CNC machining becomes valuable when the test needs controlled interfaces, useful machined surfaces, or a specific engineering material.

Many development programs use both.

Should a prototype use the final production material?

Use the final or production-relevant material when the test depends on its properties. If the prototype only checks space, access, or appearance, a substitute may be reasonable.

Document every substitution so the test result is interpreted correctly.

How many prototypes should we order?

There is no universal number. Base the quantity on the test plan, expected variation, destructive testing, assembly needs, stakeholder samples, and the risk of losing the schedule if one part is damaged.

One part may answer a fit question. It cannot demonstrate repeatable process capability.

Can a machined prototype validate a future molded or cast part?

It can validate selected design functions, dimensions, and assembly relationships, but it cannot fully reproduce another process.

Molding and casting introduce different wall rules, draft, material flow, shrinkage, residual stress, surface texture, and defect risks. Treat the machined part as one validation step, not a substitute for process-specific samples.

Do prototype parts need a complete inspection report?

Only when the project risk or quality system requires it.

At minimum, verify the features that determine whether the prototype test is valid. Later engineering and pilot builds may justify broader reporting, material records, finish certification, or first-article documentation.

Build evidence, not just parts

Industrial prototype machining is most valuable when it connects design intent, manufacturing, inspection, and testing.

Define the risk. Release a controlled revision. Match the material and process to the question. Inspect the features that protect the test. Record the result and use it to guide the next build.

PiPrecision CNC supports global product-development teams with CNC milling, turning, finishing, and custom machining from prototype through production. If you would like a practical DFM review of a prototype design, upload your CAD files and drawing or contact sales@piprecision-cnc.com.
