3-Axis vs 5-Axis CNC: Cost, Accuracy & Setups

Choosing between 3-axis and 5-axis CNC machining is not simply a matter of selecting the machine with more axes.

A 5-axis machine offers more freedom to reach angled and multi-sided features, but that capability comes with more demanding programming, simulation, collision control, and machine calibration. For a straightforward plate, bracket, or prismatic housing, 3-axis machining may remain the fastest and most economical choice.

The practical question is therefore not “Which machine is better?” It is:

Which machining strategy can manufacture the part reliably with the fewest avoidable setups, suitable tool access, and the lowest total cost?

This guide compares 3-axis, indexed 3+2, and simultaneous 5-axis machining so engineers and buyers can make that decision more confidently.

3-Axis vs 5-Axis CNC Machining: Quick Comparison

The table is a starting point. Part geometry, tolerances, workholding, material, quantity, and inspection requirements must still be evaluated together.

What Is 3-Axis CNC Machining?

A 3-axis milling machine moves the cutting tool along three linear axes:

• X-axis: left and right
• Y-axis: forward and backward
• Z-axis: up and down

The workpiece normally remains in a fixed orientation while the cutting tool approaches from one direction. This makes 3-axis machining well suited to parts with features that are accessible from the top of each setup.

Common examples include:

• Mounting plates
• Flat brackets
• Electronic enclosures
• Straight pockets
• Counterbores and vertical holes
• Simple molds
• Prismatic housings
• Parts with predominantly parallel or perpendicular faces

Features on the opposite side or around the perimeter can still be machined, but the operator may need to reposition the part and establish a new setup.

That does not make 3-axis machining inherently inaccurate. With appropriate machinery, tooling, fixturing, process control, and inspection, it can produce precise components. The limitation is primarily access, not an automatic lack of precision.

What Is 5-Axis CNC Machining?

A 5-axis machine combines the X, Y, and Z linear axes with two rotational axes. Depending on the machine configuration, the table, spindle head, or both may rotate.

This allows the cutting tool to approach the workpiece from additional directions. The machine can reach angled faces, compound features, and complex surfaces that would otherwise require repeated repositioning.

However, “5-axis machining” can describe two different strategies.

Indexed 3+2 Machining

In indexed 3+2 machining, the two rotary axes position the workpiece at a selected angle and then stop. Cutting continues using the three linear axes.

For example, the machine may tilt a housing to expose an angled face, lock that orientation, machine the face and its holes, and then index the part to another position.

According to Autodesk’s explanation of 5-axis machining, 3+2 machining is positional: the rotary axes establish the orientation before conventional three-axis cutting occurs.

This approach is useful for:

• Angled holes
• Features on several sides
• Parts needing shorter tool reach
• Deep cavities made accessible by tilting
• Multiple fixed machining orientations
• Consolidating several conventional setups

For many multi-face components, 3+2 machining provides the required access without the added complexity of continuous rotary movement.

Simultaneous 5-Axis Machining

In simultaneous 5-axis machining, the linear and rotary axes move together while the tool is cutting.

The changing tool orientation allows the cutter to follow complex contours while maintaining a favorable contact angle. Typical applications include:

• Impellers
• Turbine-like components
• Sculpted aerospace surfaces
• Complex medical components
• Deep contoured cavities
• Parts with continuously changing surface normals
• Blended surfaces that cannot be efficiently divided into fixed orientations

Simultaneous motion requires capable CAM programming, reliable post-processing, machine simulation, accurate rotary-axis calibration, and careful collision checking.

If the part only contains several fixed angled faces, simultaneous 5-axis machining may offer little additional value over 3+2 machining.

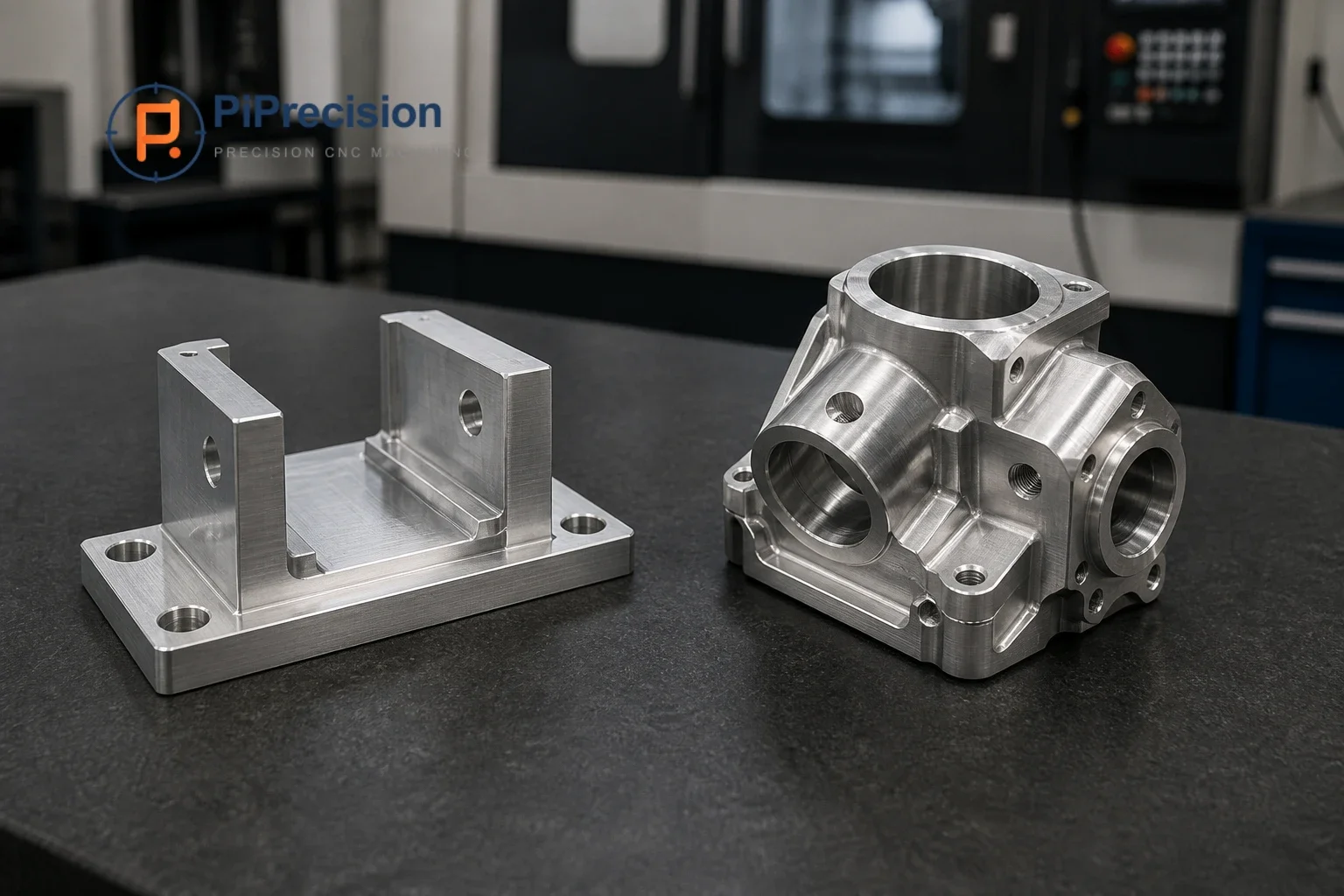

How Part Geometry Affects the Decision

Geometry is usually the first decision factor.

A 3-axis machine is effective when all important features can be reached from one direction or from a small number of simple setups. Flat faces, vertical holes, straight walls, and accessible pockets generally fit this category.

Five-axis capability becomes more useful when the part includes:

• Angled bores
• Features on four or five sides
• Deep cavities obstructed by nearby walls
• Compound-angle surfaces
• Closely connected features on different orientations
• Contoured surfaces requiring a changing tool angle
• Areas that would otherwise require excessively long tools

Tilting the part can allow a shorter, more rigid cutting tool to reach a difficult feature. This may reduce vibration and tool deflection compared with machining the same area using a long-reach tool.

Nevertheless, five axes cannot eliminate every access problem. Tool-holder clearance, fixture obstruction, spindle size, workpiece geometry, and true undercuts still affect machinability.

Setup Count and Workholding

A setup includes more than placing a part in a vise. It may involve:

1. Locating the workpiece
2. Clamping it securely
3. Establishing the work coordinate system
4. Verifying orientation
5. Loading the correct program and tooling
6. Machining the accessible features
7. Inspecting critical dimensions
8. Releasing and repositioning the part

Each additional setup adds handling time and another opportunity for variation.

For a simple part, these extra steps may be inexpensive and highly repeatable. A dedicated fixture can also make multi-setup 3-axis production efficient at higher quantities.

For a complex prototype or lower-volume multi-face part, however, consolidating orientations on a 5-axis machine may reduce:

• Custom fixture requirements
• Operator handling
• Work-coordinate changes
• Repeated part alignment
• Work-in-process inventory
• The number of separate inspection stages

This setup reduction is one of the most important practical advantages of 5-axis CNC machining.

Is 5-Axis Machining More Accurate?

Not automatically.

A suitable 3-axis process can be extremely accurate. A poorly calibrated or poorly programmed 5-axis process can produce unacceptable results.

The potential accuracy benefit of 5-axis machining comes mainly from reducing the number of times the part must be removed, repositioned, and relocated. When two critical features are machined in one fixture, their relationship does not depend on transferring the datum through several manual setups.

For example, consider a housing with precision bores on two angled faces. Machining both bores in one 3+2 setup may help preserve their positional relationship. Producing them in separate fixtures may introduce additional variation through re-clamping, datum pickup, fixture accuracy, or contamination between locating surfaces.

Actual machining accuracy still depends on:

• Machine condition and calibration
• Rotary-axis center compensation
• Thermal stability
• Workholding rigidity
• Tool runout and deflection
• Cutting parameters
• Material movement
• CAM strategy
• Inspection method
• Operator and process control

The better question is therefore:

Which process keeps the critical dimensions and datums under control with the least accumulated uncertainty?

For a closer look at these factors, see our guide to CNC milling accuracy.

Surface Finish Differences

Five-axis machining can improve surface-finish consistency on complex contours by allowing the tool to maintain a favorable orientation relative to the surface.

It may also make it possible to use shorter tools. Shorter tooling is generally more rigid, which can help reduce chatter and deflection.

These benefits are most relevant to sculpted or difficult-to-access geometry. A simple flat face does not automatically achieve a better finish merely because it was machined on a 5-axis machine.

Surface finish continues to depend on:

• Tool geometry and condition
• Toolpath strategy
• Stepover and stepdown
• Feed rate and spindle speed
• Machine rigidity
• Material behavior
• Workholding
• Vibration control
• Finishing allowance

The required finish should be shown clearly on the drawing instead of being inferred from the machine type.

5-Axis CNC Machining Cost: Machine Rate vs Total Part Cost

Five-axis machines normally involve greater capital, programming, simulation, and process-control demands. Their machine-hour cost may consequently be higher than that of a conventional 3-axis machining center.

But machine rate is only one component of total part cost.

A realistic cost comparison should consider:

• CAM programming
• Fixture design and manufacture
• Number of setups
• Setup and alignment time
• Cycle time
• Tooling requirements
• Operator handling
• In-process inspection
• Scrap and rework risk
• Final inspection
• Production quantity

For a basic plate with top-side holes and pockets, five-axis machining may add cost without eliminating meaningful work.

For a complex multi-face housing, a higher machine rate may be offset by fewer fixtures, fewer setups, shorter tools, reduced handling, and better control of feature-to-feature relationships.

This is why quoting the actual part is more reliable than assuming that either three-axis or five-axis machining is always cheaper.

When Should You Choose 3-Axis CNC Machining?

Choose 3-axis machining when:

• Most features are accessible from one direction
• The part consists mainly of flat or prismatic geometry
• Angled features are absent or simple to fixture
• Critical relationships do not cross several difficult orientations
• Standard vises or straightforward fixtures can hold the part
• Simplicity and low programming overhead are important
• Production volume justifies dedicated fixtures
• Several setups can be completed repeatably without excessive risk

Typical candidates include mounting plates, simple brackets, spacers, panels, fixture components, and accessible enclosures.

When Is 3+2 Machining the Better Choice?

Choose indexed 3+2 machining when:

• Features appear on several sides
• The part contains angled holes or faces
• Multiple orientations can be machined from one fixture
• Tilting the part permits shorter tooling
• Critical features on different orientations should remain related to one datum
• The surface does not require continuous rotary motion during cutting

3+2 machining often provides the most practical middle ground. It gains much of the setup and access advantage of a 5-axis machine while avoiding unnecessary simultaneous motion.

Protolabs’ explanation of 3+2 machining similarly distinguishes indexed positioning from continuous 5-axis cutting.

When Should You Use Simultaneous 5-Axis Machining?

Simultaneous 5-axis machining becomes appropriate when:

• The cutting direction must change continuously
• The part has complex sculpted surfaces
• Fixed indexed positions cannot provide adequate access
• Smooth transitions between multi-directional surfaces are important
• Tool orientation must be controlled continuously
• Dividing the part into separate operations would create excessive blending or alignment problems

Its use should be driven by geometry and manufacturing requirements—not by the assumption that more motion automatically produces a superior part.

Should a Drawing Specify 5-Axis Machining?

In most cases, the drawing should define the required result:

• Dimensions
• Tolerances
• Datums
• Material
• Surface finish
• Threads
• Coatings
• Inspection requirements
• Functional relationships

The manufacturer can then choose an appropriate combination of machinery, fixtures, tooling, and inspection.

Specifying “5-axis machining required” may unnecessarily restrict manufacturing options when the same result could be achieved reliably with 3-axis or 3+2 machining.

There are exceptions. A validated production process, regulated application, customer-approved process plan, or other special requirement may justify specifying the manufacturing route. Otherwise, performance-based requirements usually allow more cost-effective process planning.

Information to Include with a CNC Quote Request

To receive a meaningful comparison, provide:

• Native 3D CAD model
• Controlled 2D drawing
• Material and grade
• Required quantity
• Surface treatment
• General and feature-specific tolerances
• Datum structure
• Critical-to-quality features
• Surface-finish requirements
• Thread specifications
• Inspection and documentation requirements
• Intended function or assembly context when relevant

You can also flag features that concern you, such as deep pockets, compound-angle holes, thin walls, or tight positional relationships.

A capable manufacturer can then evaluate whether 3-axis, 3+2, simultaneous 5-axis, or a combined process offers the best overall result. Early design-for-manufacturing review can also identify avoidable setups and tool-access problems before production begins.

Frequently Asked Questions

Is 5-axis CNC machining always more accurate?

No. Accuracy depends on the entire process, including calibration, workholding, tooling, thermal stability, programming, material behavior, and inspection. Five-axis machining may reduce setup-related variation on complex multi-face parts, but it does not guarantee greater accuracy.

Is 5-axis CNC machining always more expensive?

Its hourly rate and programming requirements may be higher. However, total part cost can be competitive when five-axis machining eliminates fixtures, setups, long-reach tools, handling, or rework.

Can a 3-axis machine produce features on five sides?

Yes. The part can be repositioned and machined in multiple setups. The important considerations are setup time, fixture repeatability, datum transfer, and access to each feature.

What is the difference between 3+2 and simultaneous 5-axis machining?

In 3+2 machining, the rotary axes position the part or tool and then remain stationary while three-axis cutting occurs. In simultaneous 5-axis machining, the linear and rotary axes move together during cutting.

Does having more axes make machining faster?

Not necessarily. For simple parts, added positioning and programming may provide no cycle-time advantage. Five-axis machining becomes valuable when its additional access reduces setups or simplifies complex toolpaths.

Should I request 5-axis machining for a complex-looking part?

Describe the required dimensions, tolerances, surfaces, and inspection criteria first. Let the manufacturer evaluate whether 3-axis, 3+2, or simultaneous 5-axis machining is necessary.

Final Thoughts

The choice between 3-axis and 5-axis CNC machining should be based on the part—not the machine specification alone.

Use 3-axis machining for accessible, prismatic geometry where simple workholding keeps the process efficient. Consider 3+2 machining when angled or multi-sided features can be consolidated into one fixture. Reserve simultaneous 5-axis machining for surfaces and tool-access conditions that genuinely require continuous rotary movement.

The most economical process is the one that achieves the required geometry, tolerances, finish, and inspection results with the lowest total manufacturing risk.
